By Mastervolt

Mastervolt GI 3.5 Isolation Transformer

€1.266,35
€1.266,35
Tax included.

No more galvanic corrosion at the berth: The Mastervolt MASS GI 3.5 completely isolates the on-board electrical system from shore power – protecting your underwater hull while you remain safely grounded. With 3,500 VA of power and modern high-frequency technology, it is 75% lighter and 60% more compact than conventional low-frequency transformers.

Tip: If your power needs grow, simply connect a second MASS GI 3.5 in parallel – this doubles the available AC power to 7 kW / 32 A without the need for new cabling.
brand: Mastervolt
Availability: Low stock
SKU: OB-BB-88000355
Product group:
category:
electrical system

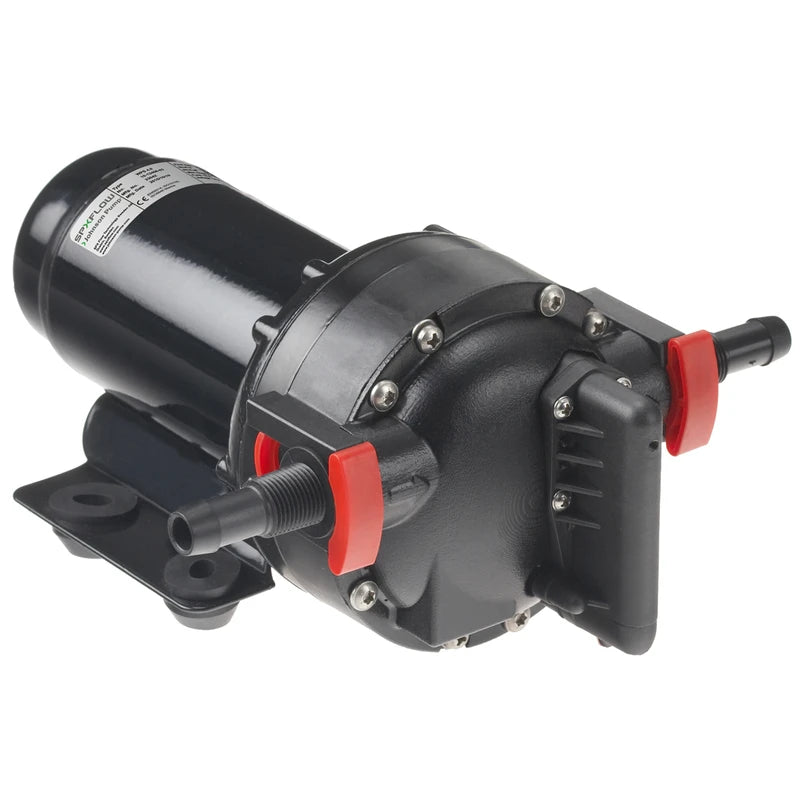

Johnson PumpJohnson Aqua-Jet WPS 5.2 Pump 24V/2.8bar/20L
Johnson Aqua-Jet WPS 5.2 Pumpe 24V/2
NAUTICclean CNX 20 Keramik Schutzschampoo 1 Ltr
NAUTICcleanNAUTICclean CNX 20 Ceramic Protection Shampoo 1 Liter
Mastervolt GI 3
€1.266,35
€1.266,35

  • Galvanic isolation permanently protects metal hull parts from electrochemical corrosion
  • Integrated soft start reduces inrush current peaks and protects the onboard power supply
  • Wide input range 90–255 V / 45–65 Hz – can be used worldwide with almost any shore power supply
  • Parallel connection of multiple devices for higher capacities (e.g. 2 × 3.5 kW = 7 kW)
  • High-frequency technology: quiet, no hum, no vibration – no damping elements required
  • LED status display for load and overload, plus remote control option directly on the housing

Rated power 3,500 VA
Input voltage 90–255 V AC
Input frequency 45–65 Hz
Output voltage 90–255 V AC
Output frequency 45–65 Hz
Rated current 16 A @ 230 V AC
Technology High-frequency isolation transformer
Soft start Integrated
Parallel connection Possible (e.g., 2 × 16 A = 32 A / 7 kW)
Housing Aluminum, robust
Mounting position Wall or floor, any position
Cable entry PG glands with strain relief
Status indicator LED (Load / Overload)
Remote control Yes
Weight advantage 75% lighter than low-frequency transformers
Size advantage 60% more compact than low-frequency transformers
