By Johnson Pump

Johnson Lever Pump Under-Deck Mount 1 1/2"

€152,45
€152,45
Tax included.

If the power fails, your bilge will still run dry: The Johnson Pump Viking is a robust diaphragm hand bilge pump that works reliably regardless of the boat's electrics. It can be mounted behind walls, through the deck or on bulkheads and pumps up to 90 liters per minute – enough to stay on top of things even in critical situations.

Tip: Before the season, check the diaphragm for cracks and keep a spare diaphragm on board – in an emergency, a quick change is invaluable.
brand: Johnson Pump
Availability: Low stock
SKU: OB-BB-70-50005
Product group:
category:
equipment

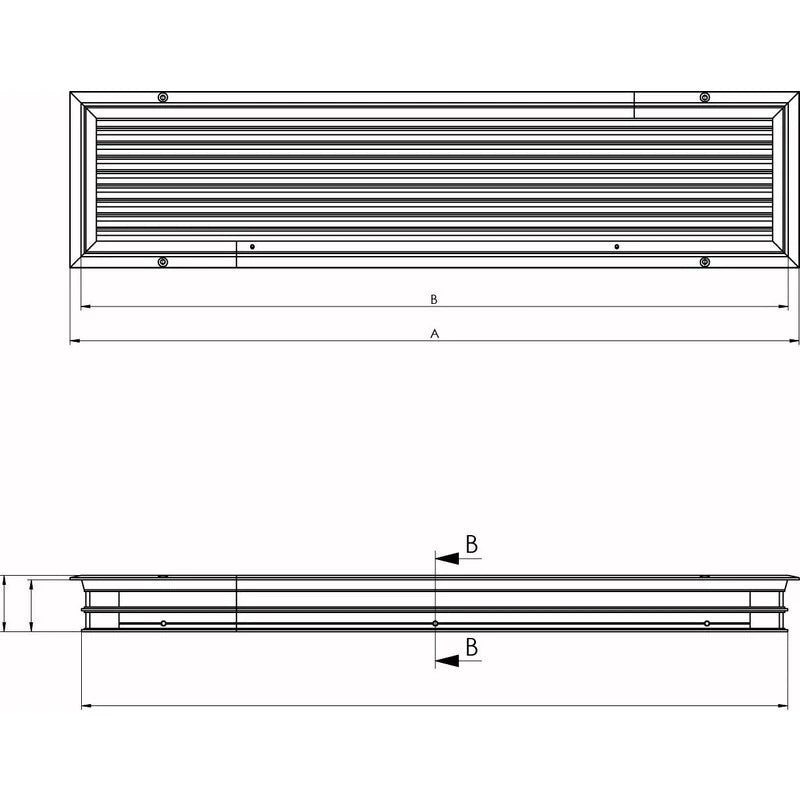

VetusVetus Louvred Vent ASVREC20, rectangular
Vetus Lamellengitter Belüfter ASVREC20

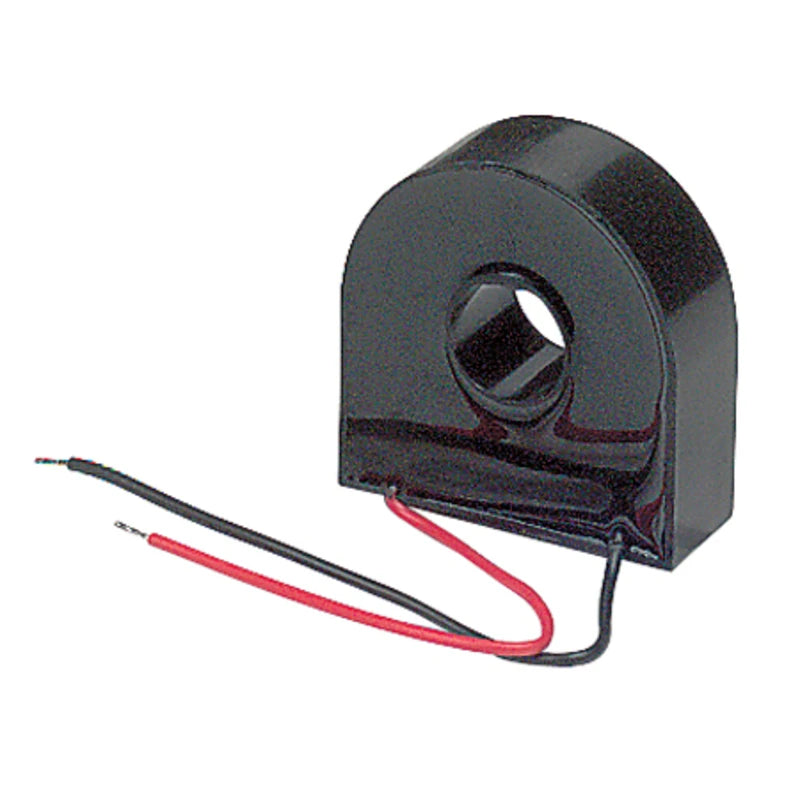

BEP Stromwandler AC Digitales Messgerät
BEPBEP Current Transformer AC Digital Meter
Johnson Handlenzpumpe U.-Deckmont 1.1/2'
€152,45
€152,45

  • Independent of onboard power – also works in the event of a total power failure
  • High pumping capacity up to 90 l/min (at 100 strokes/min) for fast bailing
  • Large valve openings also allow pumping out of toilet wastewater
  • Maximum suction height of 4 m – flexible use in the hull
  • Two installation options: below deck, bulkhead or deck penetration possible
  • Compact diaphragm technology for low-maintenance, long-lasting operation

Type Diaphragm Hand Bilge Pump
Connection 1½"
Mounting Type Below deck, bulkhead mounting, deck penetration
Diameter 164 mm
Handle Length 285 mm
Width 253 mm
Height 133 mm
Weight 2 kg
Flow rate at 60 strokes/min 54 l/min (14.5 GPM)
Flow rate at 80 strokes/min 72 l/min (19 GPM)
Flow rate at 100 strokes/min 90 l/min (24 GPM)
Displacement per stroke 0.9 l (at 1 m suction height)
Max. Suction Height 4 m

Johnson Pump

Gewicht (ca.): 2.0 kg
