By BEP

BEP Current Transformer AC Digital Meter

€26,68
€26,68
Tax included.

Measure what's really flowing on board: The BEP CT-10-3 is the suitable current transformer for the BEP AC System Monitor (ACSM) and precisely converts AC currents up to 150 A into an evaluable signal. Compactly built, it can be integrated into control panels and distribution boxes to save space.

Tip: When installing, ensure that only one conductor (phase) is passed through the opening of the current transformer – for a two-wire system, a separate CT-10-3 is required for each conductor.
brand: BEP
Availability: Low stock
SKU: OB-BB-CT-10-3-BEP
Product group:
category:
electrical system

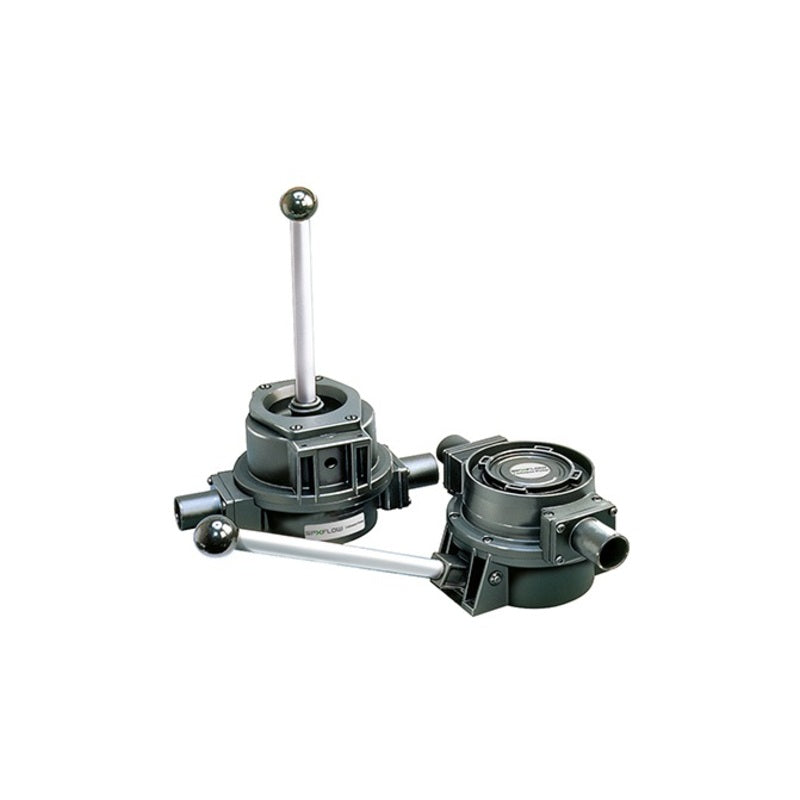

Johnson PumpJohnson Lever Pump Under-Deck Mount 1 1/2"
Johnson Handlenzpumpe U.-Deckmont 1.1/2'

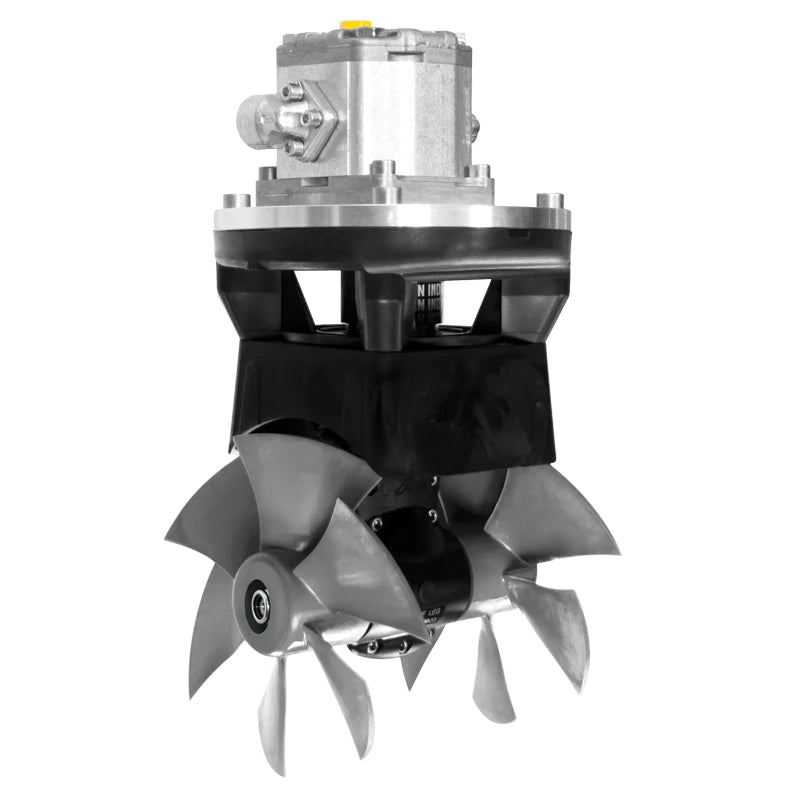

MAXPOWER Hydr. Bugstrahlruder CT125 HYD Ø185
MaxpowerMAXPOWER Hydraulic Bow Thruster CT125 HYD Ø185
BEP Stromwandler AC Digitales Messgerät
€26,68
€26,68

  • Measures AC currents up to 150 A AC – for typical on-board systems with shore power or generator
  • Compact design (37.5 × 39.2 × 13.7 mm) for installation in confined switch panels
  • Hole size 12 mm – suitable for common cable cross-sections
  • Comes with a CT-10-3 current transformer with the ACSM
  • For two-wire systems: simply reorder a second CT-10-3

Type CT-10-3
Max Current 150 A AC
Dimensions 37.5 × 39.2 × 13.7 mm
Hole size 12 mm
Part Number (Included with ACSM) 80-600-0023-00
Application AC System Monitor (BEP ACSM)
