By Blue Sea

Blue Sea Automatic Charging Relay ML-ACR 24 V DC 5

€324,34
€324,34
Tax included.

Two battery banks, one smart relay: The Blue Sea ML-ACR automatically connects your house and starter batteries for charging and reliably separates them during discharge – so you'll never again be stuck with a dead starter battery. The Magnetic Latch (ML) technology maintains the switch state permanently with minimal power consumption, and the included Contura manual switch gives you full manual control at all times.

Tip: Always use the manual switch's Lock-Off function during maintenance work on the onboard electrical system – this mechanically locks the relay and prevents it from accidentally closing, even if voltage is inadvertently present.
brand: Blue Sea
Availability: Low stock
SKU: OB-BB-7623-BSS
Product group:
category:
electrical system
VetusVetus Rubber Bearing with Brass Sleeve 40mm
Vetus Gummilager mit Messingmantel 40mm

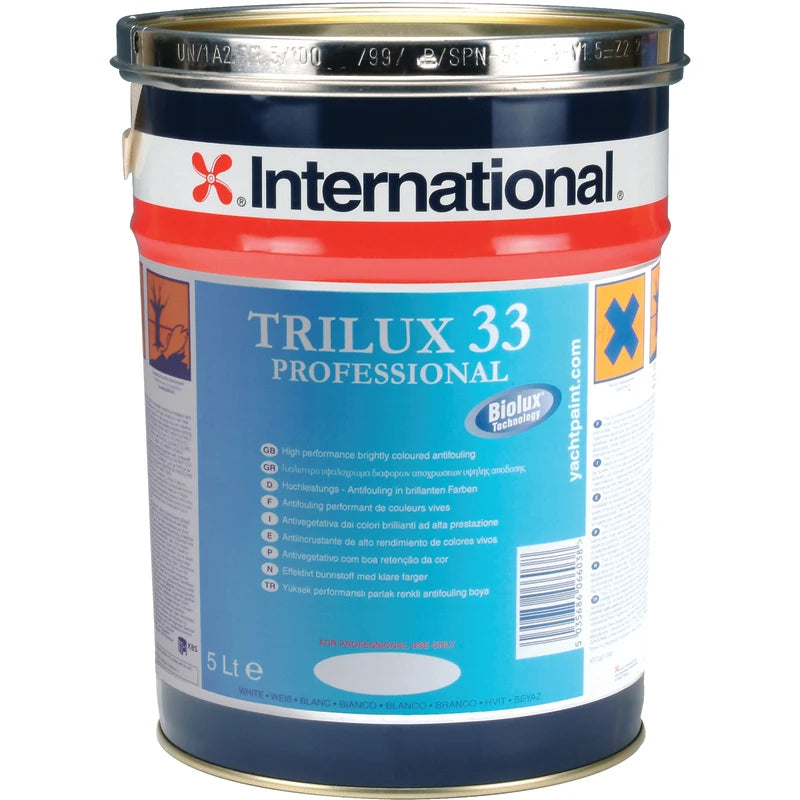

International Trilux 33 schwarz 5 Ltr.
International YachtfarbenInternational Trilux 33 Black 5 Liters
Blue Sea Automatisches Laderelais ML-ACR 24 V DC 5
€324,34
€324,34

  • Automatic combining when charging, automatic separation when discharging – protects the starter battery
  • 500 A continuous rating for high-output alternators and large battery banks
  • Magnetic Latch (ML) – extremely low power consumption in both ON and OFF states
  • Dual Sensing detects the charge status of both battery banks independently
  • Start Isolation (SI) and Engine Isolation (EI) configurable to protect sensitive electronics
  • LED output for remote display of switch status, incl. Contura remote switch PN 2146

Voltage 24 V DC
Continuous Rating 500 A
Relay Technology Bi-Stable Magnetic Latching Relay (ML)
Function Automatic Charging Relay (ACR)
Sensing Dual Sensing (both battery banks)
Configuration Options Start Isolation (SI), Engine Isolation (EI)
Control Manual Contura Switch Incl., Lock-Off Feature
Remote Control Contura Switch PN 2146 (ML-Series), included in scope of delivery
LED Output Yes, for remote indication of switch state
Contact Material Silver Alloy
Terminal Studs 3/8″-16 Tinned Copper Studs, Length 22 mm (7/8″)
Label Recesses Yes, for circuit identification

Blue Sea
