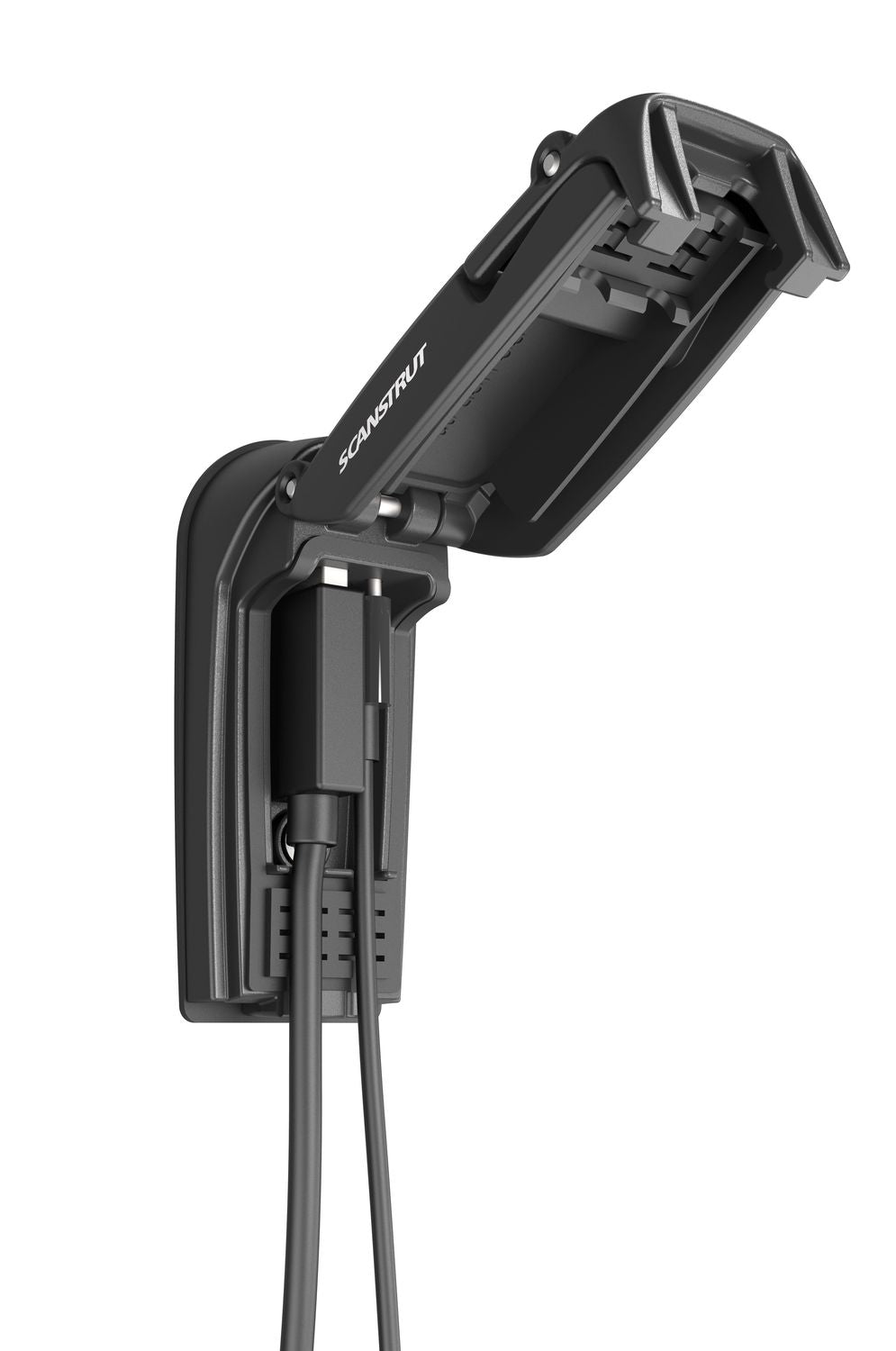

Scanstrut ROKK USB socket SC-USB-02 Input 12/24V Output 2x USB-A 2x2.1A Waterproof according to IPX6

Splashproof (IPX4) USB-A socket, specifically designed for marine applications and charges up to three times faster than conventional USB charging ports.

The USB socket allows you to charge up to two devices, such as smartphones, tablets, or chartplotters, in all weather conditions. The spring-loaded IPX4-rated cover effectively protects the socket from water. The housing is made of robust and UV-resistant plastic, the hinge and spring are made of stainless steel (AISI 316), and all internal contacts are made of a nickel-plated copper alloy.

Specifications:

• IPX4 waterproof when the cover is closed
• UV-resistant plastic
• Hinge and spring made of AISI 316 stainless steel
• USB-A
• Input voltage 6 - 30 V DC (12/24 Volt system)
• Output voltage: max. 5 volts
• Total charging current: 4.2 A, 2.1 A per socket
• Red LED running light

Dimensions (assembled):
Width: 39.0 mm
Height 94.0 mm
Depth 29.0 mm

Installation dimensions:
Borehole diameter: 29.0 mm
Wall thickness: max. 25 mm
