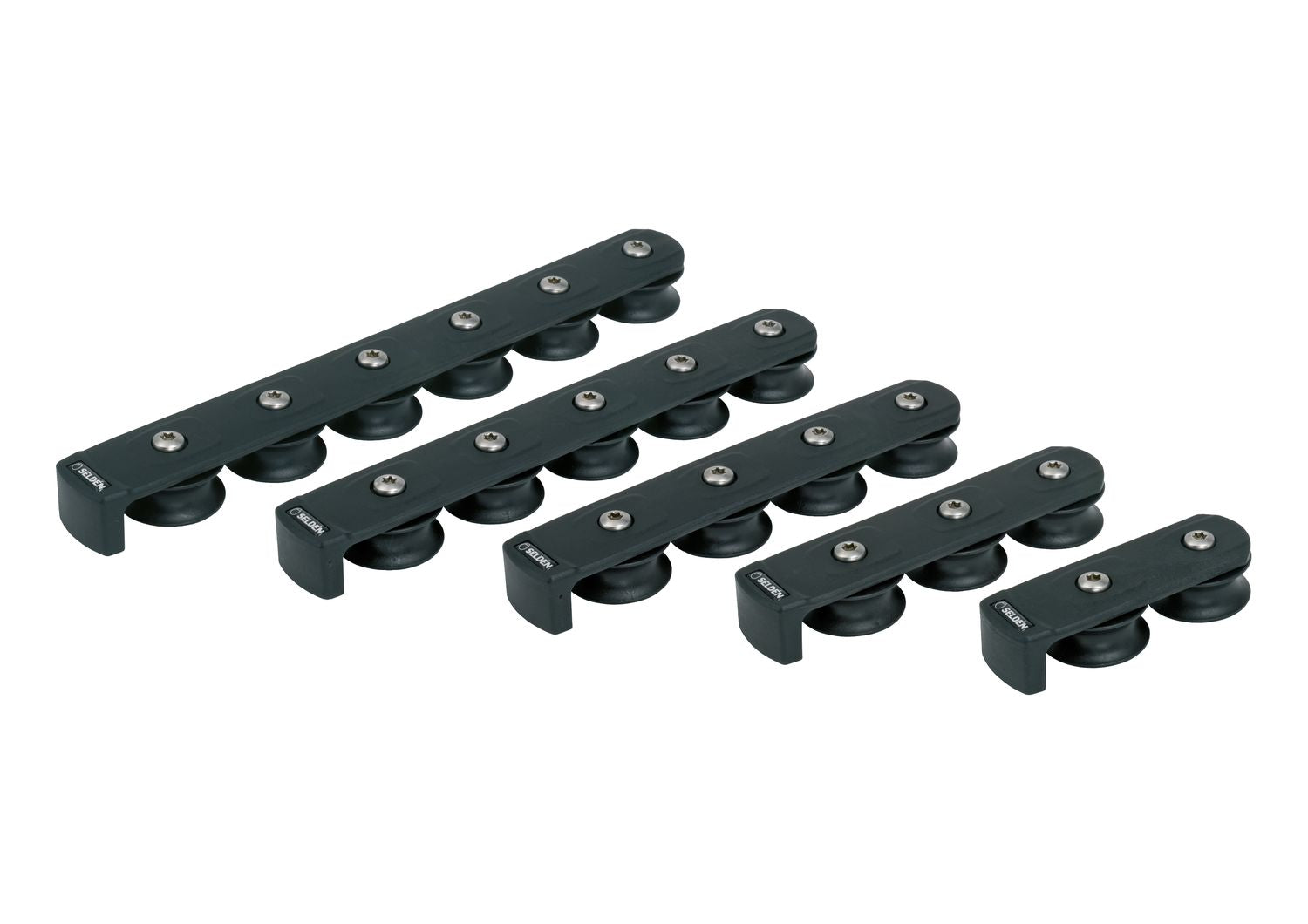

Seldén Deck Organizer Type 40
The acetal discs have ball bearings that absorb the lateral forces of the lines, which enter the organizer at an angle. This reduces friction to a minimum, making sail setting and trimming quick and easy.
Up to two organizers can be mounted one above the other on a slightly curved surface. The supports for the deck organizers are made of fiberglass-reinforced plastic.
| execution | Hole spacing mm | Working load kg* | Breaking load kg* | max. line mm | Assembly with |

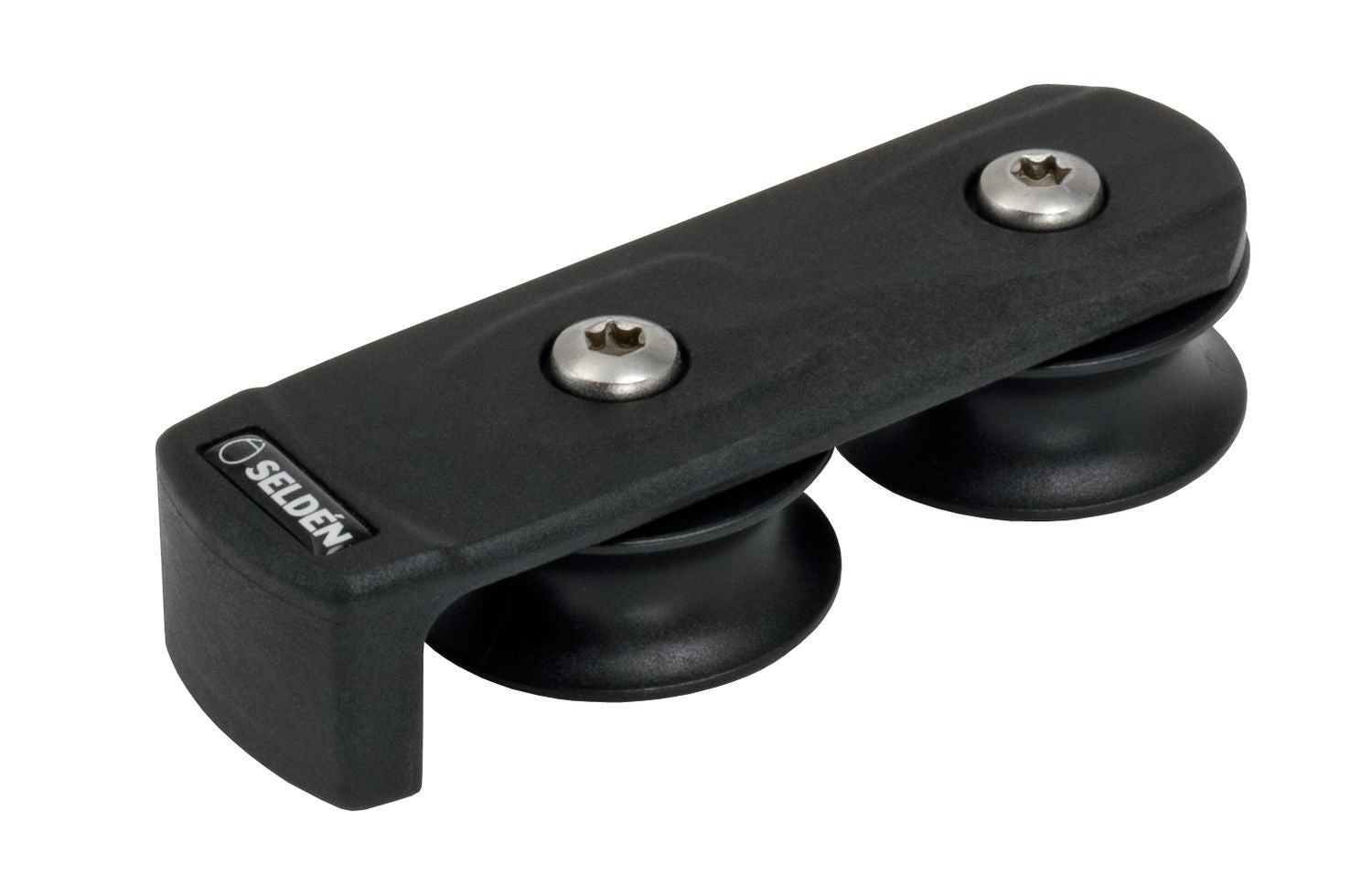

| 2 discs | 47 | 700 | 1400 | 14 | 2x M6** |

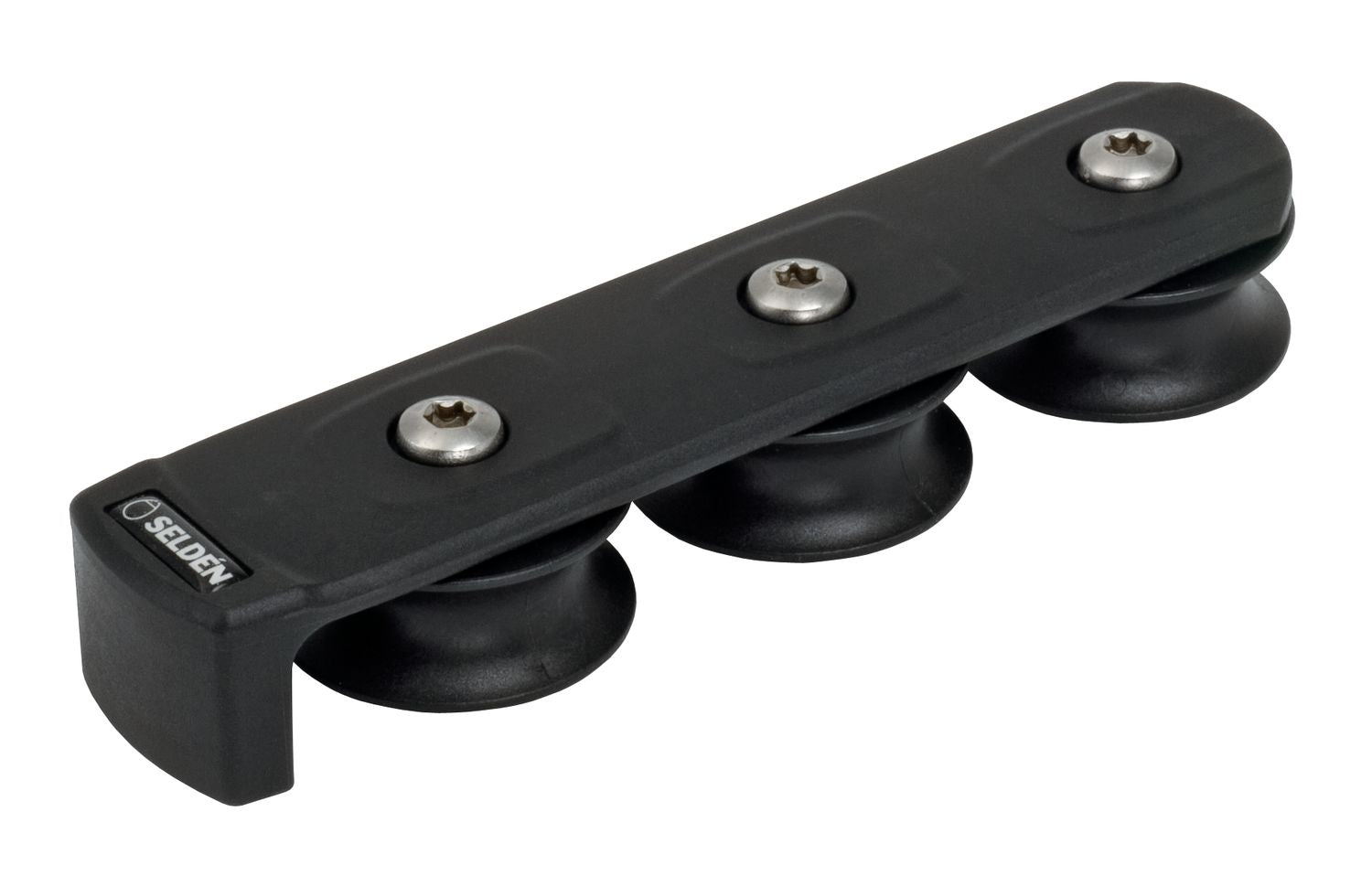

| 3 slices | 47 | 700 | 1400 | 14 | 3x M6** |

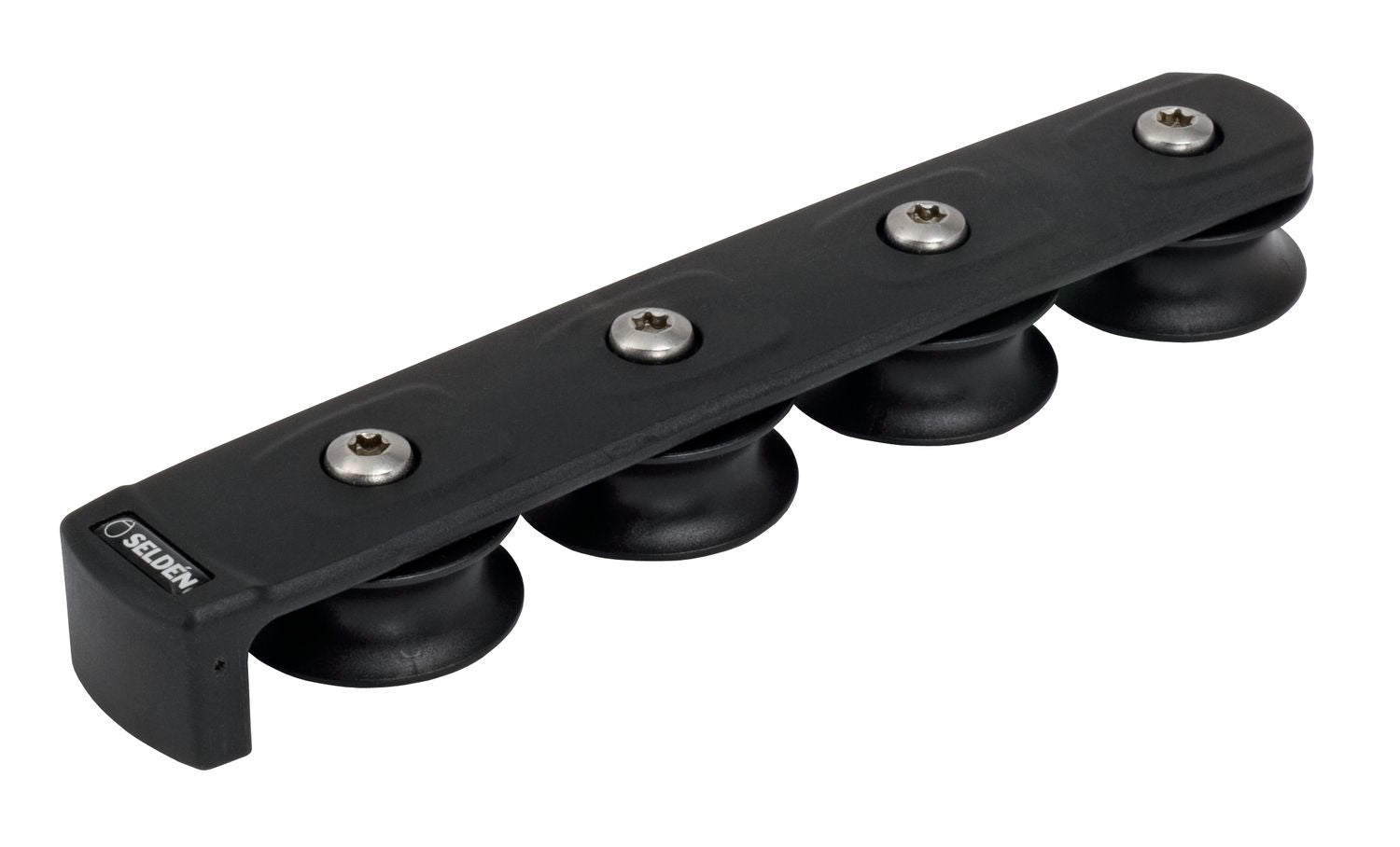

| 4 slices | 47 | 700 | 1400 | 14 | 4x M6** |

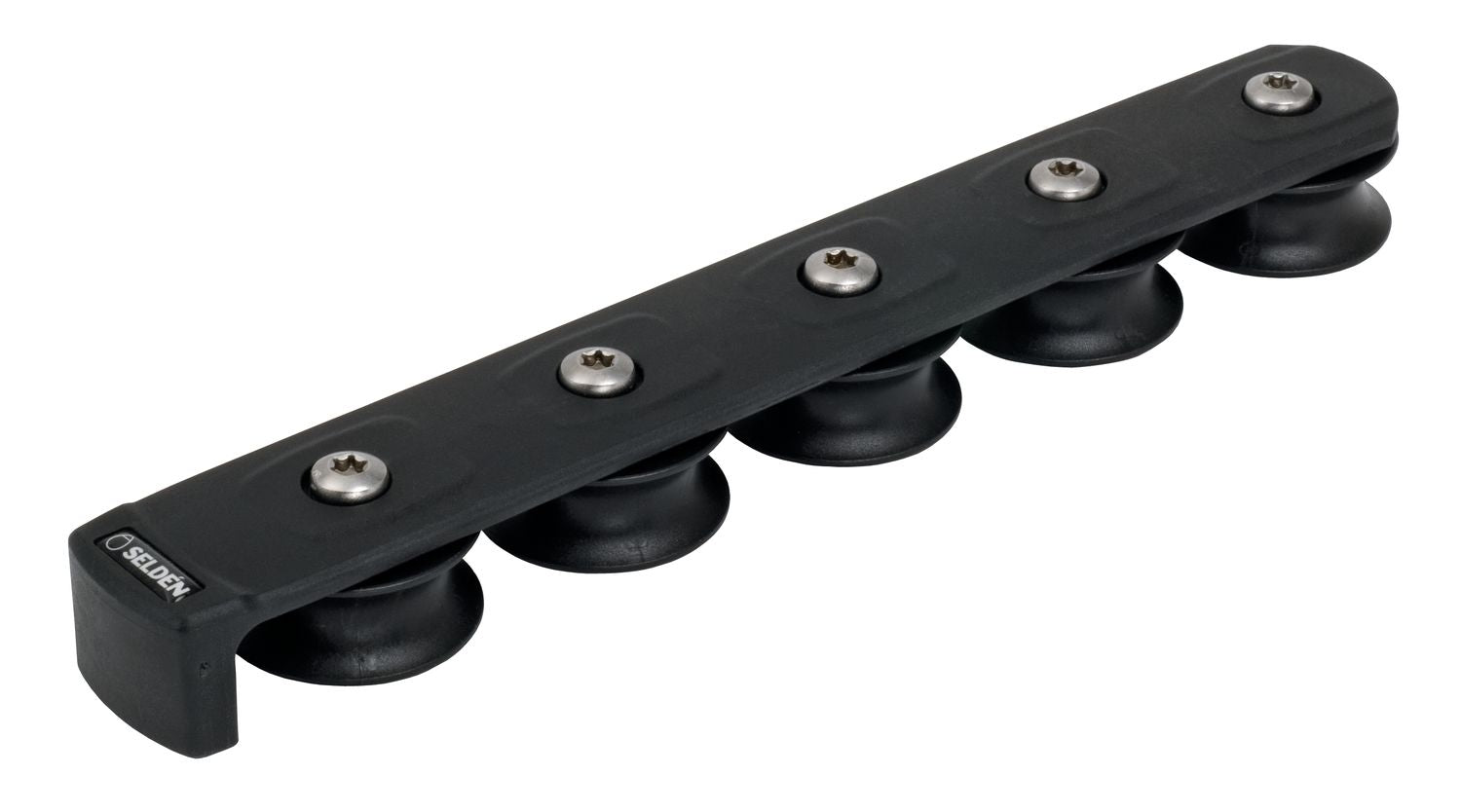

| 5 slices | 47 | 700 | 1400 | 14 | 5x M6** |

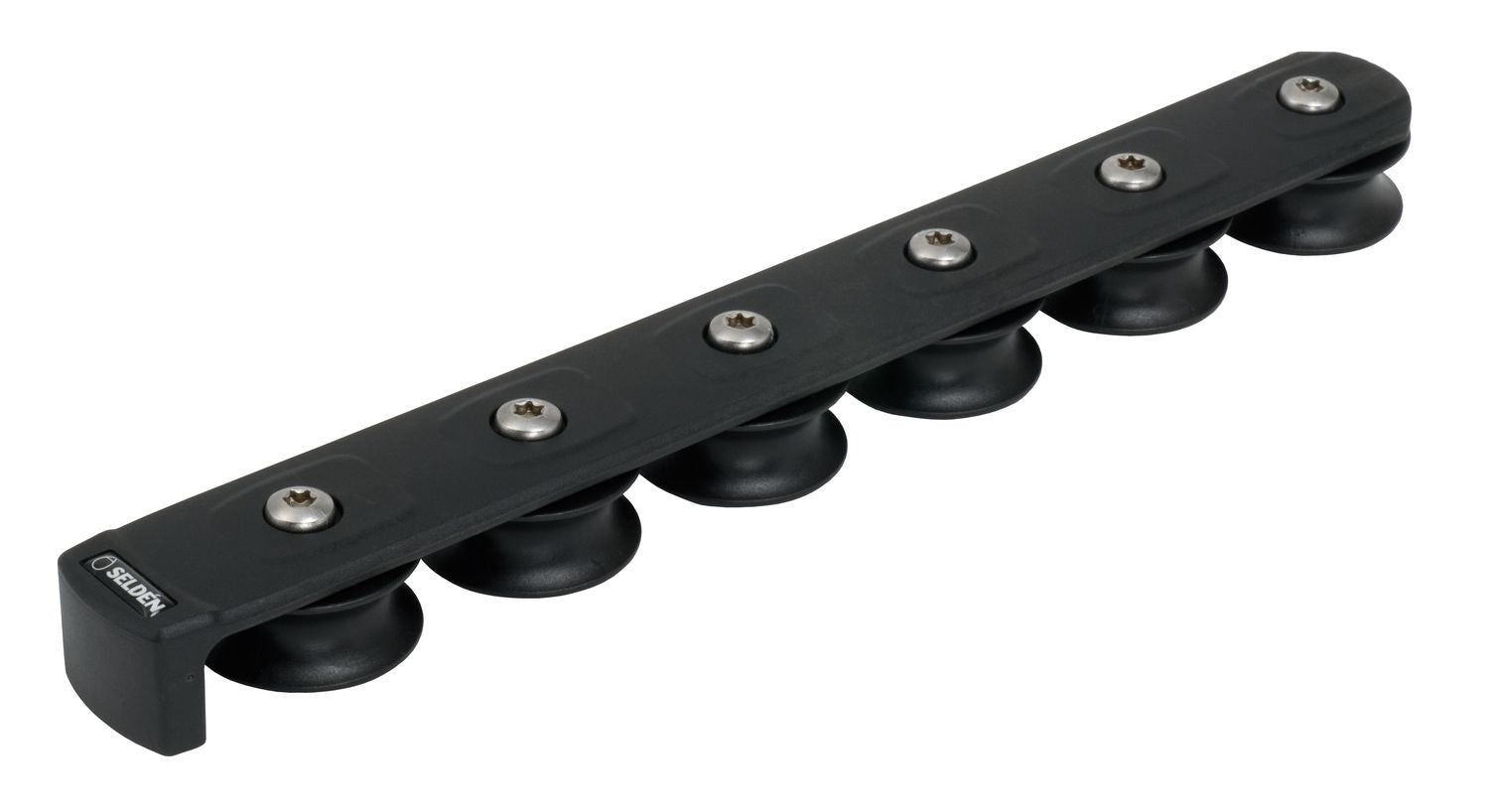

| 6 slices | 47 | 700 | 1400 | 14 | 6x M6** |
* When organizers are mounted one above the other, the maximum working load and breaking load of the top-mounted organizer is reduced by 50%.
** Screws for mounting are not included.
Couldn't load pickup availability
The acetal discs have ball bearings that absorb the lateral forces of the lines, which enter the organizer at an angle. This reduces friction to a minimum, making sail setting and trimming quick and easy.
Up to two organizers can be mounted one above the other on a slightly curved surface. The supports for the deck organizers are made of fiberglass-reinforced plastic.
| execution | Hole spacing mm | Working load kg* | Breaking load kg* | max. line mm | Assembly with |
| 2 discs | 47 | 700 | 1400 | 14 | 2x M6** |
| 3 slices | 47 | 700 | 1400 | 14 | 3x M6** |
| 4 slices | 47 | 700 | 1400 | 14 | 4x M6** |
| 5 slices | 47 | 700 | 1400 | 14 | 5x M6** |
| 6 slices | 47 | 700 | 1400 | 14 | 6x M6** |
* When organizers are mounted one above the other, the maximum working load and breaking load of the top-mounted organizer is reduced by 50%.
** Screws for mounting are not included.
