By Victron Energy

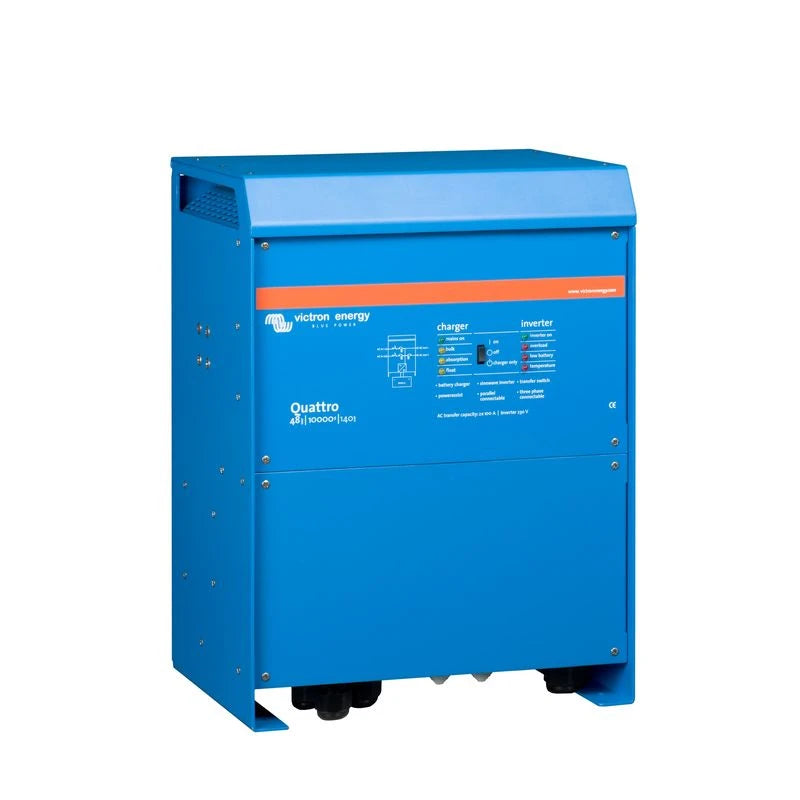

Victron Quattro 48/10000/140-100/100 230V

€3.462,56
€3.462,56
Tax included.

If shore power, generator, and battery are to work together, the Quattro is the right control center on board. It combines a true sine wave inverter with a powerful charger – and is the only one in its class to accept two independent AC inputs, between which it switches automatically. With 10,000 W output power and 140 A charging capacity, it reliably powers even demanding 48 V systems on large yachts or vehicles.

Tip: For complete system monitoring and remote configuration, we recommend combining it with a Victron Cerbo GX and the VRM Online Portal – this way you can always keep an eye on the charge level, input sources, and load distribution.
brand: Victron Energy
Availability: Low stock
SKU: OB-BB-QUA481030010
Product group:
category:
electrical system
Victron Quattro 48/10000/140-100/100 230V
€3.462,56
€3.462,56

  • Two independent AC inputs – automatic switching between shore power and generator without manual intervention
  • True sine wave inverter with 10,000 W continuous power – safe for all sensitive equipment on board
  • 140 A adaptive charger protects the battery and dynamically adjusts the charging characteristic
  • PowerAssist technology prevents overloading of the input source by adding battery capacity
  • Multiple units can be paralleled, and three-phase and split-phase operation is possible
  • VE.Bus interface for seamless integration into Victron systems and remote monitoring

Model Name Quattro 48/10000/140-100/100
Battery Voltage 48 V
Inverter Output Power 10,000 W
Charge Current 140 A
AC Input 1 (max. current) 100 A
AC Input 2 (max. current) 100 A
AC Output Voltage 230 V
Waveform Pure Sine Wave
Number of AC Inputs 2 (independent, automatic transfer switch)
Charge Algorithm Adaptive, multi-stage
Technology VE.Bus
Operating Modes Parallel, Three-Phase, Split-Phase
System Integration VE.Bus compatible

Victron Energy

Gewicht (ca.): 57.0 kg
