By Victron Energy

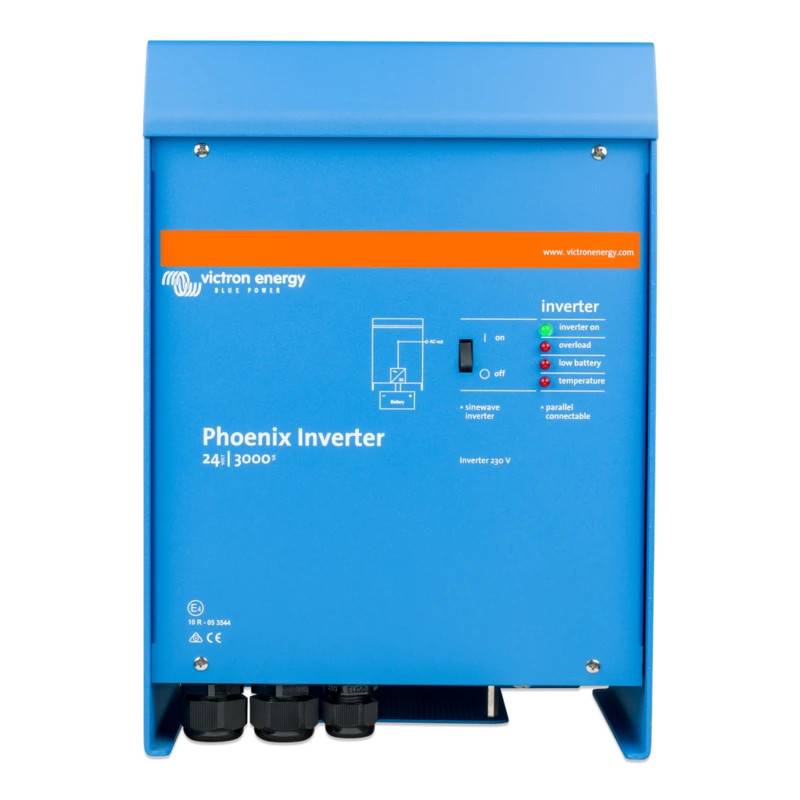

Victron Phoenix Inverter 24/3000 230V VE.Bus

€1.153,11
€1.153,11
Tax included.

Power from the battery that feels like shore power: The Phoenix Inverter 24/3000 converts your 24V on-board voltage into clean 230V sine wave AC voltage – reliably, efficiently, and without compromising output power. Thanks to its hybrid HF technology (SinusMax), it combines compact dimensions with high peak power and is suitable for demanding applications on board, in vehicles, or in off-grid installations.

Tip: Ensure adequately dimensioned battery cables and fuses – with 3000 VA output power, very high currents can briefly flow on the 24V side. Victron recommends the cable cross-sections specified in the relevant installation manual.
brand: Victron Energy
Availability: Low stock
SKU: OB-BB-PIN243020000
Product group:
category:
electrical system

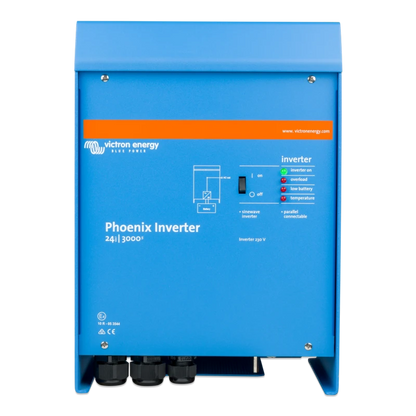

Victron Phoenix Inverter 24/3000 230V VE.Bus
€1.153,11
€1.153,11

  • Pure sine wave output – operates sensitive devices such as frequency converters, medical technology or HiFi systems without problems
  • High efficiency thanks to hybrid high-frequency and mains frequency technology (SinusMax)
  • High peak power for loads with high starting current such as compressors or pumps
  • VE.Bus interface for easy system integration, parallel connection and remote monitoring
  • Parallel operation with up to 6 units possible – scalable up to 30 kVA in 24V systems
  • 3-phase operation possible for industrial and large maritime applications

Battery voltage 24 V
Rated power 3000 VA
Output voltage 230 V AC
Waveform Pure Sine Wave (SinusMax)
Interface VE.Bus
Parallel operation Up to 6 units
3-phase operation Possible
Technology Hybrid HF & Line Frequency Technology
Product family Phoenix Inverter 3000 VA – 5000 VA

Victron Energy

Gewicht (ca.): 19.8 kg
