By Victron Energy

Victron Orion-Tr 48/12-30A (360W) DC-DC Converter

€312,12
€312,12
Tax included.

Clean DC power from the 48V on-board network: The Orion-Tr 48/12-9A reliably converts 48V to 12V – with galvanic isolation that safely separates the on-board network and consumers. With 110W output power and 9A output current, it supplies power-hungry 12V consumers even on boats with modern 48V propulsion systems.

Tip: Mount the device so that the screw terminals point downwards – only then is IP43 protection guaranteed. Connect the remote H/off input directly to the run/stop output of the motor to avoid unintentional deep discharge of the 12V side.
brand: Victron Energy
Availability: Low stock
SKU: OB-BB-ORI481240110
Product group:
category:
electrical system

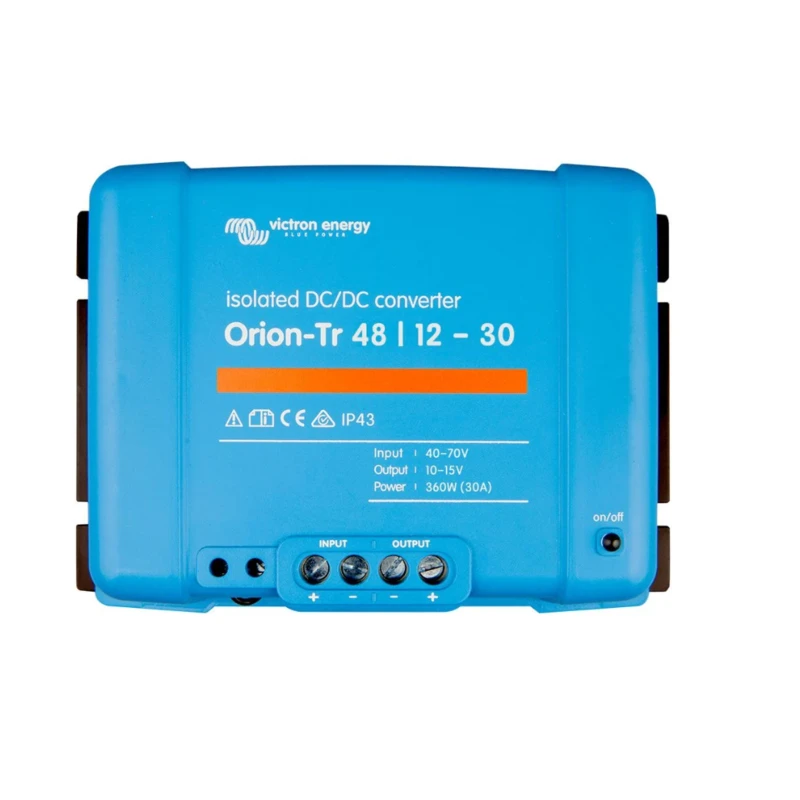

Victron Orion-Tr 48/12-30A (360W) DC-DC Umformer
€312,12
€312,12

  • Galvanic isolation reliably protects both on-board power supply levels from each other
  • Remote on/off switching – no high-current switch needed in the input wiring
  • Short-circuit proof and parallel connectable – unlimited units can be combined for higher output currents
  • Protection class IP43 with correct installation (screw terminals downwards)
  • Screw terminals connectable without special tools – quick installation on board

Input Voltage 48 V
Output Voltage 12 V
Output Current 9 A
Output Power 110 W
Galvanic Isolation Yes
Remote On/Off Yes (H-Off terminal)
Short Circuit Proof Yes
Can be paralleled Yes, unlimited
Protection Category IP43 (terminals down)
Input Fuse Not with 48V model
Connection Screw terminals

Victron Energy

Gewicht (ca.): 1.92 kg
