By Victron Energy

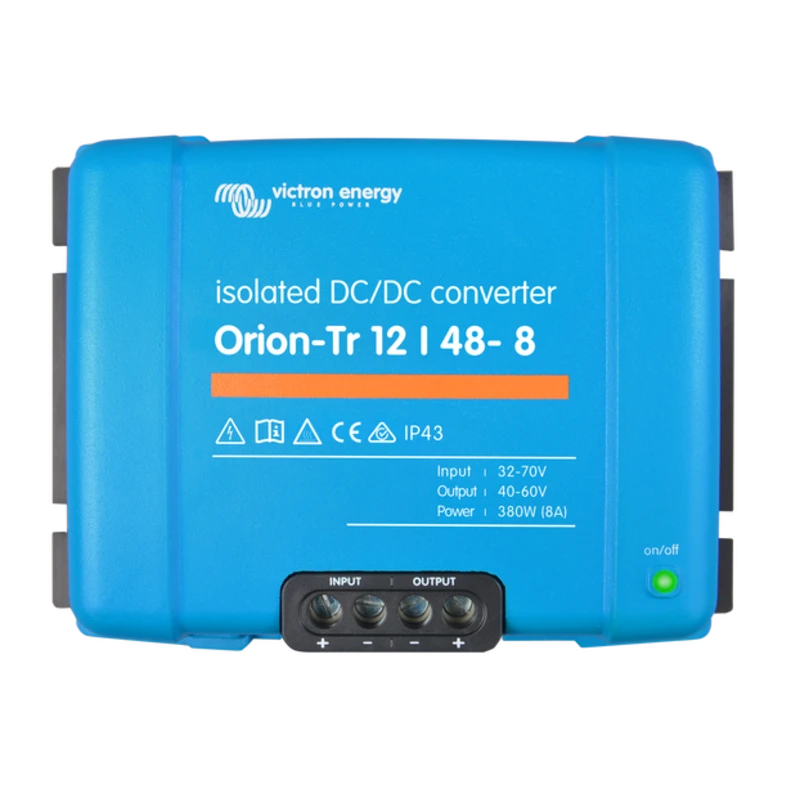

Victron Orion-Tr 12/48-8A (380W)

€243,05
€243,05
Tax included.

Do you want to convert 12V DC power cleanly and with low loss to 48V? The Victron Orion-Tr 12/48-8A does this with galvanic isolation – meaning true electrical separation between input and output – and delivers up to 8A or 380W continuous power. Ideal wherever on board two independent battery circuits need to be safely connected.

Tip: For higher output currents, simply connect several Orion-Tr 12/48-8A in parallel – the devices are designed for this and do not require additional synchronization logic.
brand: Victron Energy
Availability: Low stock
SKU: OB-BB-ORI124838110
Product group:
category:
electrical system
Victron Orion-Tr 12/48-8A (380W)
€243,05
€243,05

  • Galvanic isolation – complete electrical separation of input and output circuits for maximum safety
  • Remote on/off switching – no high-current switch required in the input wiring
  • Unlimited parallel connection – any number of devices can be connected in parallel to scale the output current
  • Short-circuit proof – reliably protects itself and the connected components
  • IP43 protection (screw terminals downwards) – suitable for humid installation environments on board
  • Screw terminals without special tools – fast, uncomplicated installation

Type Galvanically isolated DC-DC converter
Input voltage 12 V
Output voltage 48 V
Output current 8 A
Output power 380 W
Protection class IP43 (screw terminals installed facing downwards)
Input fuse Yes (12 V and 24 V models only)
Remote control Remote On/Off port
Short circuit protection Yes
Parallel connection Yes, unlimited number of units
Connection Screw terminals, no special tools required

Victron Energy

Gewicht (ca.): 1.92 kg
