By Vetus

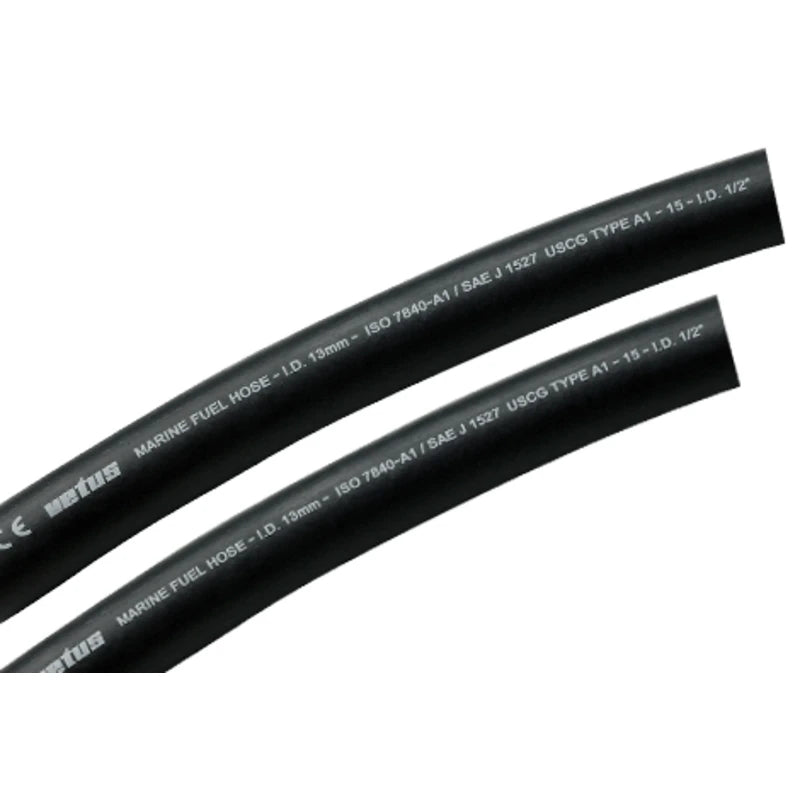

Vetus Fuel Hose ISO7840-marine fuel A1-15

€22,76
€22,76
Tax included.

Meterware: Bitte wähle bei der Bestellung die gewünschte Länge in Metern aus.

When it comes to the safe transport of fuel on board, this Vetus hose sets the standard: it complies with the highest CE standard ISO 7840 grade A1 and passes a 2.5-minute fire test. With exceptionally low permeability of only 15 g/m²/hour, it is particularly suitable for gasoline lines – a real safety gain on any boat.

Tip: When laying the hose, ensure a minimum bending radius of 35 mm to avoid kinks and material fatigue. Secure the hose at regular intervals with hose clamps according to ISO 7840.
brand: Vetus
Availability: In stock
SKU: OB-BB-FHA11510A
Product group:
category:
Engine technology, equipment
Vetus Kraftstoffschlauch ISO7840-marine fuel A1-15
€22,76
€22,76

  • Certified to ISO 7840 Marine Fuel A1-15 – highest CE standard for marine fuel hoses
  • Passes 2.5-minute fire test – maximum permeability 100 g/m²/hour (Class A1)
  • Extremely low permeability of only 15 g/m²/hour – ideal for gasoline lines
  • NBR rubber inside, CR rubber outside – chemical and weather resistant
  • Suitable for gasoline and diesel and can be used as a vent line
  • Sold by the meter up to 76 m in one piece – flexible customization for any installation

Standard ISO 7840 Marine Fuel A1-15
Grade A1 (fire test passed 2.5 minutes)
Permeability 15 g/m²/hour (A1-15), max. 100 g/m²/hour (Class A1)
Inner diameter 10 mm
Outer diameter 18 mm
Minimum bending radius 35 mm
Maximum pressure 17.2 bar
Inner material NBR rubber
Outer material CR rubber
Suitable for Petrol, Diesel, Vent line
Delivery form Sold by the metre
Max. length in one piece 76 m
Former article name FUHA11510

Vetus

Gewicht (ca.): 0.61 kg
