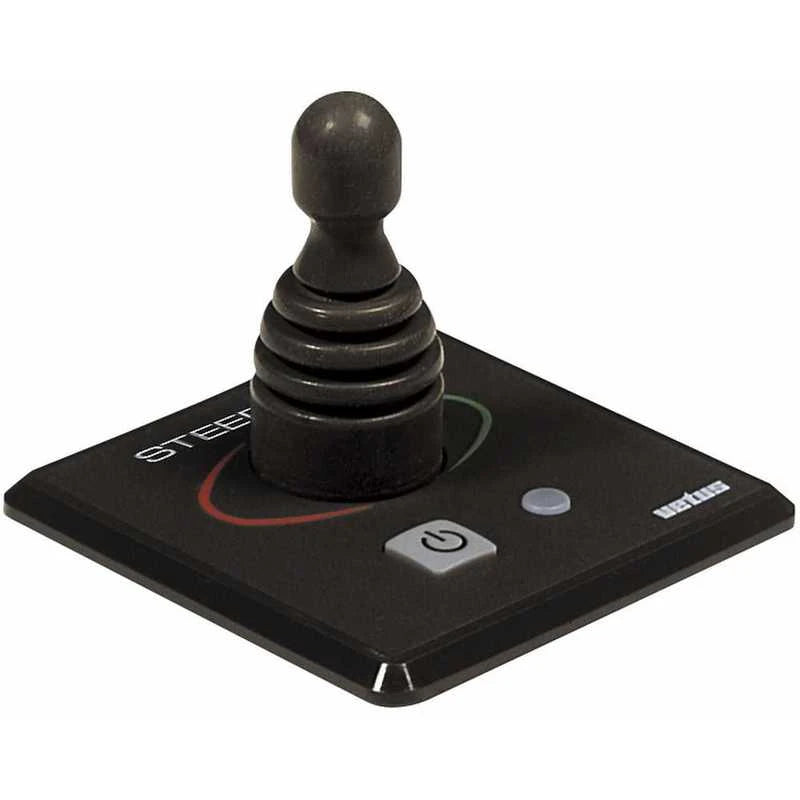

Old Joystick to electro-hydraulic pump EHPA/B
No more steering wheel: With the Vetus Joystick EHPJSTA, you steer your vessel precisely with your fingertip – completely without a conventional steering wheel. In combination with a suitable Vetus electro-hydraulic pump (type EHPA/B), you can replace your previous steering wheel system with a comfortable joystick remote control, which has proven particularly effective in commercial inland and workboats.
Tip: Make sure you plan all necessary components together: electro-hydraulic pump (EHPAR2/BR2/CR2/D or E), hydraulic connection kit, hydraulic steering cylinder, hydraulic lines in the appropriate length, the panel with joystick, and 2 limit switches (type EHPESSET). The joystick is only operational as part of a complete system.
Couldn't load pickup availability
- Replaces the steering wheel with intuitive joystick control – more comfort and an unobstructed view
- Proven concept from commercial inland navigation – robust and tried-and-tested
- Compatible with Vetus electro-hydraulic pumps of type series EHPAR2 / BR2 / CR2 / D / E
- Hydraulic cylinder can be adapted to the respective rudder torque – flexibly applicable
- Remote control possible – ideal for an additional steering station or working position on deck
| Type | EHPJSTA |
|---|---|
| Control type | Joystick remote control |
| Compatible pumps | Vetus EHPAR2 / BR2 / CR2 / D / E |
| Recommended cylinder (example) | Vetus MTC30/75 |
| Limit switches (separate) | Vetus EHPESSET (2 pieces) |
| Typical application area | Commercial shipping, inland navigation, workboats |
Vetus
Gewicht (ca.): 0.4 kg
