By Vetus

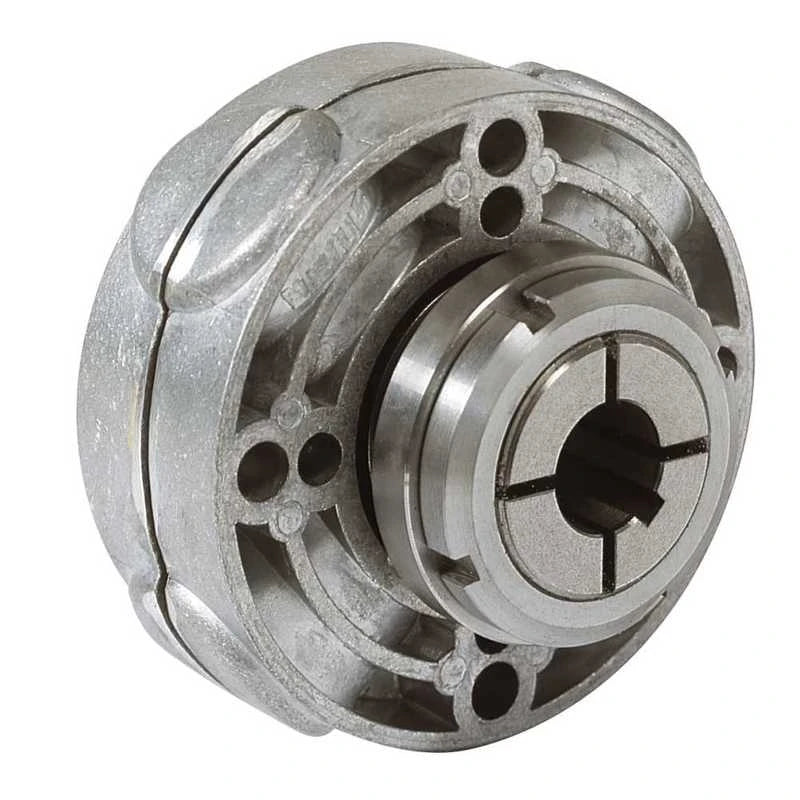

Vetus Flexible Coupling TYPE 6 for 30mm Shaft

€418,85
€418,85
Tax included.

Precisely aligned before the first screw is in place: The Vetus Flexible Coupling Type KO5 (Type 6), thanks to its special tapered clamping hub, ensures 100% concentric mounting – without elaborate alignment. This saves time in the engine room and protects the shaft, gearbox, and bearings from misalignment in the long term.

Tip: When installing, tighten the tapered clamping hub evenly and without impacts – this way, the hub sits perfectly concentrically and can be removed without residue later if necessary.
brand: Vetus
Availability: Low stock
SKU: OB-BB-KO52
Product group:
category:
Engine technology
Vetus Flexible Kupplung TYP 6 für 30mm Welle
€418,85
€418,85

  • Tapered clamping hub guarantees 100% concentric mounting – no readjustment necessary
  • Flexible design dampens vibrations and torque shocks between motor and shaft
  • Cylindrical bore Ø 25 mm with keyway for secure, backlash-free shaft connection
  • Compatible with common gearboxes: Hurth, Velvet Drive, TD, ZF and PRM
  • Connection dimensions 4" and 5" – suitable for many motor-gearbox combinations

Type KO5 (Type 6)
Shaft diameter Ø 25 mm
Bore design Cylindrical bore with keyway
Alternative pilot bore Ø 20 mm (available pre-bored)
Other shaft diameters (series) Ø 25 mm, Ø 30 mm, Ø 35 mm
Connection dimensions 4" and 5"
Centering 100% concentric due to conical clamping hub
Compatible transmissions Hurth, Velvet Drive, TD, ZF, PRM
Brand Vetus

Vetus

Gewicht (ca.): 2.48 kg
