By Vetus

Vetus Flexible Coupling BULLFLEX8 for 30mm Shaft

€904,87
€904,87
Tax included.

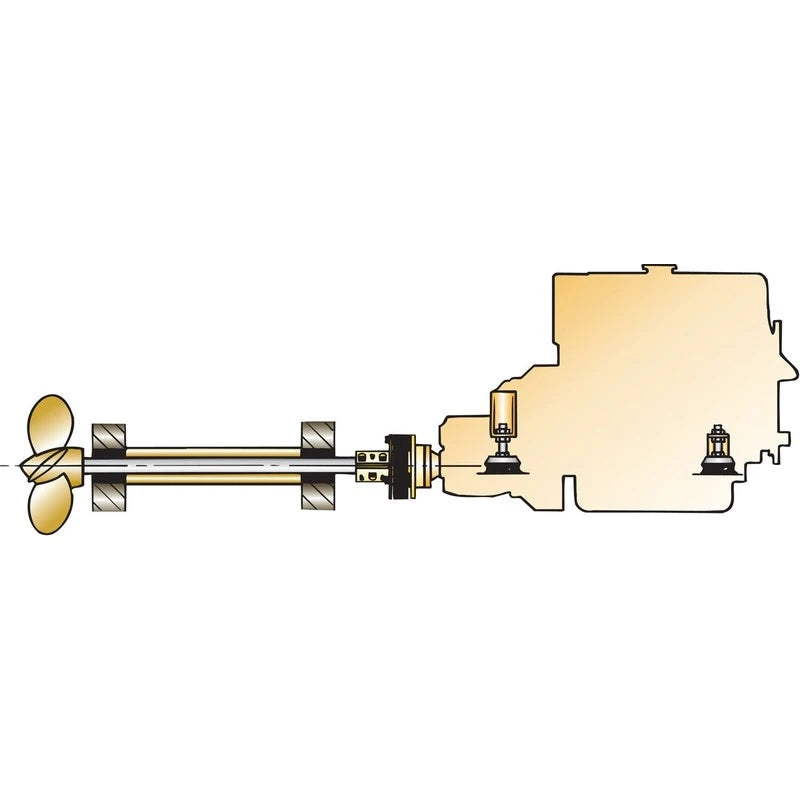

Greater driving comfort thanks to fewer vibrations: The Vetus Bullflex 1 is a specially developed flexible coupling that dampens torsional vibrations between the engine and propeller shaft particularly efficiently. The super-elastic, pre-tensioned rubber element ensures a play-free, noiseless connection - even at low speeds and changing engine loads.

Tip: Vetus supplies suitable mounting material for attachment to the gearbox separately - ask for the appropriate accessories when ordering. The centering ring can be removed if necessary to facilitate installation in confined spaces.
brand: Vetus
Availability: Low stock
SKU: OB-BB-BULFL0830
Product group:
category:
Engine technology
Vetus
€904,87
€904,87

  • Super-elastic rubber element efficiently dampens torsional vibrations – for noticeably smoother engine operation
  • Backlash-free connection between engine and shaft ensures quiet running
  • Axial and radial fail-safe devices protect the connection even in case of overload
  • Angular deviation up to 2° permissible – shaft remains centered even with deviation and in reverse operation
  • Built-in thrust bearing and no conical clamping hub for easy assembly and disassembly
  • 4" connection (models 1, 2 and 4) – suitable for common gearboxes

Model Bullflex 1
Shaft diameter 25 mm
Connection flange 4"
Maximum angular misalignment 2°
Thrust absorption axial and radial
Thrust bearing built-in
Clamping hub no tapered clamping hub
Suitable for V-drives No
Suitable gearboxes (model 32) Hurth, Velvet, TD, ZF, P.R.M.
Brand Vetus

Vetus

Gewicht (ca.): 11.24 kg
