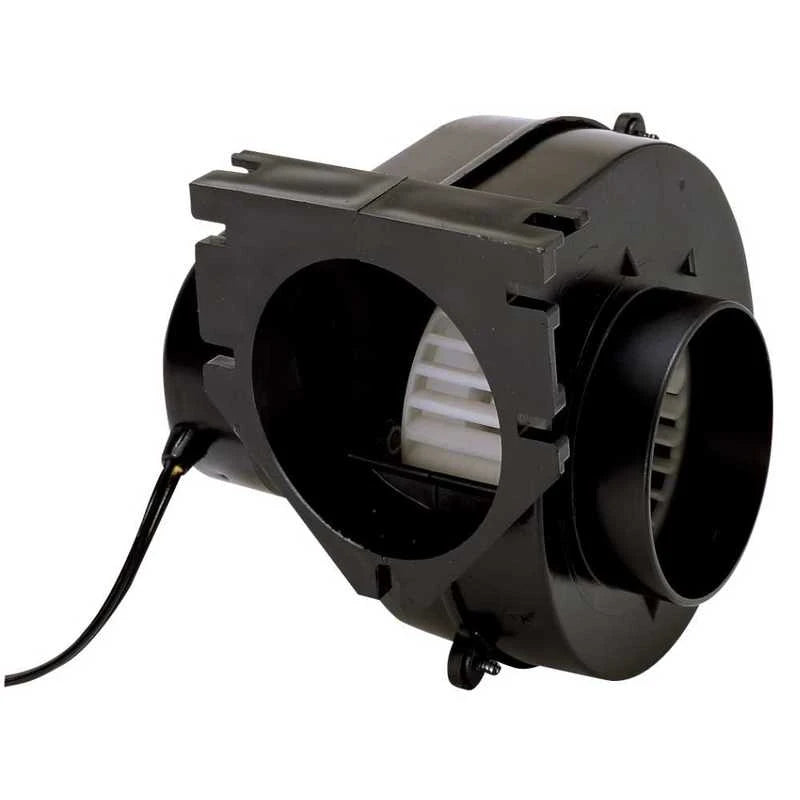

Vetus Exhaust Fan VENT7612A, 12V, OD: 76mm
Regular price
€128,26
Regular price
Sale price
€128,26
Unit price
per
Tax included.
Fresh air where it's needed most: The Vetus VENT76A is a powerful extraction fan for demanding onboard areas. Thanks to ignition protection and IP67 protection class, it works safely and reliably even in damp or explosion-hazardous areas such as the engine room. With a flow rate of 4 m³/min, it ensures effective ventilation – compact and marine certified.
Tip: As a suitable connection hose, Vetus recommends the optional hose type VENTKITA – this results in a clean, factory-matched installation.
Couldn't load pickup availability
Regular price
€128,26
Regular price
Sale price
€128,26
- Ignition-protected and IP67 – safe in damp and explosive areas such as the engine room
- Meets ISO 9097 Marine Standard – tested quality for onboard use
- High flow rate of 4 m³/min for rapid ventilation in confined spaces
- Delrin impeller – corrosion-resistant and durable in marine environments
- In-line installation possible – includes mounting plate and connection flange
- Available in 12 V and 24 V – suitable for most onboard power systems
| Model | VENT7612A (12 V) |
|---|---|
| Type | VENT76A |
| Voltage | 12 V |
| Current consumption | 8 A |
| Flow rate | 4 m³/min |
| Generated air pressure | 57 mm H₂O |
| Connection diameter (inner) | Ø 76 mm |
| Impeller material | Delrin |
| Protection class | IP67 |
| Ignition protection | Yes |
| Standard | ISO 9097 Marine Standard |
| Optional accessories | Connection hose VENTKITA |
Vetus
Gewicht (ca.): 1.44 kg
