By Veratron

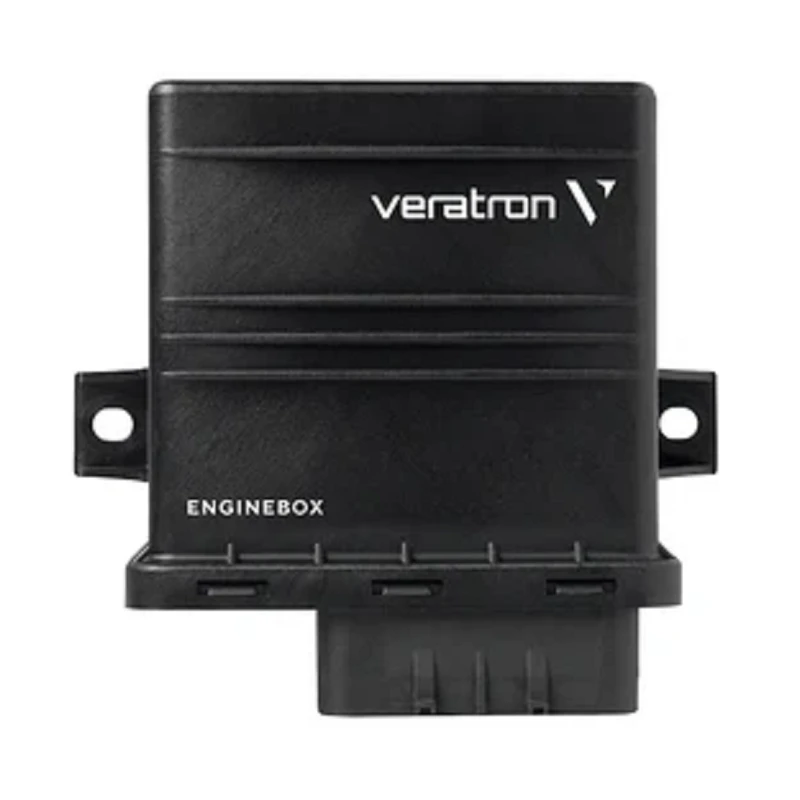

Veratron VDO Engine Control for 2 Engines

€599,50
€599,50
Tax included.

All important engine data for both drives at a glance: The Veratron VDO Enginebox converts sensor and J1939 signals from your engines into NMEA 2000, thus supplying your onboard data network with comprehensive engine information. Compactly built, splash-proof according to IPX9k and suitable for 12V and 24V electrical systems, it is the central interface for professional engine monitoring on motor yachts and workboats.

For connecting older analogue sensors (e.g. VDO resistance sensors), use the appropriate 0–400 Ω inputs – this allows existing sensors to continue to be used without replacement.
brand: Veratron
Availability: Low stock
SKU: OB-BB-A2C1767000001
Product group:
category:
Navigation & Audio
Veratron VDO Motorensteuerung für 2 Motoren
€599,50
€599,50

  • Monitors 18 parameters – from engine speed and coolant temperature to fuel level and transmission oil pressure
  • J1939 to NMEA 2000 Gateway: integrate modern engine electronics directly into the onboard data network
  • Analog to NMEA 2000 Gateway: continue using classic sensors (0–400 Ω, 4–20 mA, 0–5 V)
  • Designed for single and twin engine systems – one device, two configurations
  • IPX9k protection class – high-pressure water jet tested, ideal for demanding onboard conditions
  • Status LED for quick diagnostics, compact housing for space-saving installation

Application Engine control / Data gateway for 1 or 2 engines
Nominal Voltage 12 V / 24 V
Protection Class IPX9k
Connectivity NMEA 2000, SAE J1939
Connections 2× J1939, 1× M12 5-pin NMEA 2000
RPM Inputs 2× 0–4 kHz
Resistance Inputs 8× 0–400 Ω
Current Inputs 2× 4–20 mA
Voltage Inputs 2× 0–5 V
Gateway Function Analog → NMEA 2000, J1939 → NMEA 2000
Configuration Single and twin engine system
Monitored Parameters Rudder, Battery, Engine RPM, Exhaust Gas Temperature, Speed, Trim, Wastewater Level, Sea Temperature, Freshwater Level, Fuel Level, Oil Temperature, Coolant Temperature, Air Pressure, Engine Hours, Boost Pressure, Gear Oil Pressure, Engine Oil Pressure, Air Temperature
Status Indication Status LED

Veratron

Gewicht (ca.): 0.63 kg
