By Veratron

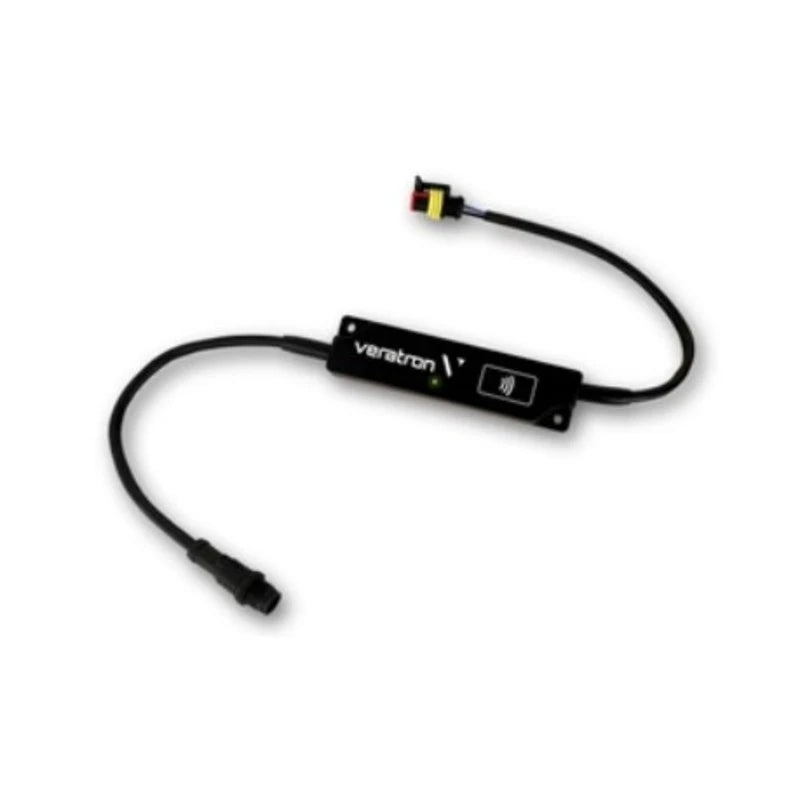

Veratron VDO LinkUp Resistive to NMEA 2000

€158,29
€158,29
Tax included.

No more oversized converter effort: The VDO LinkUp Gateway converts the signal from resistive level and tank sensors directly into NMEA 2000 – compact, with minimal cabling and configurable via smartphone. You mount it exactly where the sensor is located, and all tank data is neatly integrated into your onboard network.

Tip: Use the smartphone app to calibrate the sensor curve directly after installation – this allows you to precisely adapt the gateway to your tank geometry without leaving the helm.
brand: Veratron
Availability: Low stock
SKU: OB-BB-B00042201
Product group:
category:
Navigation & Audio
Veratron VDO LinkUp resistiv auf NMEA 2000
€158,29
€158,29

  • Converts resistive sensor signals loss-free to NMEA 2000 – no oversized converter needed
  • Power supply directly via the NMEA 2000 bus – no separate wiring required
  • Contactless configuration via smartphone – without additional hardware or costly tools
  • Sensor curves individually adjustable – for precise display of different tank and sensor types
  • Alarm limits adjustable and alarm transmission via NMEA 2000
  • Approved for the engine compartment according to ISO 8846:1990 – safe even in explosive environments

Type Resistive to NMEA 2000 Gateway
Input Signal Resistive Sensor
Output Protocol NMEA 2000
Power Supply Via NMEA 2000 bus (no external power)
Configuration Contactless via smartphone
Sensor Curves Individually adjustable
Alarms Configurable, transmission via NMEA 2000
Engine Compartment Approval ISO 8846:1990
Installation Plug-and-Play, decentralized at the sensor

Veratron

Gewicht (ca.): 0.28 kg
