By Yacht Devices

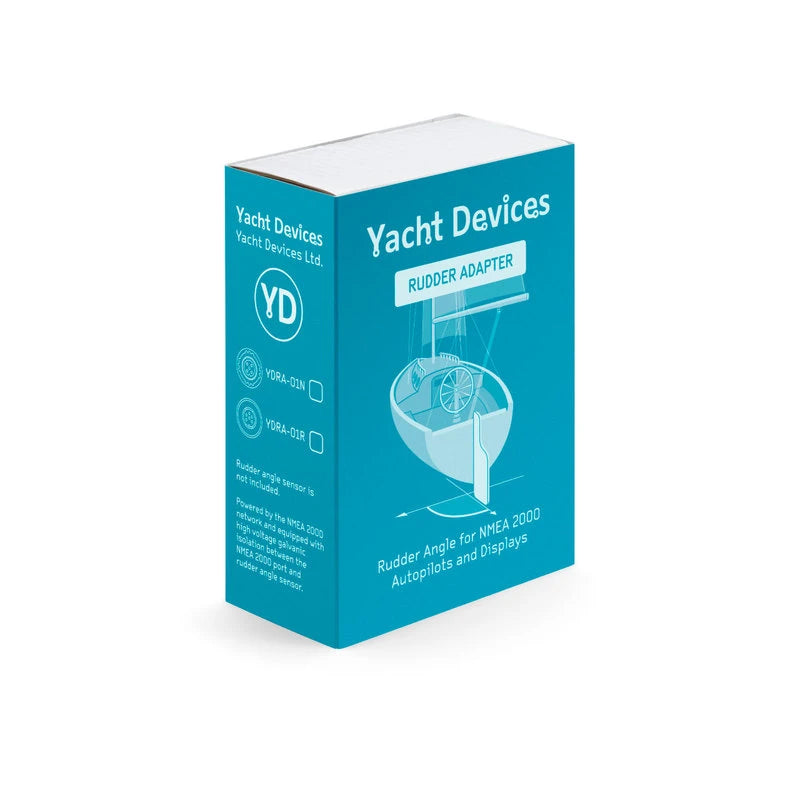

UAB NMEA 2000 Rudder Adapter, NMEA2000

€242,78
€242,78
Tax included.

Your existing rudder angle sensor already provides reliable data – the YDRA-01N brings it into the NMEA 2000 network. The Yacht Devices adapter connects resistive rudder angle sensors as well as sensors with 0-5V output to the NMEA 2000 bus, thereby providing autopilots, chartplotters, and other displays with precise rudder angle data. No modifications to the existing sensor, no special software needed.

Tip: Configuration and firmware updates are conveniently done via the Micro-SD card – a simple text file with the desired settings is all it takes. This way, the adapter can be updated later without interfering with the network.
brand: Yacht Devices
Availability: Low stock
SKU: OB-BB-YDRA-01N
Product group:
category:
Navigation & Audio
UAB NMEA 2000 Ruder Adapter
€242,78
€242,78

  • Compatible with European standard (10–180 Ω), American standard (33–240 Ω) and 0–5V output sensors – no sensor change needed
  • 7-point calibration compensates for non-linearity and line-induced deviations – no mechanical readjustment required
  • Parallel operation with existing analog or digital 12V rudder angle indicator (1- and 2-wire indicators supported)
  • Galvanic isolation between sensor and NMEA 2000 network protects the entire on-board network
  • Micro-SD slot for configuration, firmware updates, diagnostics and data recording – only smartphone/laptop and text editor required
  • Compatible with NMEA 2000 Micro-C connector (male) and Raymarine SeaTalkNG

Model YDRA-01N
Compatible sensor types Resistive sensors < 400 Ω, 0–5 V voltage output
European Standard 10–180 Ω
American Standard 33–240 Ω
Calibration 7-point calibration
Network interface NMEA 2000® Micro-C male connector, compatible with Raymarine SeaTalkNG
Parallel operation Analog/digital 12V gauges (1- and 2-terminal versions)
Galvanic isolation Yes, between sensor and NMEA 2000 network
Memory/Diagnostics MicroSD card slot
Cable length 800 mm
Adapter length (without connector) 54 mm
