By Selden

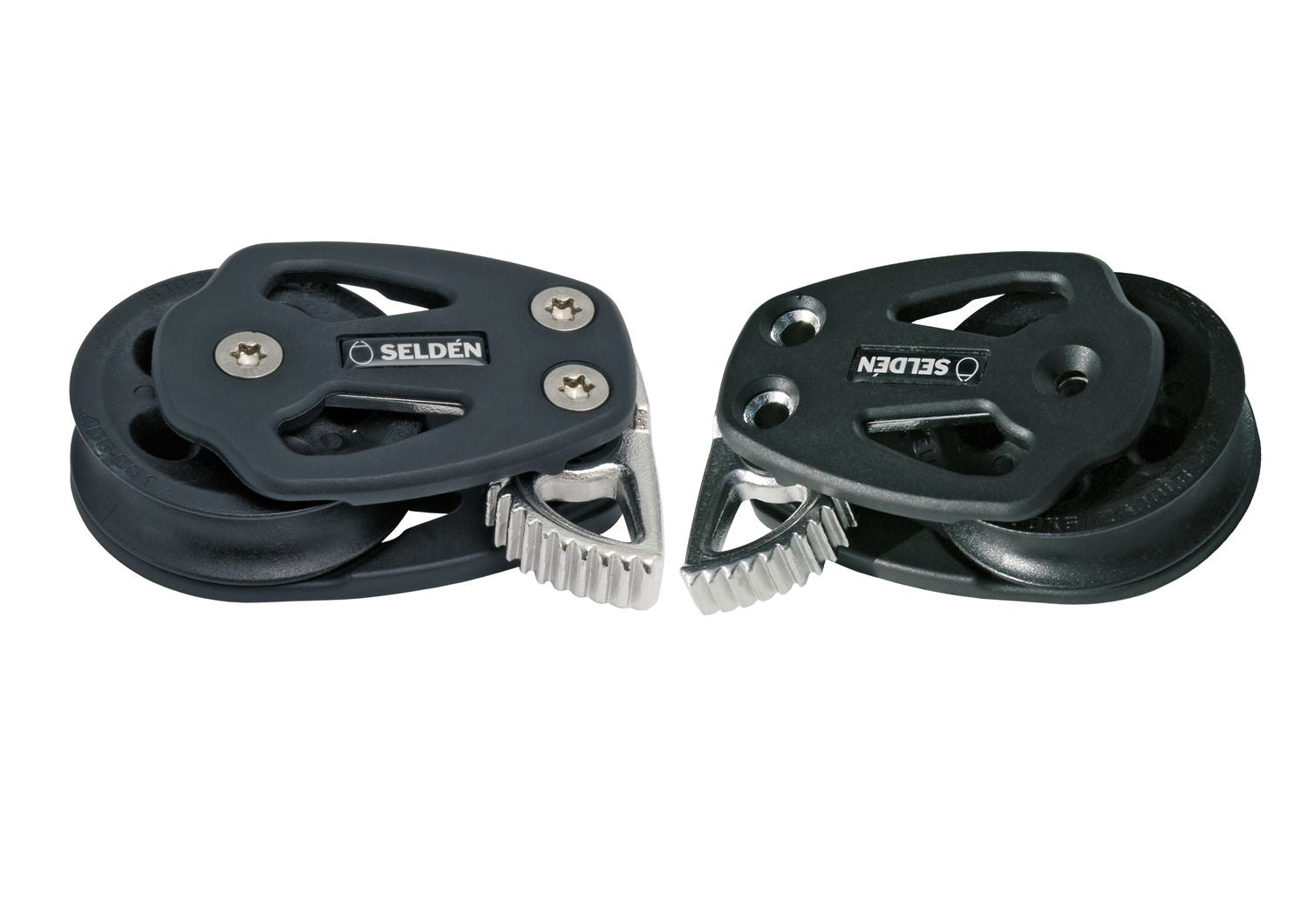

Seldén Quick-Lock deck block simple

€109,80 - €185,90
Tax included.

Spring-loaded arm for precise and reliable clamping function.
The spring holds the arm in both the open and closed positions. The quick-lock function is intended for short-term use only and does not replace a standard clamp or cleat.

  • PBB60 with acetal disc
  • PBB80 with GRP disc with polymer bushing

Extra strong jaws made of fiberglass reinforced composite plastic prevent the leash from jamming.
Lateral forces are absorbed by a stainless steel bracket that is incorporated into the jaws.

PBB60 Disc diameter mm Working load kg Breaking load kg max. linen Ø mm fastening
PBB60, horizontal, single-blade , with Quick-Lock Stb 60 1000 2000 14 3 x M6*
PBB60, horizontal, single disk , with Quick-Lock Bb 60 1000 2000 14 3 x M6*
PBB60, horizontal, double-disc , with Quick-Lock Stb 60 1000 2000 14 3 x M6*
PBB60, horizontal, double-disc , with Quick-Lock Bb 60 1000 2000 14 3 x M6*

PBB80 Disc diameter mm Working load kg Breaking load kg max. linen Ø mm fastening
PBB80, horizontal, single-blade , with Quick-Lock Stb 80 2000 4000 16 3 x M8*
PBB80, horizontal, single-disc , with Quick-Lock Bb 80 2000 4000 16 3 x M8*
PBB80, horizontal, double-disc , with Quick-Lock Stb 80 2000 4000 16 3 x M8*
PBB80, horizontal, double-disc , with Quick-Lock Bb 80 2000 4000 16 3 x M8*

* Screws for mounting are not included.
€109,80
€109,90 €109,80
-€0,10
brand: Selden
Availability: Low stock
SKU: SE-406-001-18
Product group:
category:
Rig & Deck > Blocks > Blocks with sliding bearings
Seldén Quick-Lock Decksblock einfach
€109,80
€109,90 €109,80

Spring-loaded arm for precise and reliable clamping function.
The spring holds the arm in both the open and closed positions. The quick-lock function is intended for short-term use only and does not replace a standard clamp or cleat.

  • PBB60 with acetal disc
  • PBB80 with GRP disc with polymer bushing

Extra strong jaws made of fiberglass reinforced composite plastic prevent the leash from jamming.
Lateral forces are absorbed by a stainless steel bracket that is incorporated into the jaws.

PBB60 Disc diameter mm Working load kg Breaking load kg max. linen Ø mm fastening
PBB60, horizontal, single-blade , with Quick-Lock Stb 60 1000 2000 14 3 x M6*
PBB60, horizontal, single disk , with Quick-Lock Bb 60 1000 2000 14 3 x M6*
PBB60, horizontal, double-disc , with Quick-Lock Stb 60 1000 2000 14 3 x M6*
PBB60, horizontal, double-disc , with Quick-Lock Bb 60 1000 2000 14 3 x M6*

PBB80 Disc diameter mm Working load kg Breaking load kg max. linen Ø mm fastening
PBB80, horizontal, single-blade , with Quick-Lock Stb 80 2000 4000 16 3 x M8*
PBB80, horizontal, single-disc , with Quick-Lock Bb 80 2000 4000 16 3 x M8*
PBB80, horizontal, double-disc , with Quick-Lock Stb 80 2000 4000 16 3 x M8*
PBB80, horizontal, double-disc , with Quick-Lock Bb 80 2000 4000 16 3 x M8*

* Screws for mounting are not included.
