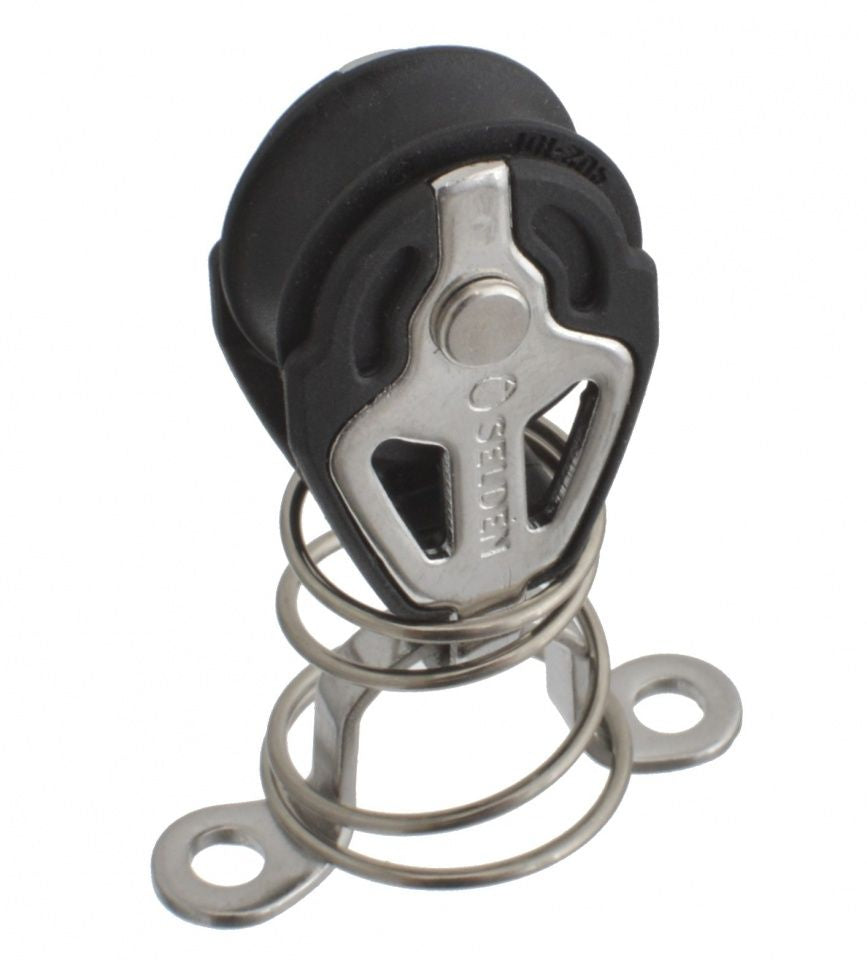

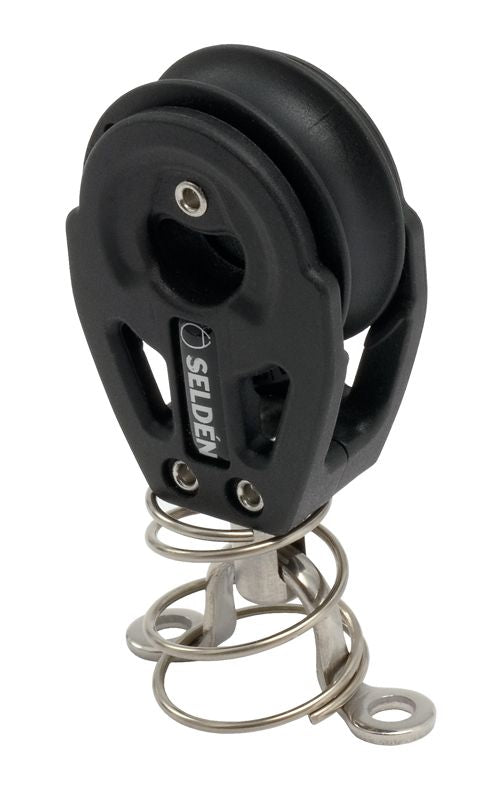

Seldén BBB StandUp Block – single sheave ball bearing block with head strap

€17,80 - €35,80
Tax included.

Dynamic loads, smoothly redirected: Seldén BBB StandUp blocks are specifically designed for changing pull directions and align themselves automatically thanks to their head strap and spring. With stainless steel ball bearings and acetal sheaves, they run smoothly and are durable even under load.

Tip: Screws are not included - plan for suitable M4 screws of the required length and quality (stainless steel A4 recommended).

€17,80
€17,90 €17,80
-€0,10
brand: Selden
Availability: Low stock
SKU: SE-402-101-14R
Product group:
category:
Rig & Deck > Blocks > Ball Bearing Blocks
Seldén BBB StandUp-Block – kugelgelagerter Einscheiben-Block mit Kopfbügel
€17,80
€17,90 €17,80

  • Ball-bearing acetal sheaves for minimum friction and high efficiency
  • Head strap with spring – automatically aligns the block to the rope (StandUp function)
  • Composite housing: lightweight, corrosion-resistant and robust
  • Steel balls with acetal spacers prevent metal-on-metal friction
  • High-strength, rust-proof steel axle for reliable use in saltwater environments
  • Two sizes: BBB20 (up to 150 kg working load) and BBB30 (up to 200 kg working load)

Type BBB20 – Sheave-Ø 20 mm
Type BBB20 – Working Load 150 kg
Type BBB20 – Breaking Load 300 kg
Type BBB20 – Max. Line-Ø 6 mm
Type BBB30 – Sheave-Ø 30 mm
Type BBB30 – Working Load 200 kg
Type BBB30 – Breaking Load 400 kg
Type BBB30 – Max. Line-Ø 8 mm
Version Single sheave with head bail and spring (StandUp)
Sheave Material Acetal
Axle Material High-strength stainless steel
Housing Material Composite material
Bearing Balls Stainless steel with acetal spacers
Fastening M4 (screws not included)

Selden

Gewicht (ca.): 0.2 kg
