Scanstrut ROKK USB socket SC-USB-01 Input 12/24V Output 2x USB-A 2.1A and 1A Waterproof according to IPX6

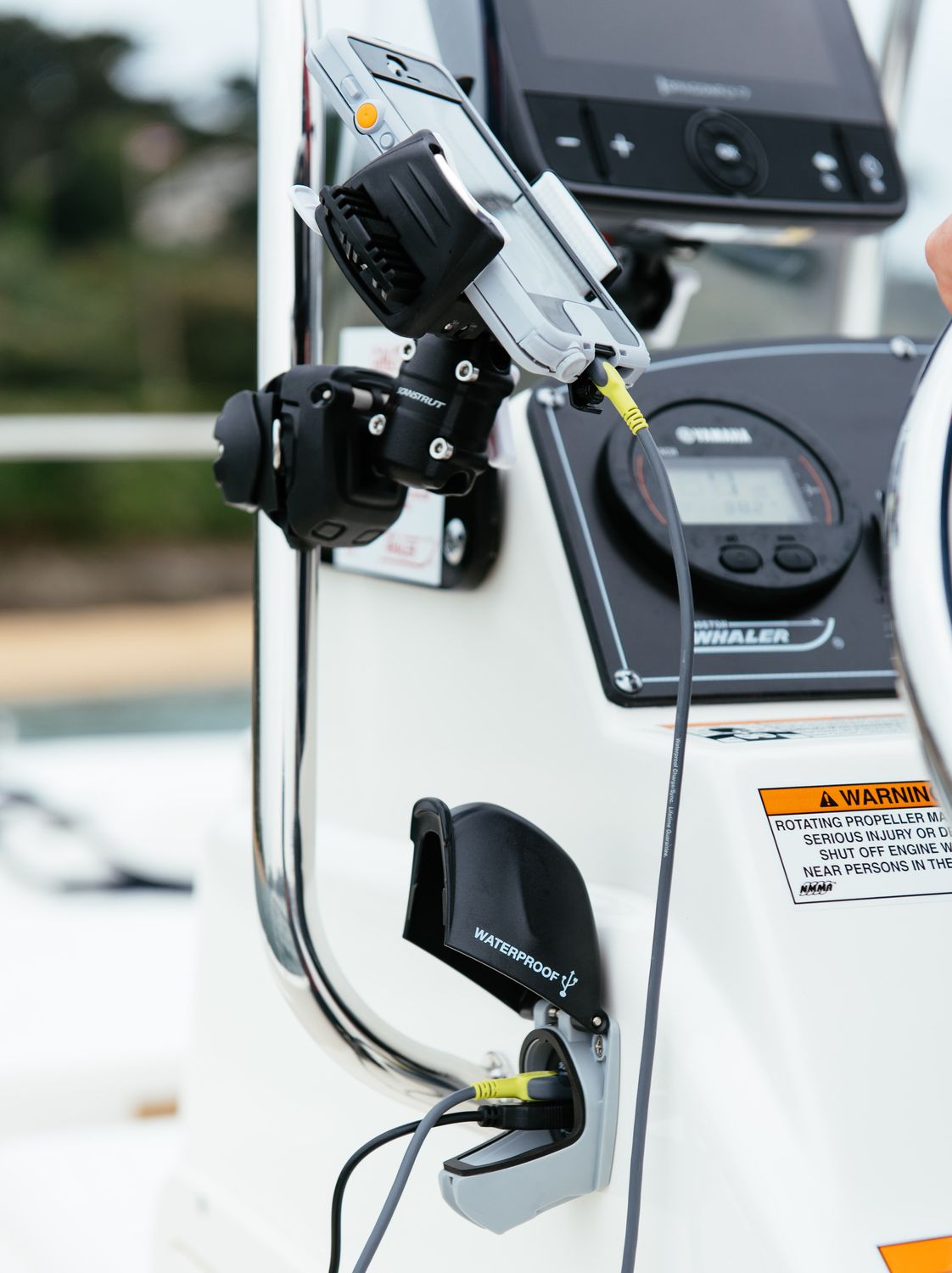

Splashproof (IPX4) USB-A socket specifically designed for marine use. This USB socket allows charging of up to two devices, such as smartphones, tablets, or chartplotters, in all weather conditions.

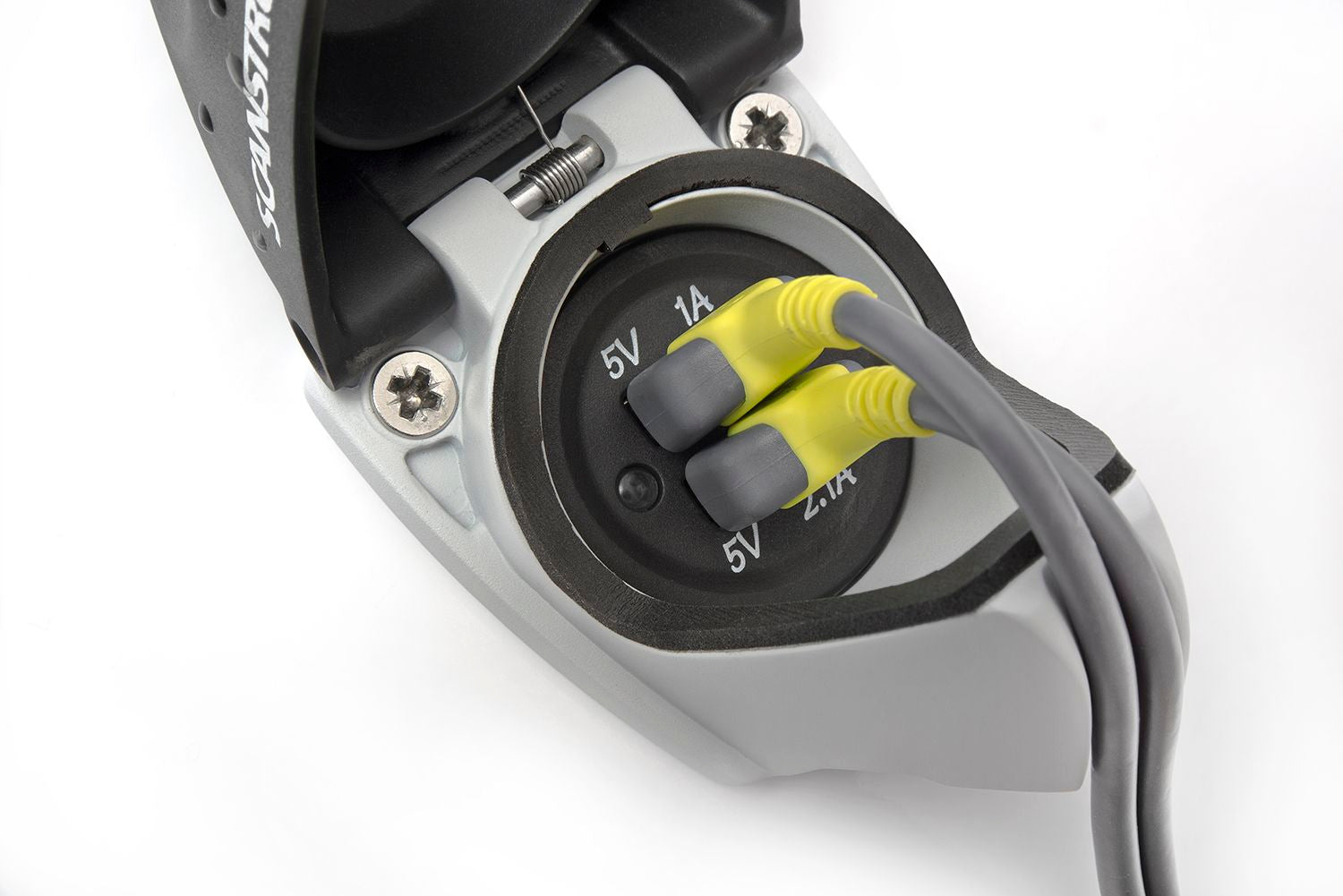

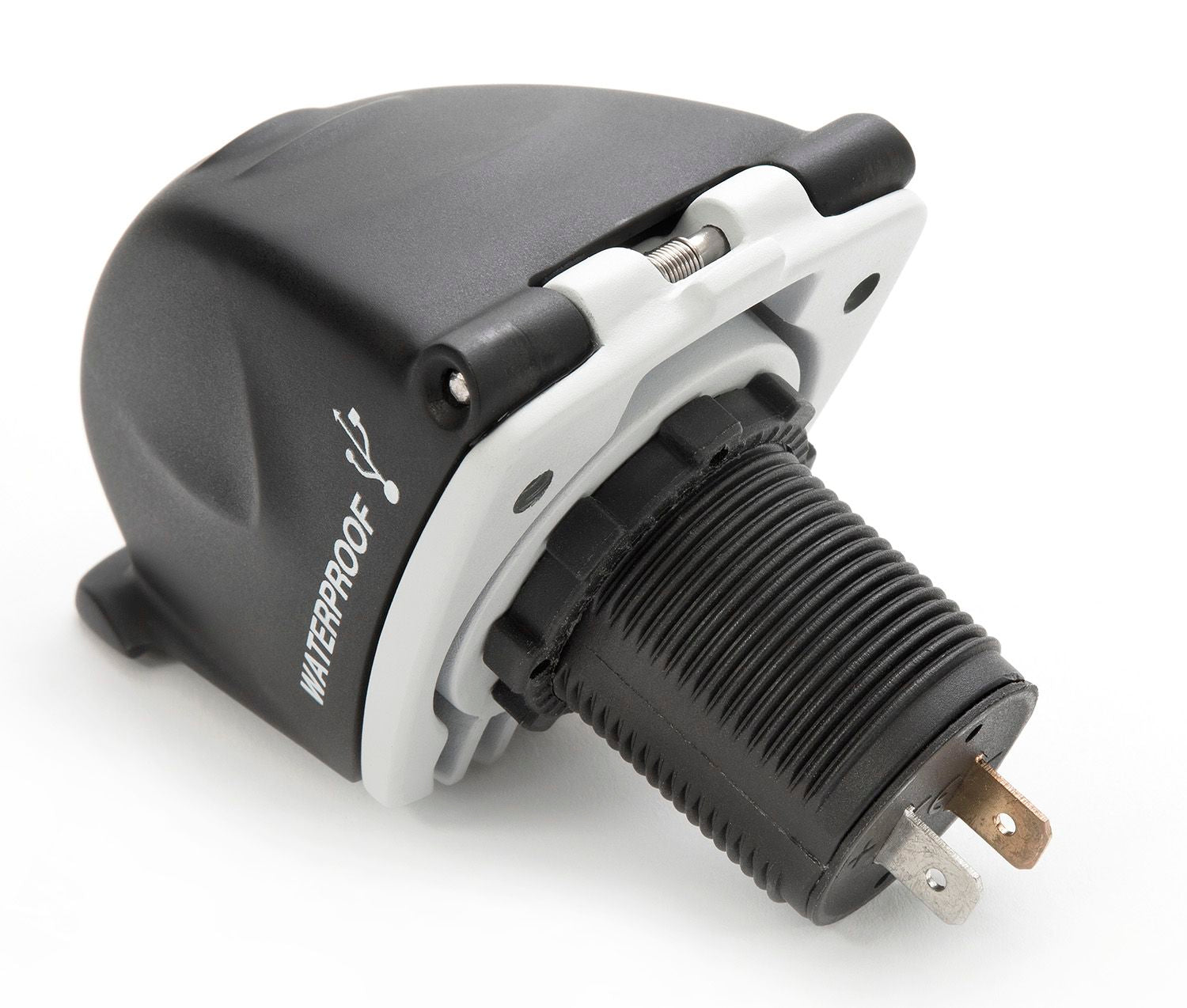

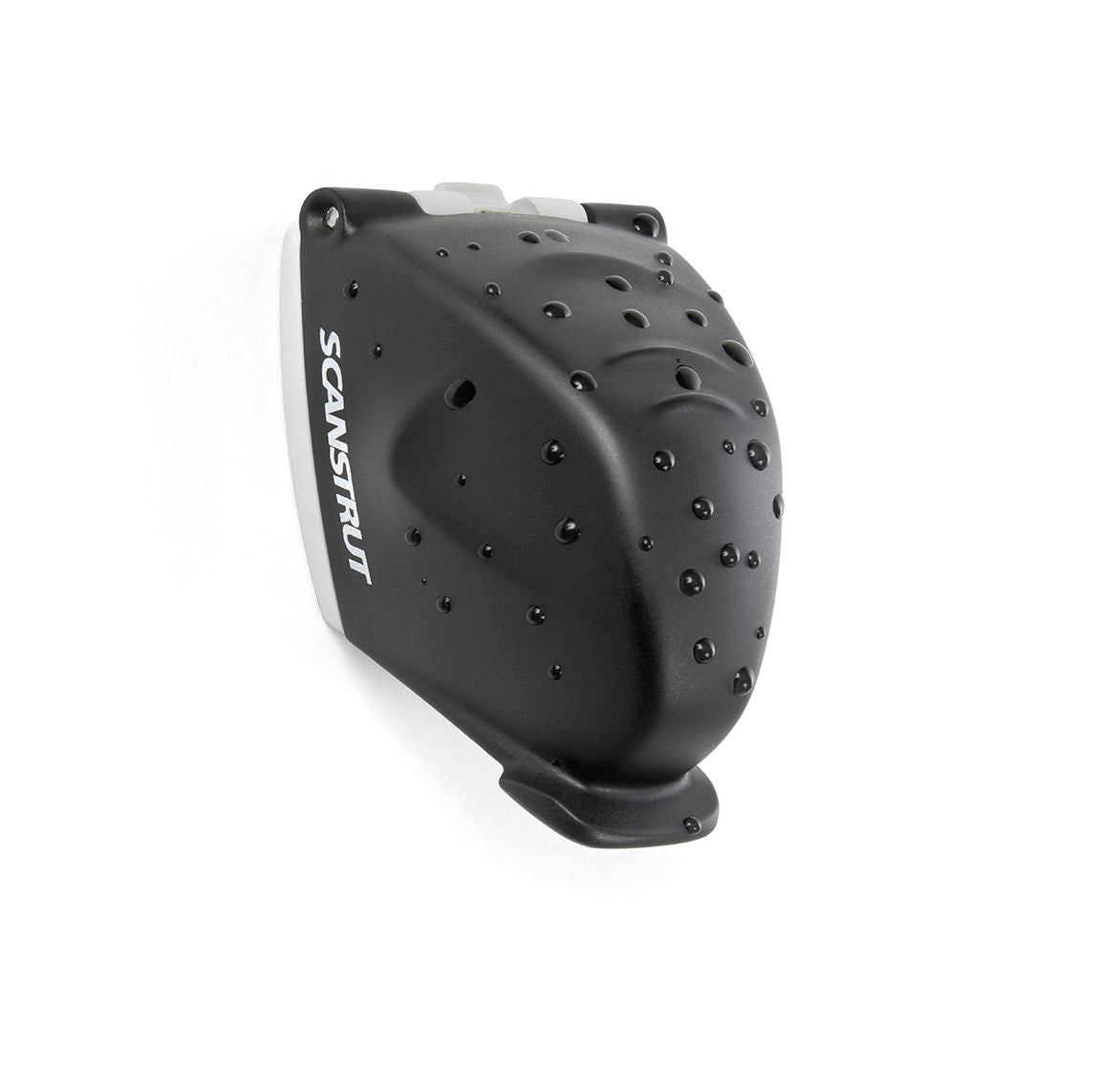

The spring-loaded IPX4 lid effectively protects the box from water. The housing is made of a robust and UV-resistant plastic, the hinge and spring are made of stainless steel (AISI 316), and all internal contacts are made of a nickel-plated copper alloy.

Specifications:

• IPX4 waterproof when the cover is closed
• UV-resistant plastic
• Hinge and spring made of AISI 316 stainless steel
• USB-A
• Input voltage 6 - 30 V DC (12/24 Volt system)
• Output voltage: max. 5 volts
• Output current: 3.1 A total, 2.1 A when only one connection is used
• Red LED running light

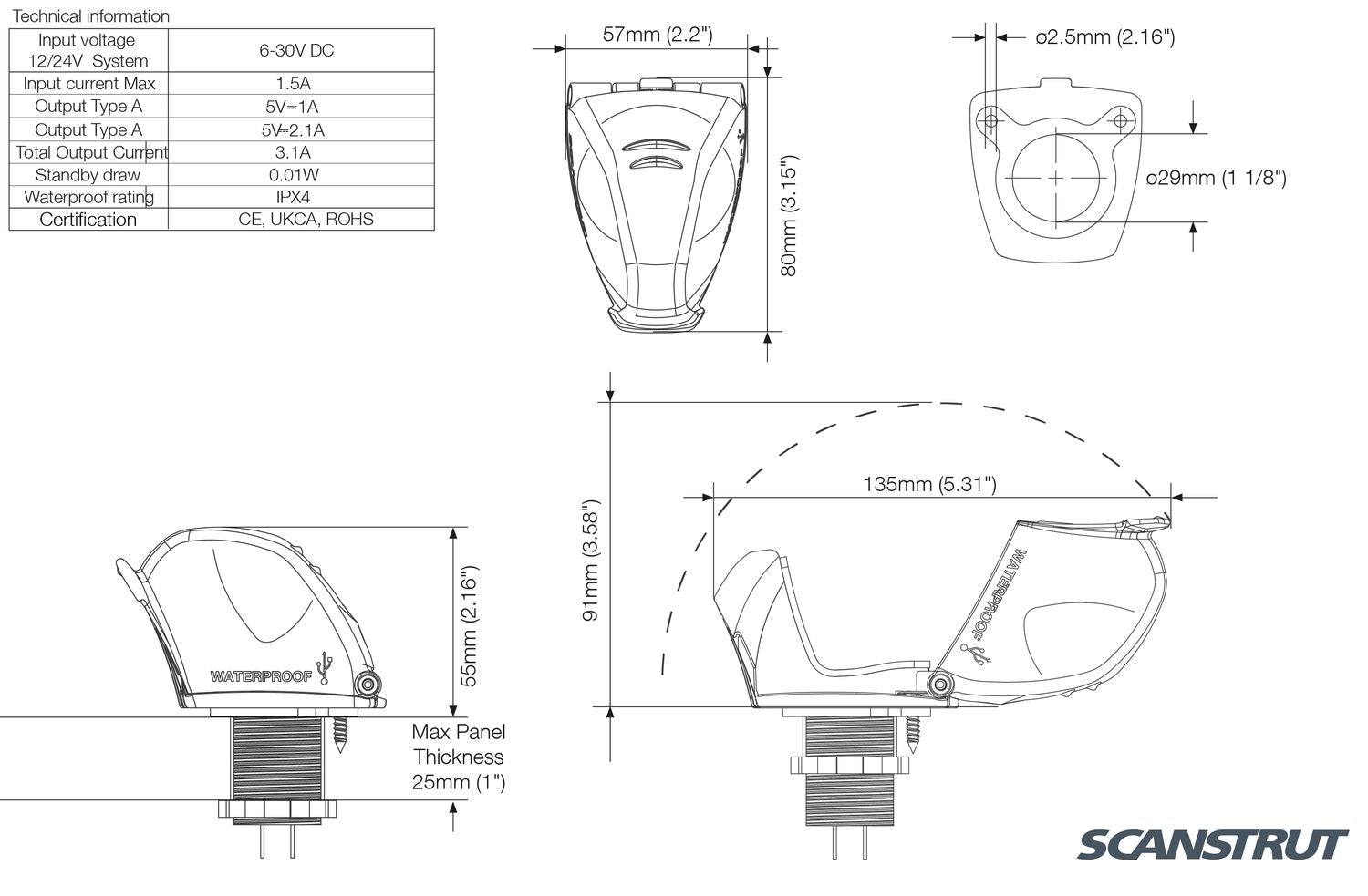

Dimensions (assembled):
Width: 57.0 mm
Height 80.0 mm
Depth 55.0 mm

Installation dimensions:
Borehole diameter: 29.0 mm
Wall thickness: max. 25 mm
