Scanstrut ROKK Flip Pro Plus SC-USB-F4 USB socket with mounting plate, input 12/24V, output 1x USB-A, 1x USB-C, at 12V 36W, at 24V 60W (USB-C), waterproof to IPX4 with closed cover

Splashproof (IPX4 with the lid closed) charging socket. 1 USB-A port and 1 USB-C port for ultra-fast charging: with up to 36W for 12-volt systems and up to 60W for 24-volt systems, it is ideal for charging laptops, for example. Simultaneous fast charging of a smartphone and an iPad is also no problem.

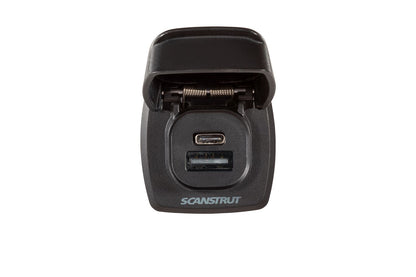

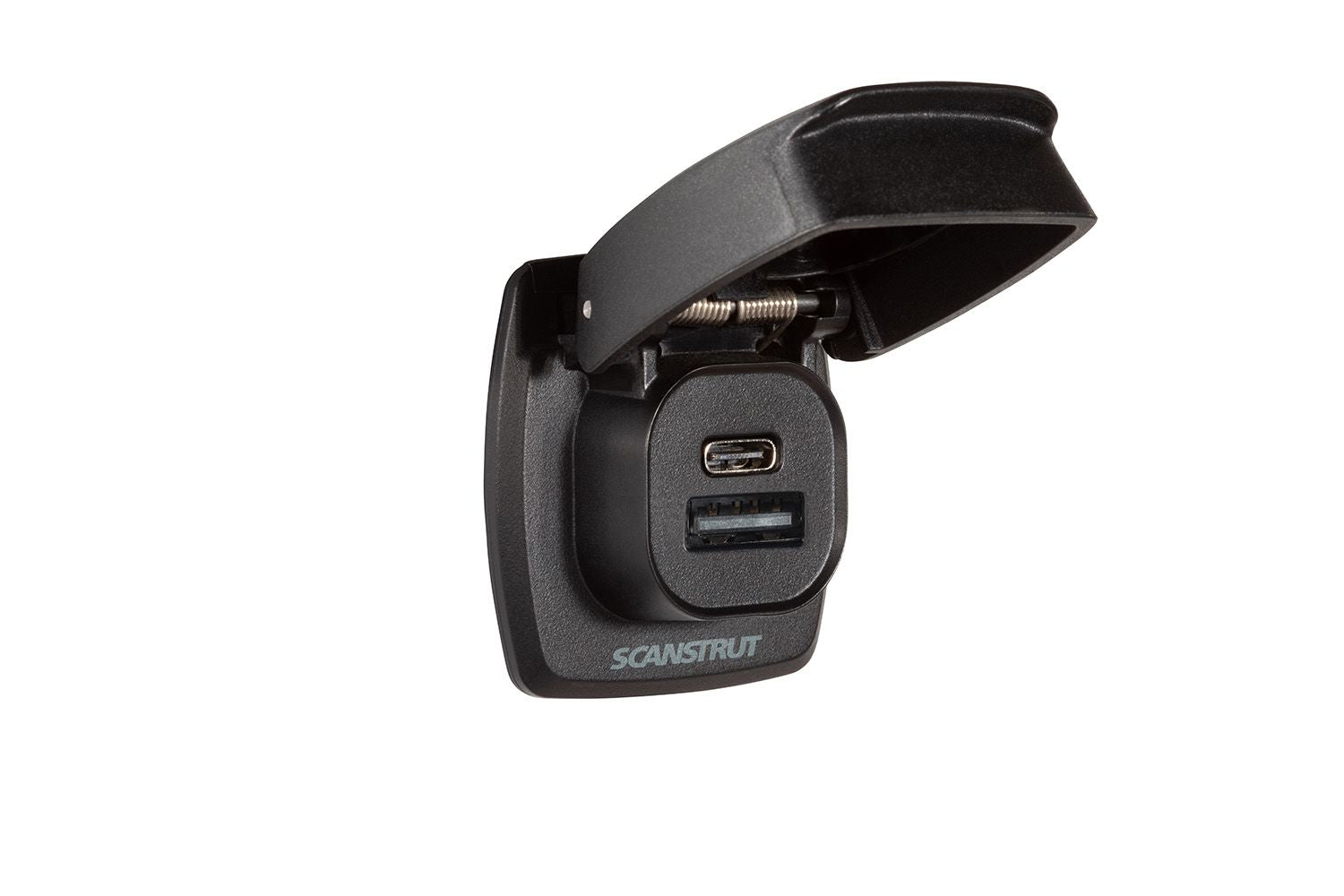

The spring-loaded IPX4 lid effectively protects the box from splashing water and rain. The housing is made of a robust and UV-resistant plastic, the hinge and spring are made of stainless steel (AISI 316), and all internal contacts are made of a nickel-plated copper alloy.

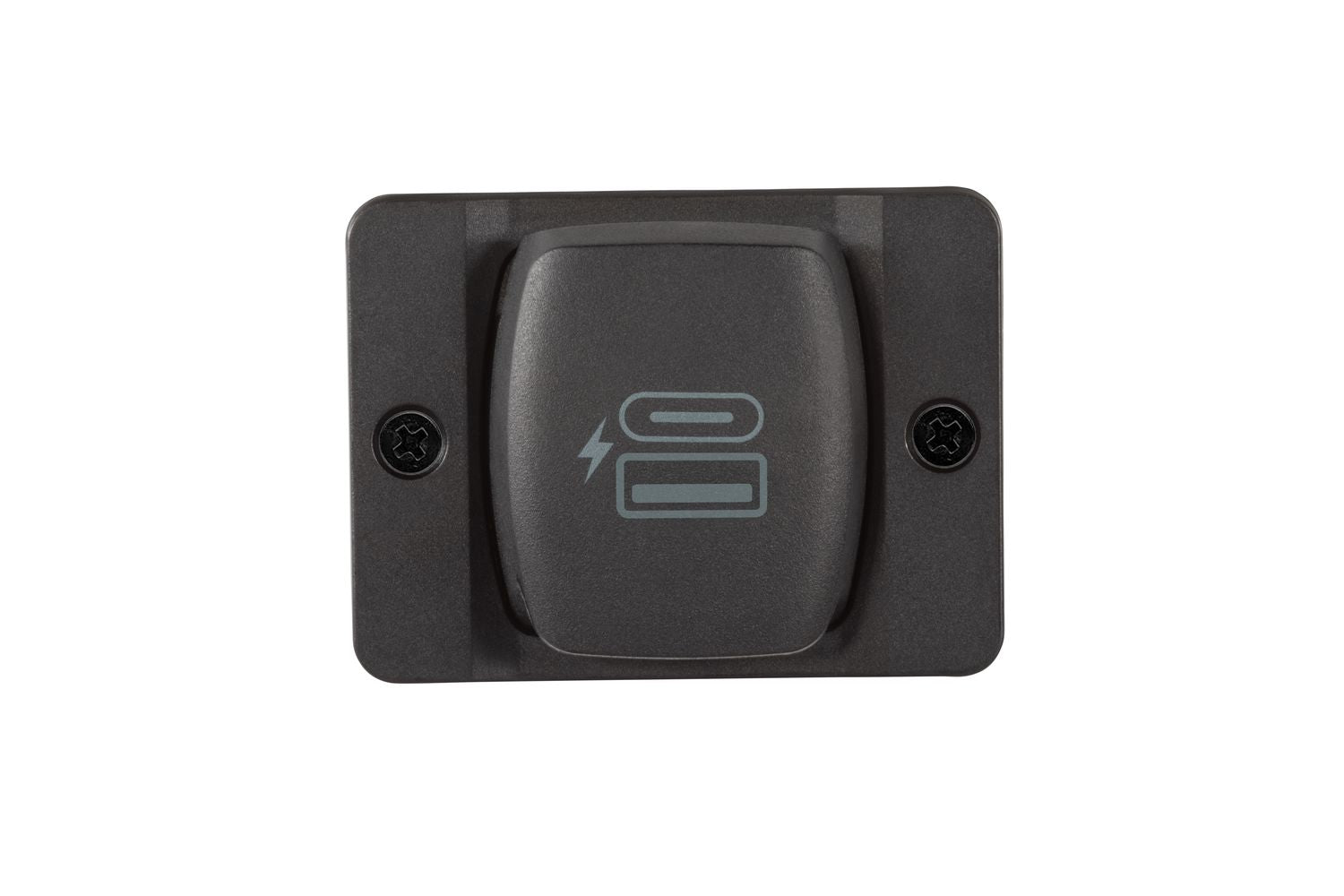

Delivery includes a square base plate; the box can also be mounted without a base plate.

Specifications:

• IPX4 waterproof when the cover is closed
• UV-resistant plastic
• Hinge and spring made of AISI 316 stainless steel
• Two mounting options
• Input voltage 10 - 30 V DC (12/24 Volt system)
• USB-C output: 60 W max. for 24-volt systems, 36 W max. for 12-volt systems
• USB-A output: 36 W max.
• Total charging current: 6 A, 3 A per socket

Dimensions (assembled):
Width / including aperture: 42 mm / 68.1 mm
Height / including aperture: 44 mm / 51.0 mm
Depth 19.7 mm

Installation dimensions:
Drill hole diameter: 30.2 mm
Wall thickness: min. 3 mm, max. 25 mm
