By Scanstrut

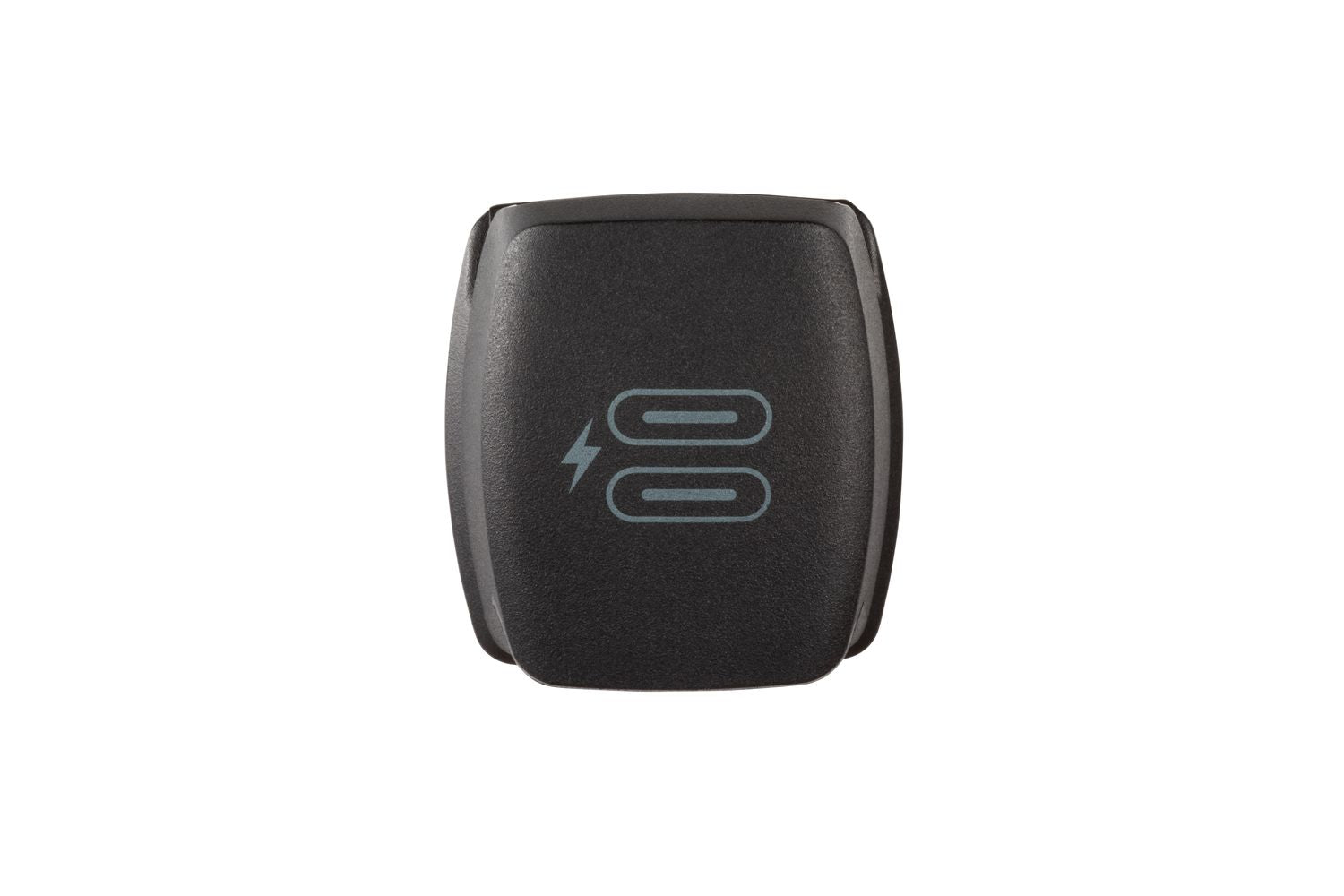

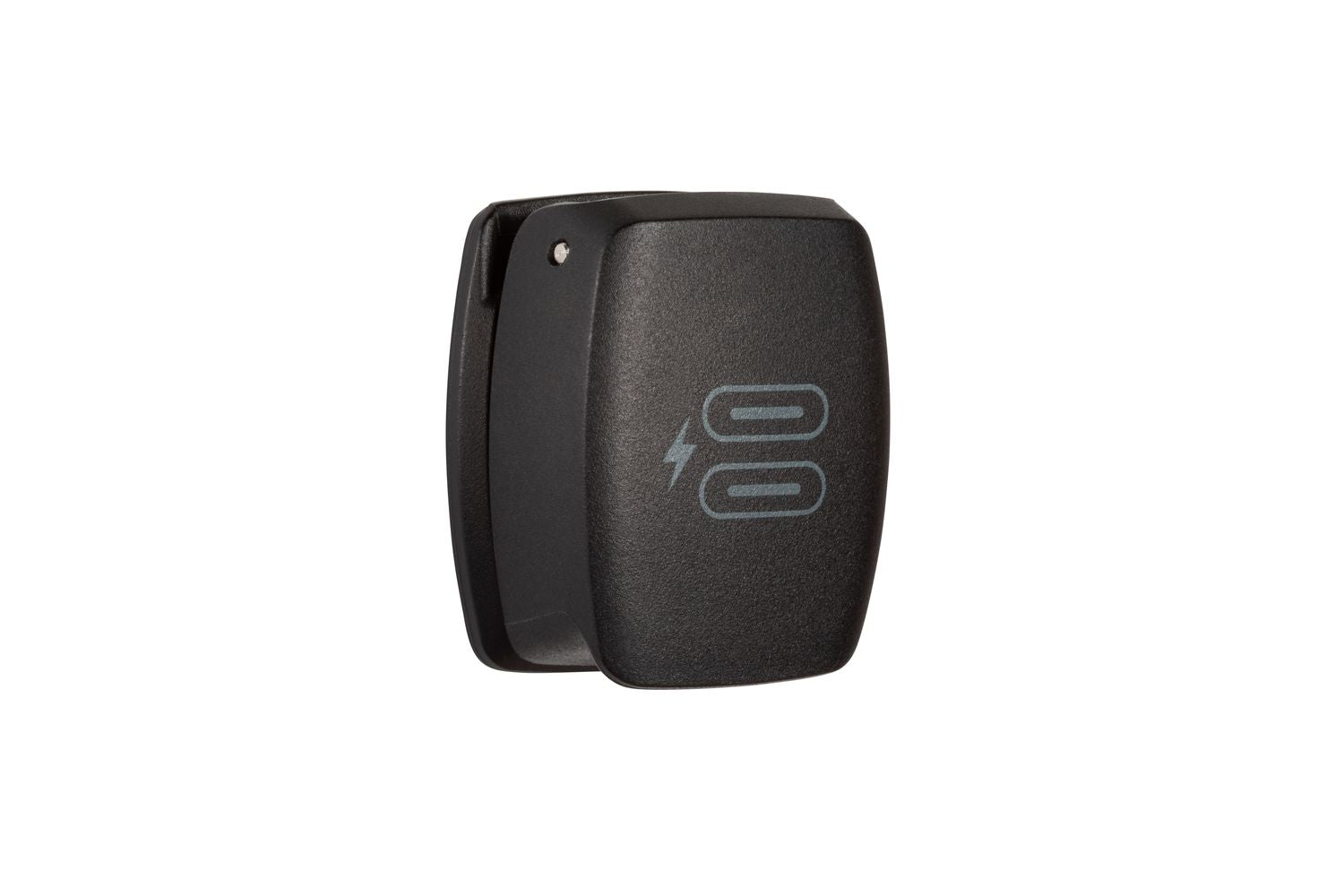

Scanstrut ROKK Flip Pro Max SC-USB-F3 – Splashproof Dual USB-C Socket for 12/24V

€72,90
€72,90 €72,90
Tax included.

Fast charging on board, even when wet: The ROKK Flip Pro Max brings two powerful USB-C ports to the cockpit or navigation console – with up to 60 W in 24 V systems, enough power even for a laptop. The spring-loaded stainless steel flip lid snaps shut securely and reliably keeps splashes out.

Tip: When installing without a base plate, make sure the required wall thickness is min. 3 mm and max. 25 mm – and degrease the sealing surface before assembly to ensure the installation remains permanently waterproof.
brand: Scanstrut
Availability: In stock
SKU: 89-SC-USB-F3
Product group:
category:
Electrical systems > Vehicle electrical systems > Sockets & plugs
Scanstrut ROKK Flip Pro Max SC-USB-F3 – spritzwassergeschützte Doppel-USB-C-Steckdose für 12/24 V
€72,90
€72,90 €72,90

  • Up to 60 W (24 V) or 36 W (12 V) – fast-charges laptops, tablets, and smartphones simultaneously
  • Two USB-C outputs with max. 3 A each for parallel fast charging

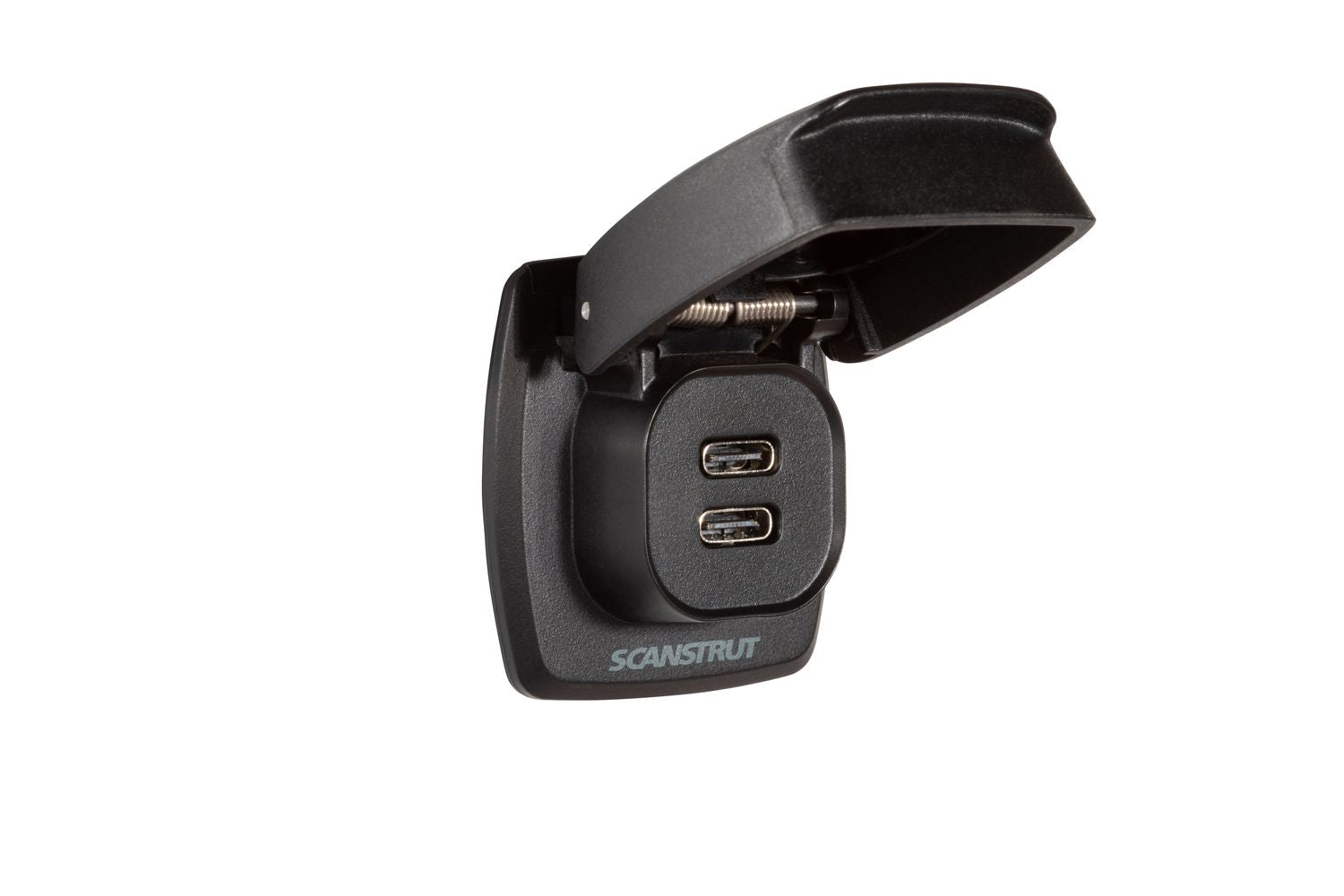

  • Spring-loaded flip lid made of AISI 316 stainless steel – splash-proof according to IPX4 when lid is closed
  • UV-resistant housing made of durable plastic for long-term outdoor use
  • Two mounting options: with or without included square base plate
  • Compatible with 10–30 V DC – fits any 12 V or 24 V onboard electrical system

Model SC-USB-F3
Protection class (cover closed) IPX4, splash-proof
Input voltage 10–30 V DC (12/24 V systems)
Output power at 12 V 36 W max.
Output power at 24 V 60 W max.
Outputs 2 × USB-C
Total charging current 6 A
Charging current per socket 3 A
Housing UV-resistant plastic
Hinge & spring Stainless steel AISI 316
Internal contacts Nickel-plated copper alloy

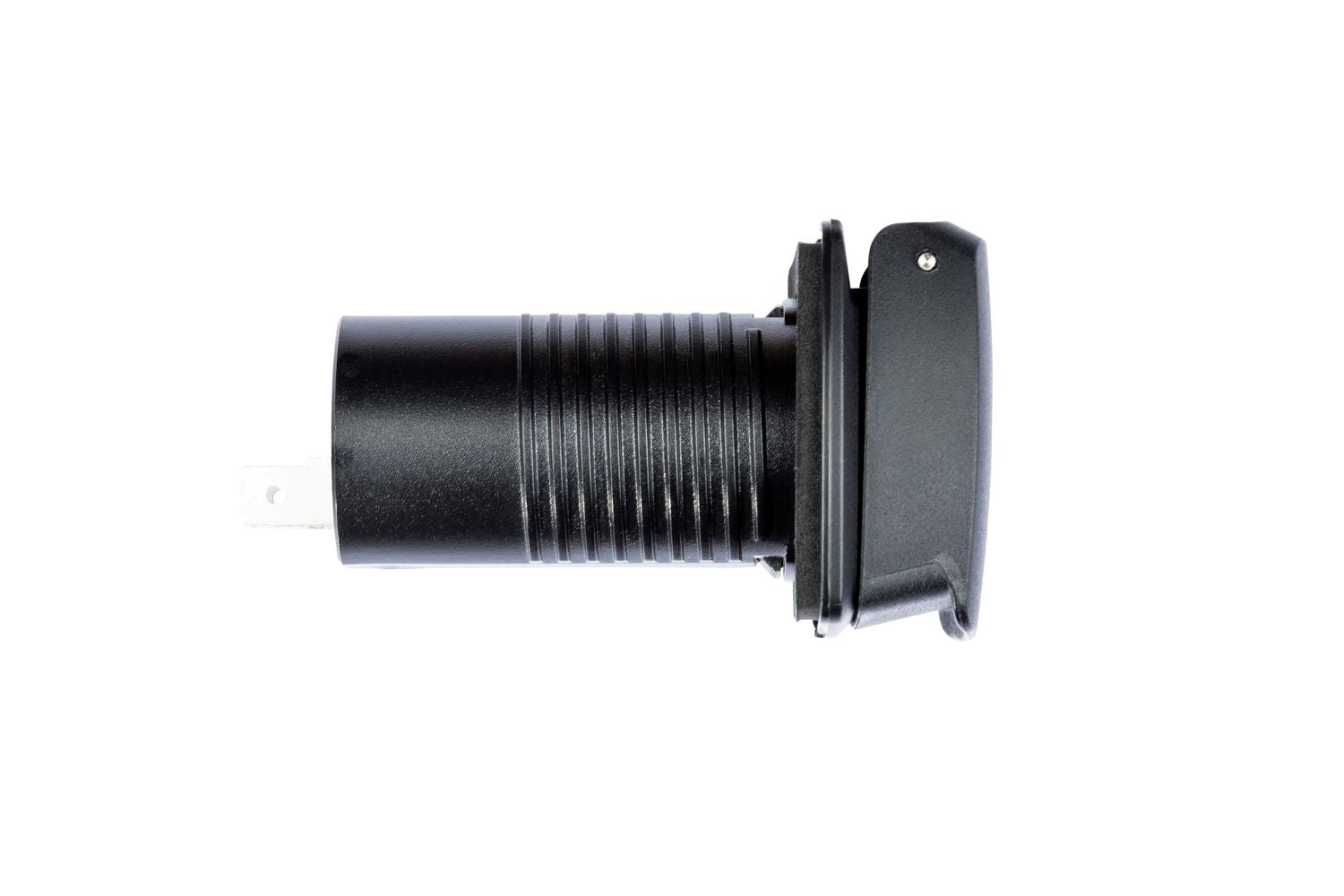

Mounting dimensions (W × H × D) 42 × 44 × 19.7 mm
Mounting dimensions incl. panel (W × H) 68.1 × 51.0 mm
Mounting bore-hole-Ø 30.2 mm
Mounting wall thickness min. 3 mm – max. 25 mm

Scanstrut

Gewicht (ca.): 0.08 kg
