By Scanstrut

Scanstrut radar mount, backstay mounted facing forward

€1.916,00 - €2.149,90
Tax included.

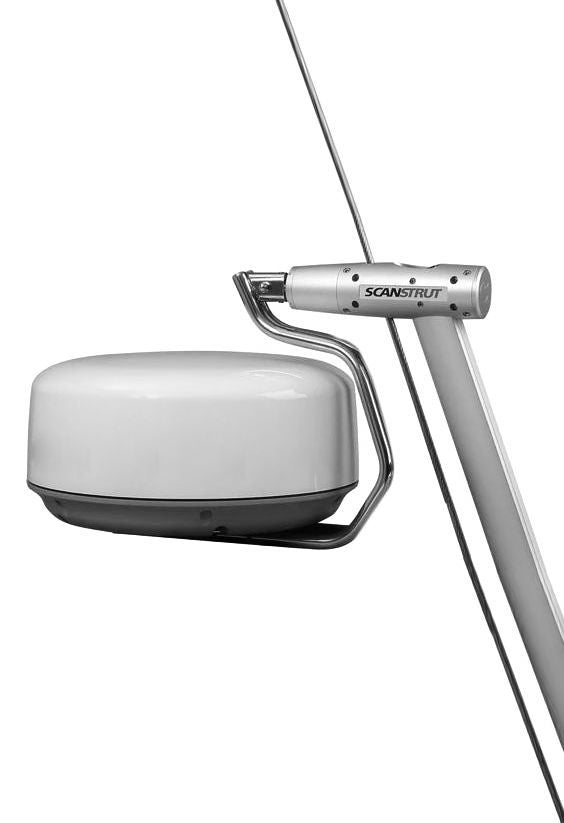

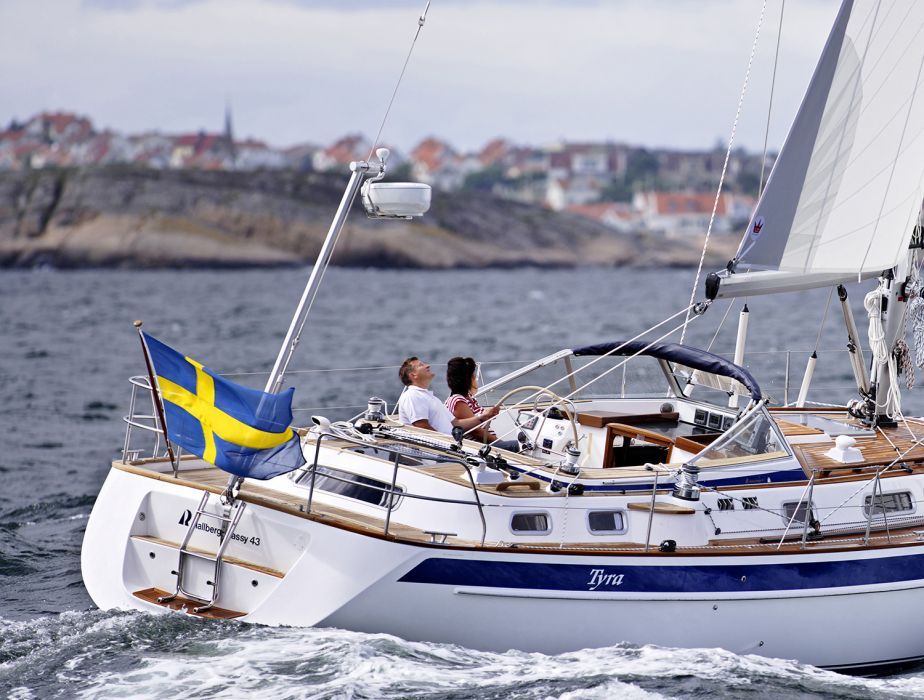

The semi-gimbal, damped Scanstrut radar antenna mount is installed behind the backstay, with the antenna pointing forward. The radar is free of obstructions and protected from interference.

The stainless steel semi-gimbal mount, in conjunction with the finely tuned hydraulic damping, reacts to significant changes in the tilt angle. This ensures that the radar always remains at the same height as the horizon, while the radar's horizontal alignment guarantees the best possible radar image.

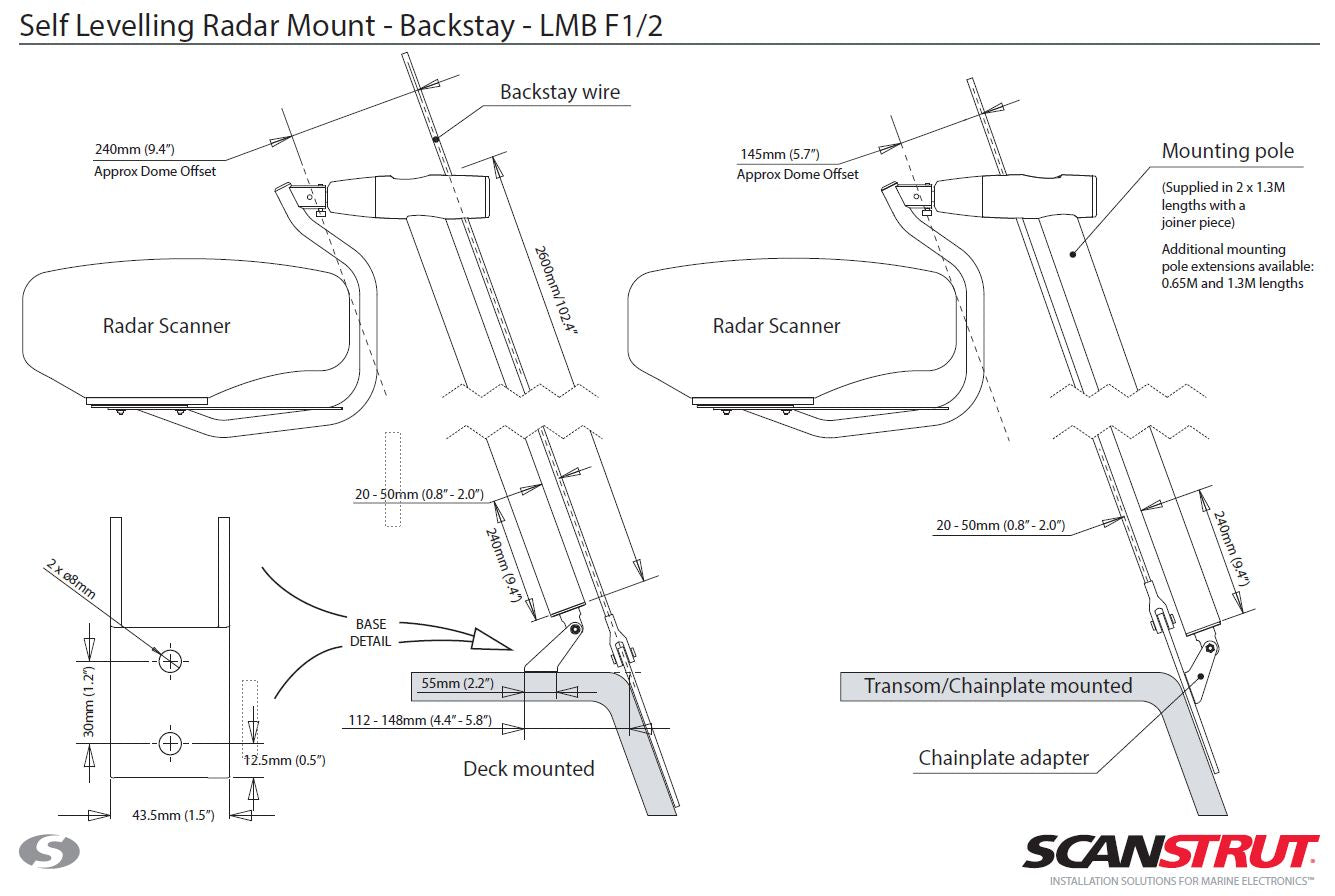

The robust support tube, made of seawater-resistant aluminum, is mounted on a sturdy base on deck, the transom, or the chainplate. The tube's angle can be adjusted to minimize the load on the backstay.

The cables are routed through a cable duct for a clean installation.

Two types are available, each suitable for different radar antennas.

LMB-F1 suitable for:

  • B&G: 3G/4G, HALO20, HALO20+, HALO24
  • Garmin: Fantom 18, Fantom 24, GMR18HD / 18xHD / 18HD+, GMR24HD / 24xHD, GMR40
  • Humminbird: HB 2124 CHIRP
  • Lowrance: 3G/4G, HALO20, HALO20+, HALO24
  • Nobeltec: 4kW [IR2-4D 25 4Kw]
  • Raymarine: QUANTUM, QUANTUM 2, RD218, RD418/RD418HD, RD424/RD424HD
  • Simrad: 3G/4G, DX45, DX60 / DX64-S, GB40 / NX40/45 / NSE8/12, HALO20 HALO20+, HALO24
  • Sitex: RADARpc - 4D

LMB-F2 suitable for:

  • Furuno: 1621, 1622, 1623, 1715, 1724, 1734, 1815, 1824, 1832, 1834, 1835, DRS2D, DRS2DXT, DRS42DL, DRS42DL+, DRS4D / DRS4D-NXT, DRS4DL+, DRS4W, NavNet (18), NavNet (24)
  • Humminbird: AS 21RD4KW
  • Interphase: Mini RE-1, RE-8, RE-9
  • JRC: 1000, 1000mk2, 1066, 1500, 1500mk2,
  • Codes: 2kW 12, 4kW [RB715A],
  • Lorenz: Lorenz 2kW
  • Lowrance: LRA-1800 / RB714A / DX42
  • Navman: 8000 Series [8084/8120] 18
  • Nobeltec: 2kW (20)
  • Northstar: M series/8000i (18)
  • Seiwa: SWR-1, SWR-8, SWR-9
  • Simrad: GB40 / NX40/45 / NSE8/12 / RB712A / DX42S
  • Sitex: MDS -1, MDS -8, MDS -9, MDS-12, NKE-1066,
  • Techmarine: T-72.01, T-72.02, T-72.04

Voraussichtliche Auslieferung: 08.07.2026

Regular price €2.149,90
Regular price €2.149,90 Sale price €2.149,90
brand: Scanstrut
Availability: Low stock
SKU: 89-LMB-F2
Product group:
category:
Navigation & Audio > Radar
Regular price €2.149,90
Regular price €2.149,90 Sale price €2.149,90

  • Halbkardanische Aufhängung aus Edelstahl mit hydraulischer Dämpfung – Antenne bleibt automatisch im Horizont
  • Antenne zeigt nach vorne, frei von Hindernissen und geschützt vor Interferenzen
  • Kräftiges Stützrohr aus seewasserbeständigem Aluminium – robust und korrosionsfest
  • Einstellbarer Rohrwinkel minimiert die Last auf dem Achterstag
  • Integrierter Kabelkanal für eine saubere, geordnete Installation
  • Zwei Typen erhältlich – passend für eine Vielzahl gängiger Radarantennen namhafter Hersteller

MontagepositionHinter dem Achterstag, Antenne nach vorne ausgerichtet
AufhängungHalbkardanisch, Edelstahl
DämpfungHydraulisch, fein abgestimmt
StützrohrSeewasserbeständiges Aluminium
MontagemöglichkeitenDeck, Heckspiegel oder Pütting
RohrwinkelEinstellbar zur Lastminimierung am Achterstag
KabelführungIntegrierter Kabelkanal
Typ LMB-F1 – kompatible MarkenB&G, Garmin, Humminbird, Lowrance, Nobeltec, Raymarine, Simrad, Sitex
Typ LMB-F1 – kompatible Modelle (Auswahl)B&G/Lowrance/Simrad 3G/4G, HALO20/20+/24; Garmin Fantom 18/24, GMR18HD/24HD/40; Humminbird HB 2124 CHIRP; Nobeltec 4 kW [IR2-4D 25]; Raymarine QUANTUM/QUANTUM 2, RD218, RD418/HD, RD424/HD; Simrad DX45, DX60/DX64-S, GB40/NX40-45; Sitex RADARpc-4D
Typ LMB-F2 – kompatible MarkenFuruno, Humminbird, Interphase, JRC, Koden, Lorenz, Lowrance, Navman, Nobeltec, Northstar, Seiwa, Simrad, Sitex, Techmarine
Typ LMB-F2 – kompatible Modelle (Auswahl)Furuno 1621/1622/1623/1715/1724/1734/1815/1824/1832/1834/1835, DRS2D/DRS2DXT, DRS4D/DRS4D-NXT, DRS4DL+, DRS4W, NavNet 18/24; JRC 1000/1000mk2/1066/1500/1500mk2; Koden 2 kW 12, 4 kW [RB715A]; Simrad RB712A/DX42S; Sitex MDS-1/8/9/12, NKE-1066; Techmarine T-72.01/02/04

Scanstrut

Gewicht (ca.): 11.0 kg
