Rutgerson RC75X rope stopper for 8-12mm line
The rope-friendly clamping mechanism reliably and continuously grips ropes with a diameter of 8mm to 12mm.
The base of the stopper is mounted separately, and then the housing with the mechanism is slid onto it. This simplifies installation and cleaning, and allows, for example, the removal of continuous lines from roller systems without having to cut them.
The innovative shape has no sharp edges, the lever is easy to grip, and the stoppers have compact dimensions.
Safe working load: 750kg.

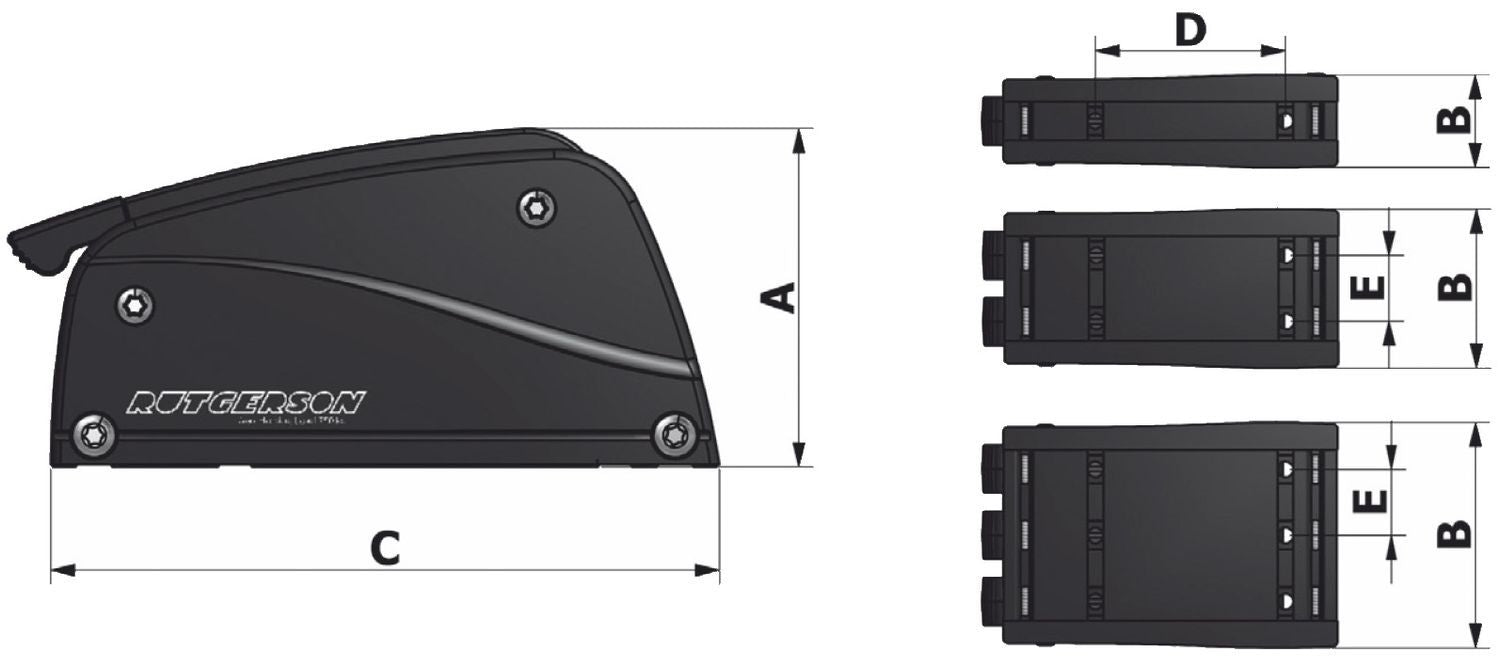

| Designation | A mm | B mm | C mm | D mm | E mm | screws |

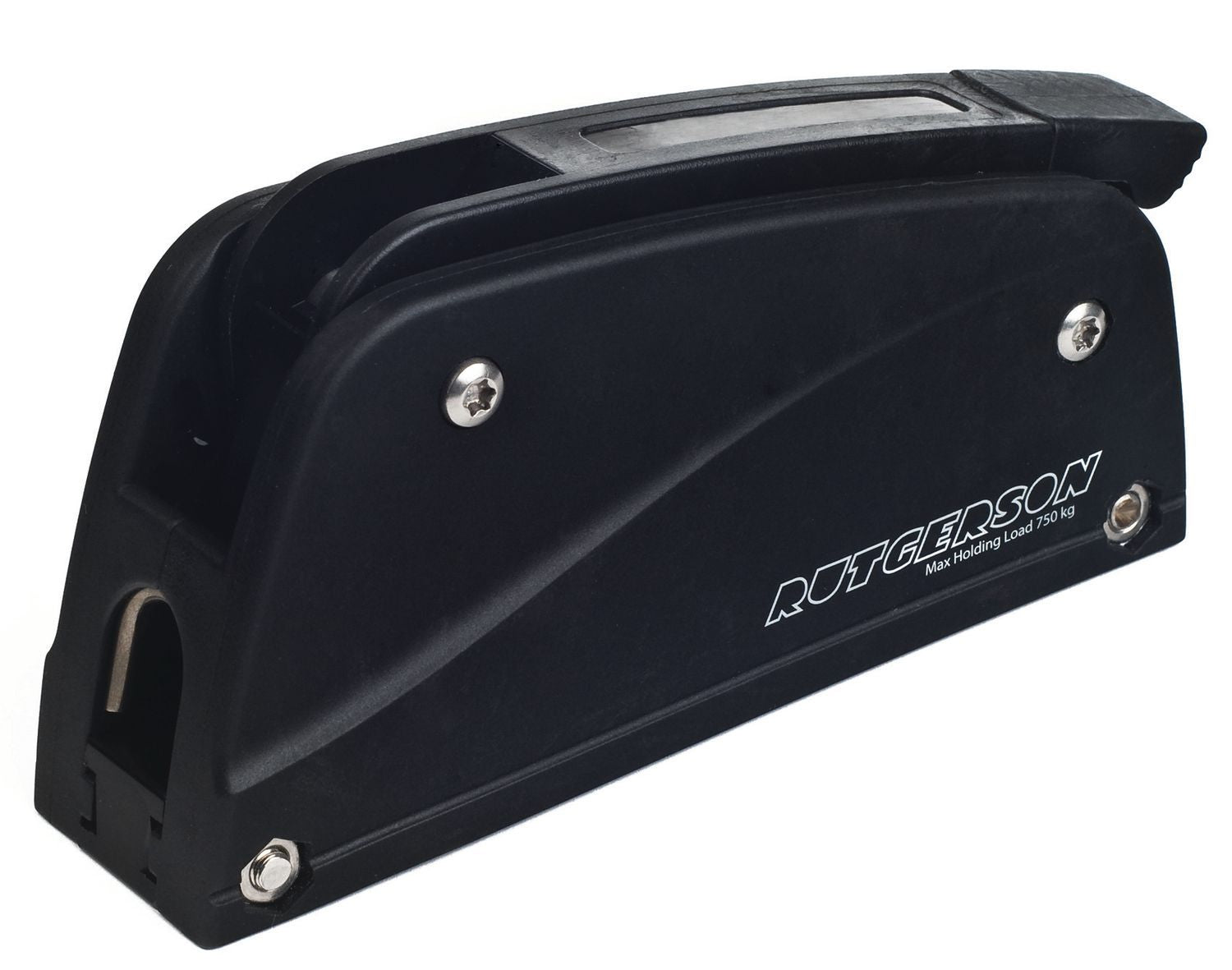

| Simple stopper RC75X | 70 | 39 | 139 | 79 | - | 2xM6* |

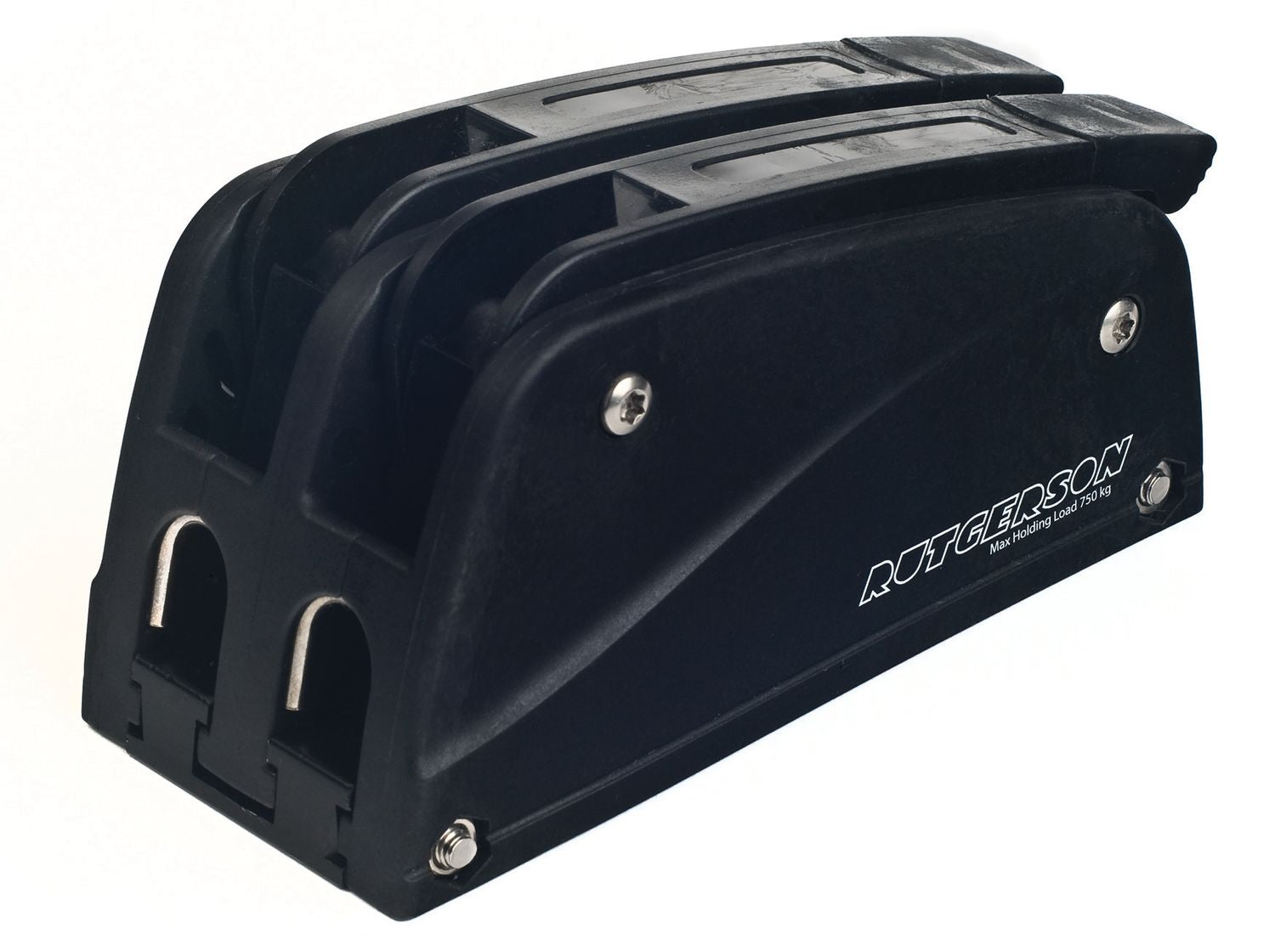

| Double stopper RC75X | 70 | 66 | 139 | 79 | 27.5 | 4xM6* |

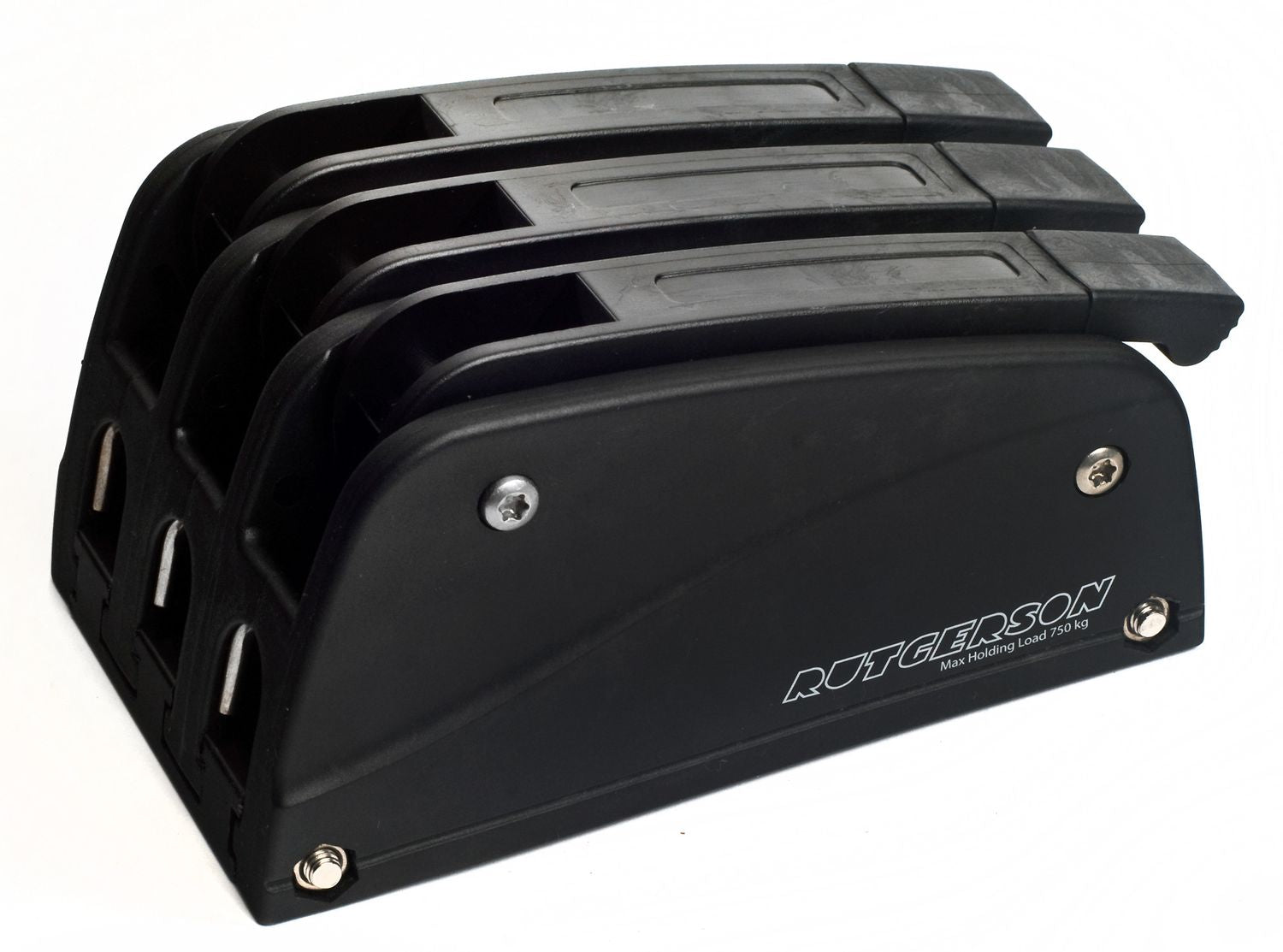

| Triple stopper RC75X | 70 | 94 | 139 | 79 | 27.5 | 6xM6* |

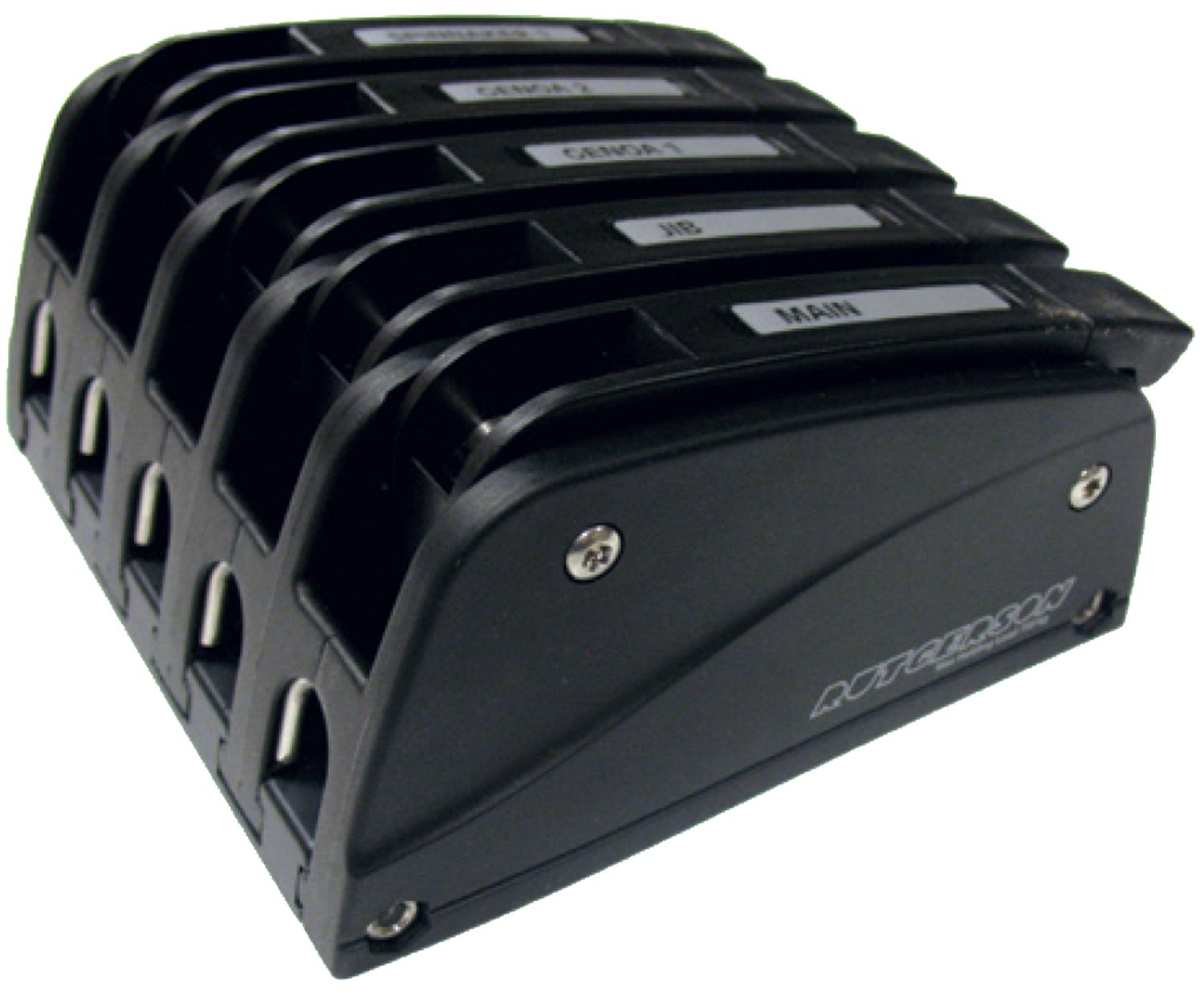

| Five-way stopper RC75X | 70 | 154 | 139 | 79 | 27.5 | 10xM6* |
* Screws for mounting are not included.
Couldn't load pickup availability
The rope-friendly clamping mechanism reliably and continuously grips ropes with a diameter of 8mm to 12mm.
The base of the stopper is mounted separately, and then the housing with the mechanism is slid onto it. This simplifies installation and cleaning, and allows, for example, the removal of continuous lines from roller systems without having to cut them.
The innovative shape has no sharp edges, the lever is easy to grip, and the stoppers have compact dimensions.
Safe working load: 750kg.
| Designation | A mm | B mm | C mm | D mm | E mm | screws |
| Simple stopper RC75X | 70 | 39 | 139 | 79 | - | 2xM6* |
| Double stopper RC75X | 70 | 66 | 139 | 79 | 27.5 | 4xM6* |
| Triple stopper RC75X | 70 | 94 | 139 | 79 | 27.5 | 6xM6* |
| Five-way stopper RC75X | 70 | 154 | 139 | 79 | 27.5 | 10xM6* |
* Screws for mounting are not included.
