Rutgerson Fallstopper RC75S
The rope-friendly clamping mechanism reliably and continuously grips ropes with a diameter of 4mm to 8mm.
The base of the stopper is mounted separately, and then the housing with the mechanism is slid onto it. This simplifies installation and cleaning, and allows, for example, the removal of continuous lines from roller systems without having to cut them.
The innovative shape has no sharp edges, the lever is easy to grip, and the stoppers have compact dimensions.
Safe working load: 750kg.

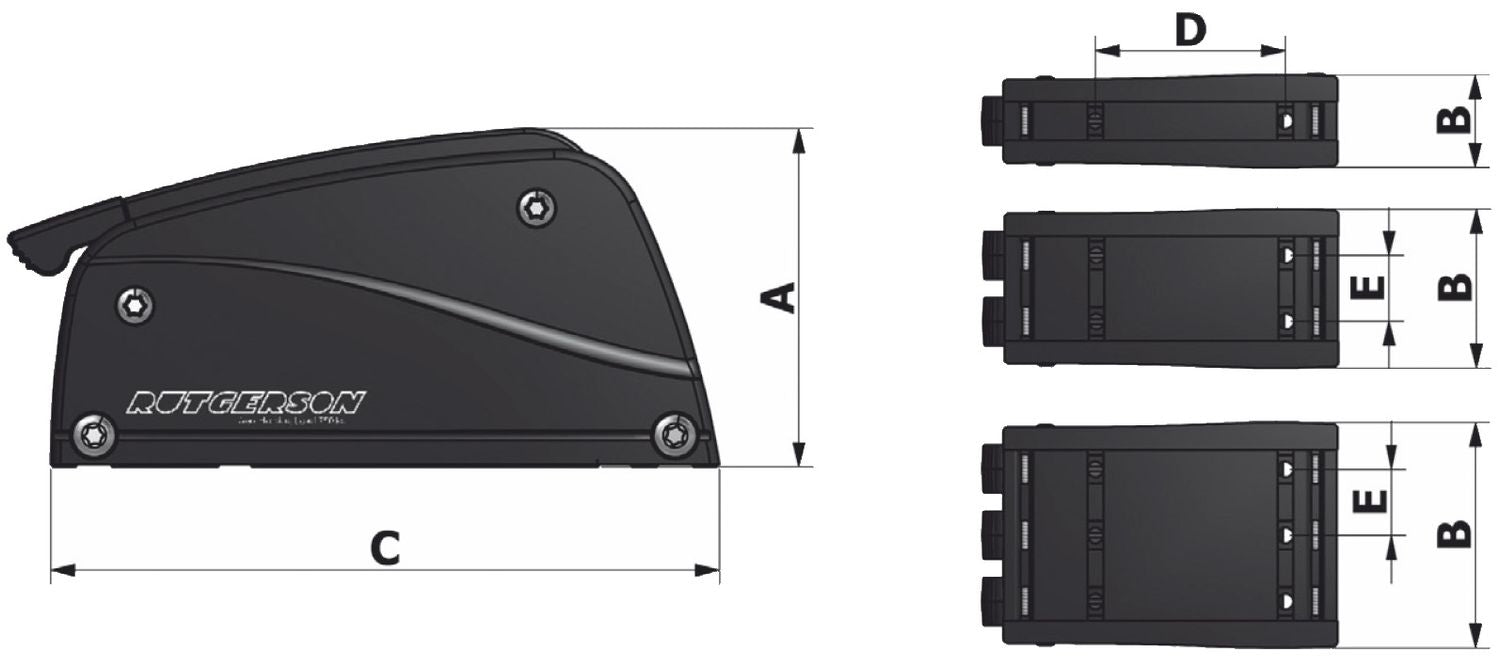

| Designation | A mm | B mm | C mm | D mm | E mm | screws |
| Simple stopper RC75S | 70 | 39 | 139 | 79 | - | 2xM6* |
| Double stopper RC75S | 70 | 66 | 139 | 79 | 27.5 | 4xM6* |
| Triple stopper RC75S | 70 | 94 | 139 | 79 | 27.5 | 6xM6* |
| Five-way stopper RC75S | 70 | 154 | 139 | 79 | 27.5 | 10xM6* |
* Screws for mounting are not included.
Couldn't load pickup availability
The rope-friendly clamping mechanism reliably and continuously grips ropes with a diameter of 4mm to 8mm.
The base of the stopper is mounted separately, and then the housing with the mechanism is slid onto it. This simplifies installation and cleaning, and allows, for example, the removal of continuous lines from roller systems without having to cut them.
The innovative shape has no sharp edges, the lever is easy to grip, and the stoppers have compact dimensions.
Safe working load: 750kg.
| Designation | A mm | B mm | C mm | D mm | E mm | screws |
| Simple stopper RC75S | 70 | 39 | 139 | 79 | - | 2xM6* |
| Double stopper RC75S | 70 | 66 | 139 | 79 | 27.5 | 4xM6* |
| Triple stopper RC75S | 70 | 94 | 139 | 79 | 27.5 | 6xM6* |
| Five-way stopper RC75S | 70 | 154 | 139 | 79 | 27.5 | 10xM6* |
* Screws for mounting are not included.
