By PSS

PSS Seal 70 mm Shaft, 4 3/4" Stern Tube

€1.911,38
€1.911,38
Tax included.

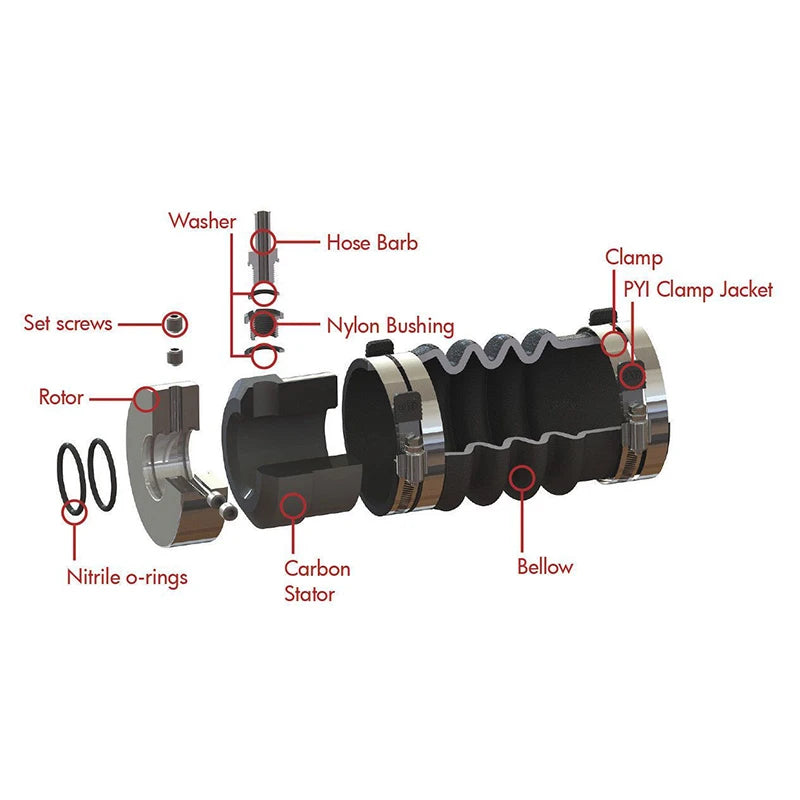

No more dripping stuffing boxes: The PSS Shaft Seal Type A is a low-maintenance mechanical face seal that provides a completely watertight seal for your propeller shaft. It reliably compensates for misalignments, vibrations, and the axial fore-and-aft movement caused by propeller thrust – with no dripping water in the bilge.

Tip: Correct bellow pre-compression is crucial for flawless function. After installation, check the bellow compression and ensure that the rotor's set screws are on clean, degreased shaft metal. After the first few hours of operation, recheck all hose clamps for a tight fit.
brand: PSS
Availability: Low stock
SKU: OB-BB-02-70M-434
Product group:
category:
Engine technology

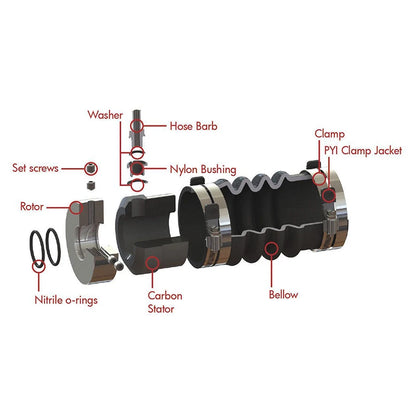

PSS-Dichtung 70 mm Welle
€1.911,38
€1.911,38

  • Mechanical face seal – no dripping, no need for readjustment like with conventional stuffing boxes
  • Floating carbon flange automatically compensates for misalignments and shaft vibrations
  • Pre-tensioned stainless steel rotor keeps the sealing surface in constant contact even with changing propeller thrust
  • O-rings rotate with the shaft – no wear on the shaft surface during operation
  • Wide temperature range from –15 °C to +107 °C for year-round use
  • Robust materials: carbon-graphite lapped to 4 HLB, rotor made of 316 SS / Nitronic 50

Type PSS Mechanical Seal Type A
Shaft Diameter 50 mm
Stern Tube ID 3″
Seal Principle Mechanical Seal (rotating stainless steel rotor / stationary carbon flange)
Rotor Material 316 SS / Nitronic 50, 9 Ra Surface Finish
Carbon Flange Carbon Graphite, lapped to 4 HLB (tolerance 0.000 011 mm)
Bellows Material Molded Nitrile – PVC
Rotor Seal to Shaft 2 O-rings (rotating, no wear during operation)
Temperature Limits –15 °C to +107 °C
Pressure Limit 1 bar (15 PSI)
Max. Shaft Speed 10,000 RPM
Carbon Flange Mounting Hose clamps on bellows and stern tube
Rotor Mounting Set screws on the shaft

PSS

Gewicht (ca.): 0.11 kg
