By philippi

Philippi SKL-B

€9,76
€9,76
Tax included.

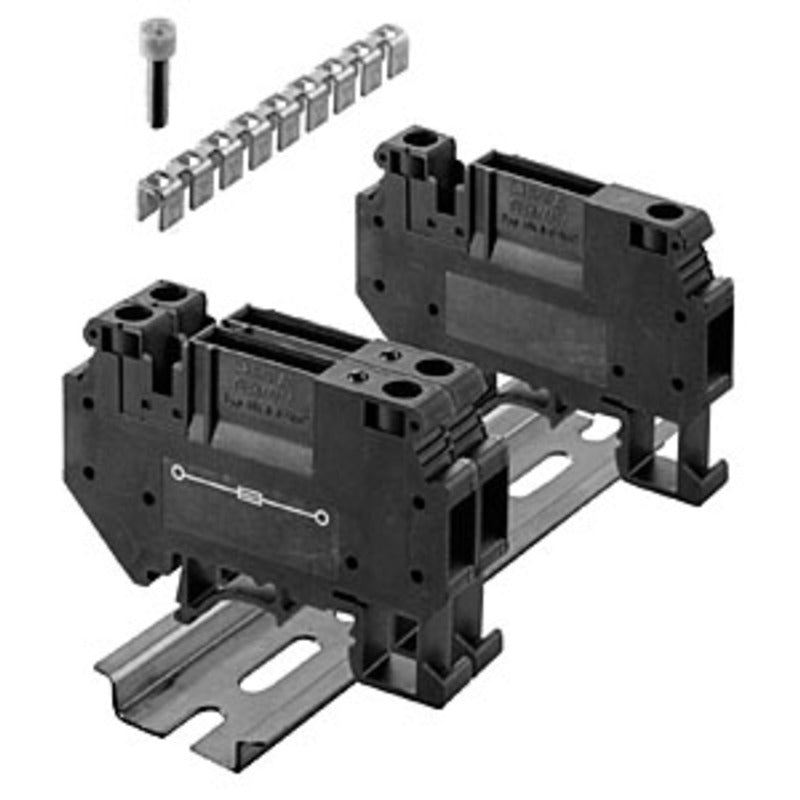

Connect multiple Philippi 1610 series fuse terminals quickly and securely: The SKL-B provides the appropriate bridging material with screws for up to 10 poles – separable to isolate each terminal individually if required. This way, you keep your onboard network neatly and flexibly organized.

Tip: The bridge can be separated at any point with a standard tool – this allows you to selectively remove individual circuits from the group without affecting the remaining terminals.
brand: philippi
Availability: Low stock
SKU: OB-BB-122223201
Product group:
category:
electrical system
Philippi SKL-B
€9,76
€9,76

  • 10-pin bridging material precisely fitting for Philippi fuse terminals SKL (series 1610)
  • Separable – individual poles can be separated as required
  • Maximum continuous current of 34 A for reliable protection
  • DIN rail mounting for professional, space-saving installation
  • Connection via screw terminals – secure hold even with vibration

Type SKL-B
Suitable for Philippi fuse terminals SKL, series 1610
Function Bridging material with screws, 10-pole, separable
Maximum current 34 A
Max. cable cross-section 6 mm²
Mounting DIN rail
Connection Screw terminals
Dimensions (L × W × D) 52 × 24.4 × 8 mm

philippi

Gewicht (ca.): 0.01 kg
