By philippi

Philippi SKL

€16,59
€16,59
Tax included.

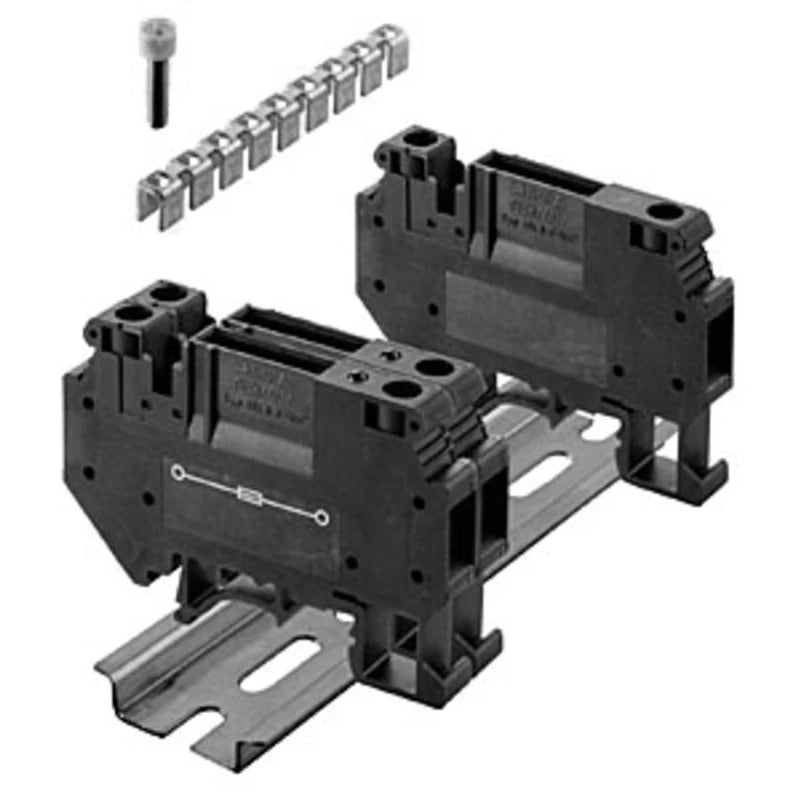

Cleanly fused, flexibly wired: The Philippi SKL is a bridgeable fuse terminal especially for the Philippi 1610 series and ensures orderly, DIN rail-mounted fusing on the input side. Thanks to screw terminals and optional bridging material, it can be precisely matched to your onboard installation.

The SKL-B bridging material is sold separately and can be cut to the required number of poles thanks to its separable design – keeping the installation tidy.
brand: philippi
Availability: Low stock
SKU: OB-BB-122223301
Product group:
category:
electrical system
Philippi SKL
€16,59
€16,59

  • Bridgeable design – multiple terminals can be easily connected
  • For DIN rail mounting – fits into any standard distribution box on board
  • Connection via screw terminals for a secure, low-maintenance contact
  • Cable cross-section up to 6 mm² – suitable for typical onboard wiring
  • Matches the Philippi 1610 series for a uniform installation

Type Philippi SKL
Series 1610
Function Bridgeable fuse terminal, input side
Mounting DIN rail
Connection Screw terminals
Cable cross-section max. 6 mm²
Dimensions (L × W × D) 52 × 24.4 × 8 mm
Accessories SKL-B Bridging material with screws, 10-pin, separable
Max. Current SKL-B 34 A

philippi

Gewicht (ca.): 0.01 kg
