By philippi

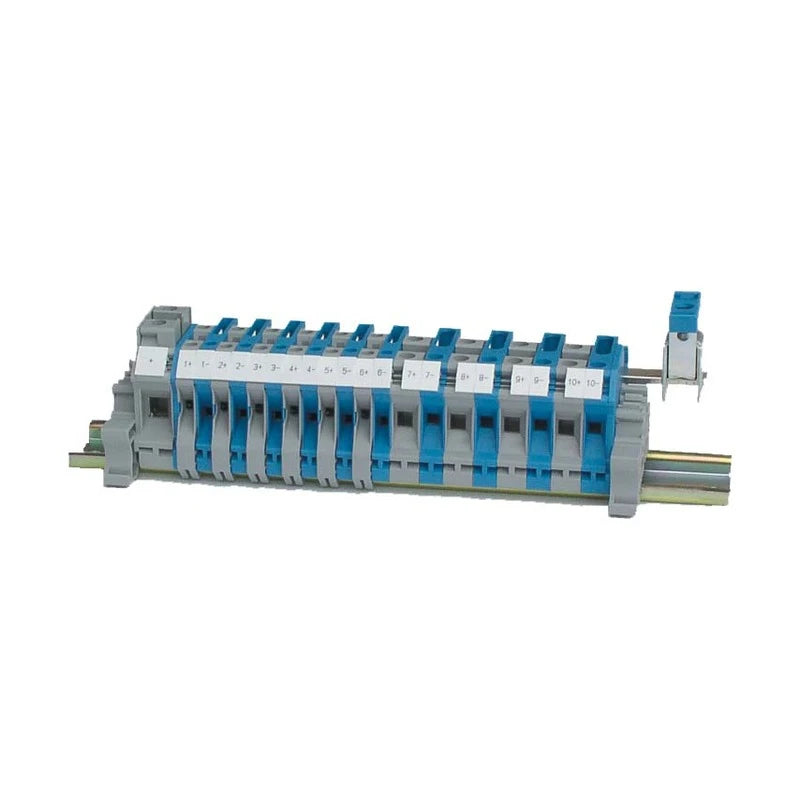

Philippi Terminal Block RKL10

€128,11
€128,11
Tax included.

Order in the distribution box: The Philippi RKL10 provides a professional foundation for your on-board wiring. The pre-assembled terminal block on a DIN rail offers ten consumer terminal pairs and separate collective connections for positive and negative poles – all in one compact, ready-to-install unit.

Tip: Label each terminal directly during installation – this way you will maintain a complete overview of your on-board installation even after years.
brand: philippi
Availability: Low stock
SKU: OB-BB-600041001
Product group:
category:
electrical system
Philippi Reihenklemme RKL10
€128,11
€128,11

  • 10 consumer terminal pairs for a clear, organized on-board distribution
  • Flexible terminal configuration: 6 × 4 mm² and 4 × 6 mm² for different cross-sections
  • Dedicated Pol⁺ connection with 16 mm² for the supply line from the positive pole
  • Solid Pol⁻ connection via 35 mm² copper busbar for secure ground distribution
  • Pre-assembled on DIN rail – ready for immediate installation, no preliminary work required
  • Compact design for space-saving installation in control panels and distribution boxes

Type Philippi RKL10
Consumer terminal pairs 10
Terminal cross-sections (consumer) 6 × 4 mm² / 4 × 6 mm²
Positive terminal 16 mm²
Negative terminal 35 mm² (Cu rail)
Mounting DIN rail (pre-assembled)
Dimensions (L × W × H) 235 × 60 × 60 mm

philippi

Gewicht (ca.): 0.44 kg
