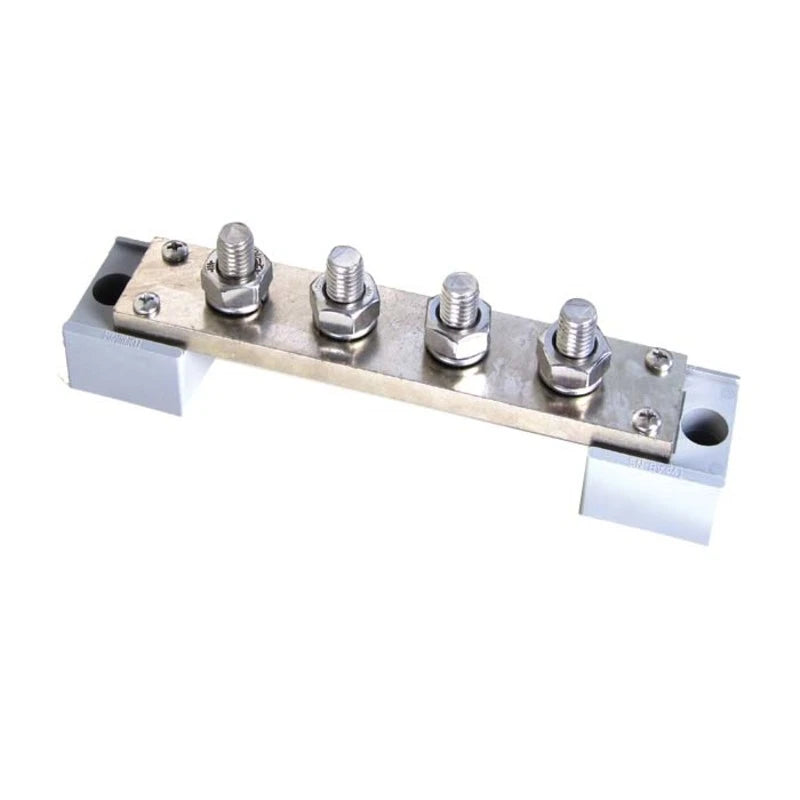

Philippi MSB 4

€71,98
€71,98
Tax included.

When anchor winches, bow thrusters, and other high-current consumers need to be reliably grounded, a busbar that can keep up is essential. The Philippi MSB 4 combines battery supply lines and cable outlets on a galvanically nickel-plated copper busbar – clean, safe, and permanently corrosion-resistant.

Tip: Connect the busbar directly to the negative terminal of the battery with the shortest possible, large-gauge cable to minimize voltage drops under load.
brand: philippi
Availability: Low stock
SKU: OB-BB-080009004
Product group:
category:
electrical system
Philippi MSB 4
€71,98
€71,98

  • Nominal cross-section 300 mm² – designed for large cable cross-sections and high currents
  • Galvanically nickel-plated copper busbar for best conductivity and corrosion protection
  • 4 connections for cable lugs with 10 mm hole (M10) – flexible assignment
  • Mounted on plastic insulating supports for safe, insulated fastening on board
  • Compact dimensions – fits into confined distribution areas in the engine room

Type MSB 4
Function Negative busbar
Rated cross-section 300 mm²
Connections 4 × cable lug with 10 mm hole (M10)
Busbar material Copper, electroplated nickel
Mounting On plastic insulating supports
Dimensions (L × W × H) 180 × 39 × 55 mm

philippi

Gewicht (ca.): 0.9 kg
