By philippi

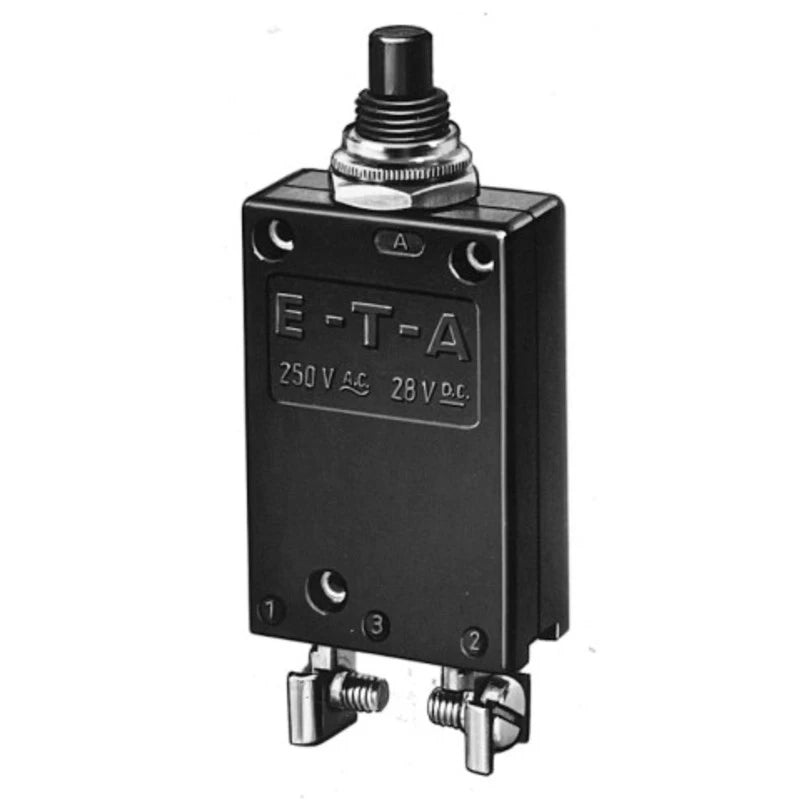

Philippi ETA Circuit Breaker 12A 2-5700-K10-DD

€35,38
€35,38
Tax included.

Protection and switching function in one: The Philippi ETA 25 A circuit breaker combines thermal overcurrent protection with a convenient on/off switching function via push-push actuation. The two-color switch status indicator shows you at a glance whether the circuit is active or interrupted – ideal for professional switch cabinet construction on board.

Tip: When installing in outdoor areas or damp environments, use the optional splash protection to maximize the service life of the switch.
brand: philippi
Availability: Low stock
SKU: OB-BB-125700012
Product group:
category:
electrical system
Philippi ETA Schutzschalter 12A 2-5700-K10-DD
€35,38
€35,38

  • Thermal overcurrent protection and on/off switch in one component – saves space in the control panel
  • Intuitive push-push actuation for safe, fast switching even under difficult conditions
  • Two-color switch status indicator – immediately visible whether the circuit is active
  • Compact single-hole mounting Ø 10 mm with a device width of only 14.5 mm
  • Suitable for DC 28 V and AC 250 V – flexible use in the onboard electrical system
  • Splash protection possible – robust even in humid onboard environments

Type Philippi 2-5700-IG1-K10-DD
Item Number 2-5700-K10-DD
Protection Principle Thermal, single-pole
Function Overcurrent protection with On/Off switching function
Actuation Push-Push
Switching State Indicator Two-color
Rated Current Range 6–25 A
Rated Voltage DC 28 V
Rated Voltage AC 250 V
Mounting Single-hole mounting Ø 10 mm
Connection Screw terminal
Device Width 14.5 mm
Splash Protection Possible

philippi

Gewicht (ca.): 0.03 kg
