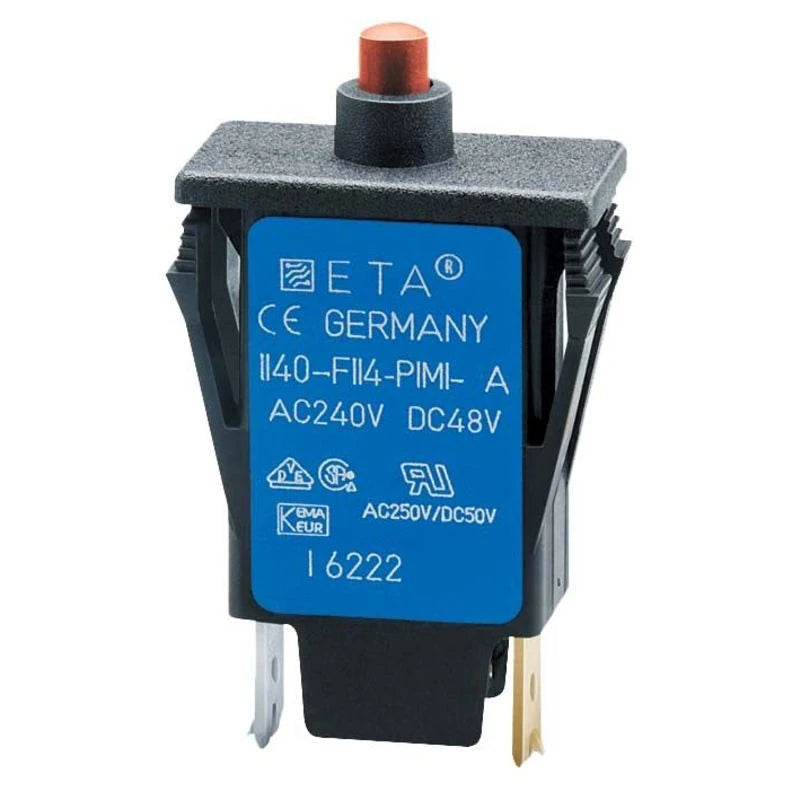

Philippi ETA Circuit Breaker 12A 1140-F114-P1
Compact protection for your on-board electrical circuits: The Philippi E-T-A 1140-F114-P1 is a single-pole thermal miniature circuit breaker that reliably trips before a short circuit or overcurrent can cause damage. Thanks to its snap-action mechanism and trip-free release, it safely switches off – regardless of whether the switch is currently being operated or not. After tripping, it can be easily reset manually, thus permanently replacing a fuse.
Tip: When installing, make sure to select the correct rated current for the respective circuit – the circuit breaker is available in the rated current range from 2 to 16 A. This type is particularly suitable for DC systems above 12/24 V (up to DC 48 V).
Couldn't load pickup availability
- Thermal overcurrent protection with snap-action mechanism – precise, reliable switching behavior
- Trip-free release – trips even if the button is held down
- Resettable by hand – no fuse replacement necessary
- Compact design for installation in Series 100 panels
- Suitable for DC 48 V and AC 240 V – flexible use on board
- Standard compliant with EN 60934 (Circuit Breakers for Equipment standard)
| Type | E-T-A 1140-F114-P1M1 |
|---|---|
| Design | Single-pole, thermal circuit breaker |
| Construction | Compact design |
| Rated current range | 2–16 A |
| Voltage DC | 48 V |
| Voltage AC | 240 V |
| Trip mechanism | Trip-free snap action mechanism |
| Standard | EN 60934 |
| Panel cutout | 22 × 11.3 mm |
| Reset | Manual |
| Suitable for | Philippi control panel Series 100 |
philippi
Gewicht (ca.): 0.01 kg
Herstellerinformationen gemäß GPSR:
PHILIPPI ELEKTRISCHE SYSTEME GMBHNECKARAUE 19
71686 REMSECK
