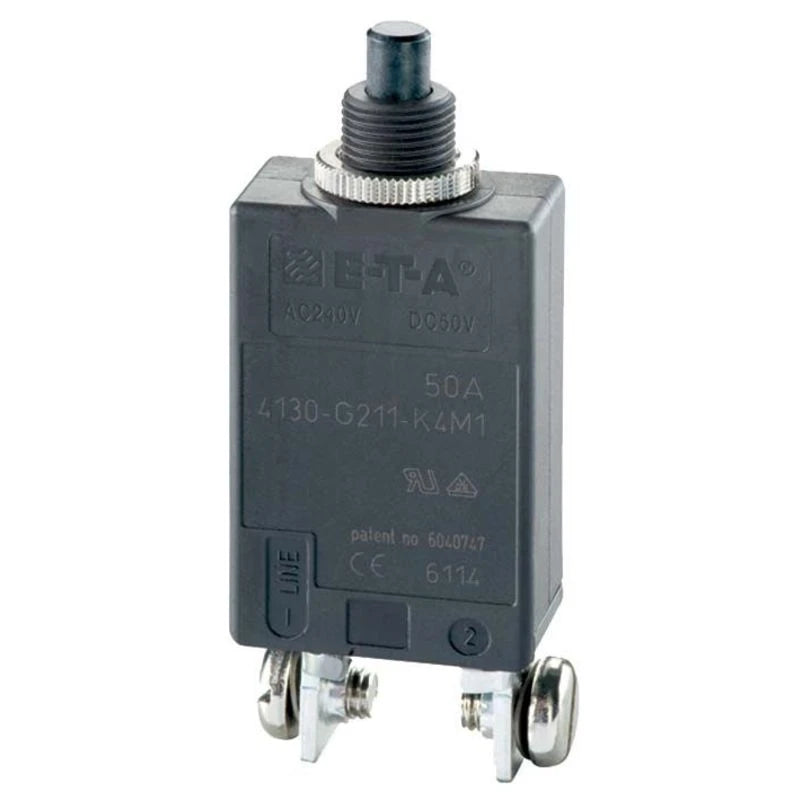

Philippi ETA 4130-G211-K4M1-30A

€39,71
€39,71
Tax included.

Reliable protection in the onboard electrical system: The Philippi ETA 4130-G211-K4M1 is a single-pole thermal circuit breaker with trip-free mechanism – it disconnects the circuit independently in case of overload, regardless of whether the switch is held. Compactly built and designed for DC applications up to 28 V, it fits into any professionally designed onboard electrical system.

Tip: When installing in existing switch panels, drill the hole to exactly Ø 12 mm – this ensures the switch sits snugly and is secured against twisting.
brand: philippi
Availability: Low stock
SKU: OB-BB-141300030
Product group:
category:
electrical system
Philippi ETA 4130-G211-K4M1-30A
€39,71
€39,71

  • Trip-free release - reliably disconnects even with the switch held
  • Thermal tripping principle for reliable overload protection without fuse replacement
  • Compact single-hole mounting Ø 12 mm - easy installation in control panels and distribution boxes
  • Device width only 18 mm - space-saving even in confined installation situations
  • Suitable for DC vehicle electrical systems up to 28 V - suitable for 12 V and 24 V systems

Type Philippi ETA 4130-G211-K4M1
Design Single-pole, thermal circuit breaker
Trip mechanism Trip-free, tamper-proof
Rated voltage DC 28 V
Rated current (this model) 30 A
Rated current range (series) 30–70 A
Mounting Single-hole mounting Ø 12 mm
Device width 18 mm

philippi

Gewicht (ca.): 0.07 kg
