By philippi

Philippi ETA 3130-F11B-H7T1-W29AG3-20A

€28,43
€28,43
Tax included.

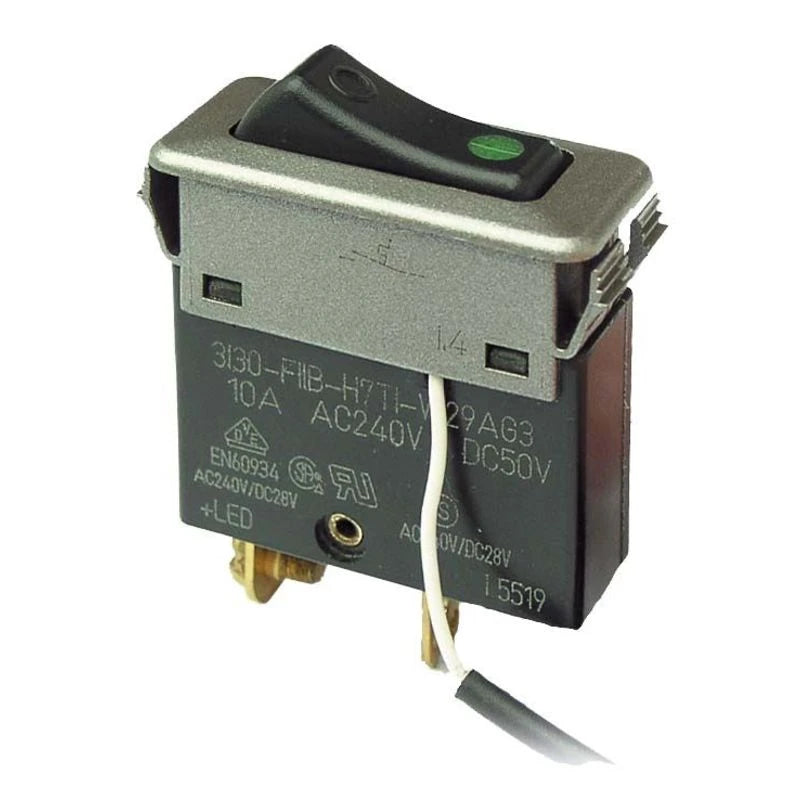

Switch and protect in one: This single-pole DC rocker switch from the Philippi Series 200 combines on-off functionality and integrated overcurrent protection in a single installation device. The LED function indicator shows you at a glance whether the circuit is active – practical and space-saving for panel mounting.

Tip: For a nominal current of 30 A, the device deviates to the width of the two-pole version (mounting cut-out 26.3 × 34.2 mm, device width 29.5 mm) – plan the cut-out in the panel according to the desired nominal current.
brand: philippi
Availability: Low stock
SKU: OB-BB-131302020
Product group:
category:
electrical system
Philippi ETA 3130-F11B-H7T1-W29AG3-20A
€28,43
€28,43

  • Integrated overcurrent protection replaces a separate fuse in the circuit
  • LED function indicator for immediate status control
  • Compact snap-in frame mounting – easy installation without tools
  • Rated voltage up to DC 30 V, rated current 6 to 30 A – versatile
  • Black rocker with silver frame – matches the Philippi Series 200

Type Single-pole DC ON-OFF rocker switch with overcurrent protection
Series Philippi Series 200
Rated voltage DC 30 V
Rated current 6–30 A
Mounting cutout (standard) 14.8 × 34.2 mm
Device width (standard) 18 mm
Mounting cutout (30 A) 26.3 × 34.2 mm
Device width (30 A) 29.5 mm
Mounting Snap frame mounting
Rocker color Black
Frame color Silver
Function indicator LED

philippi

Gewicht (ca.): 0.03 kg
