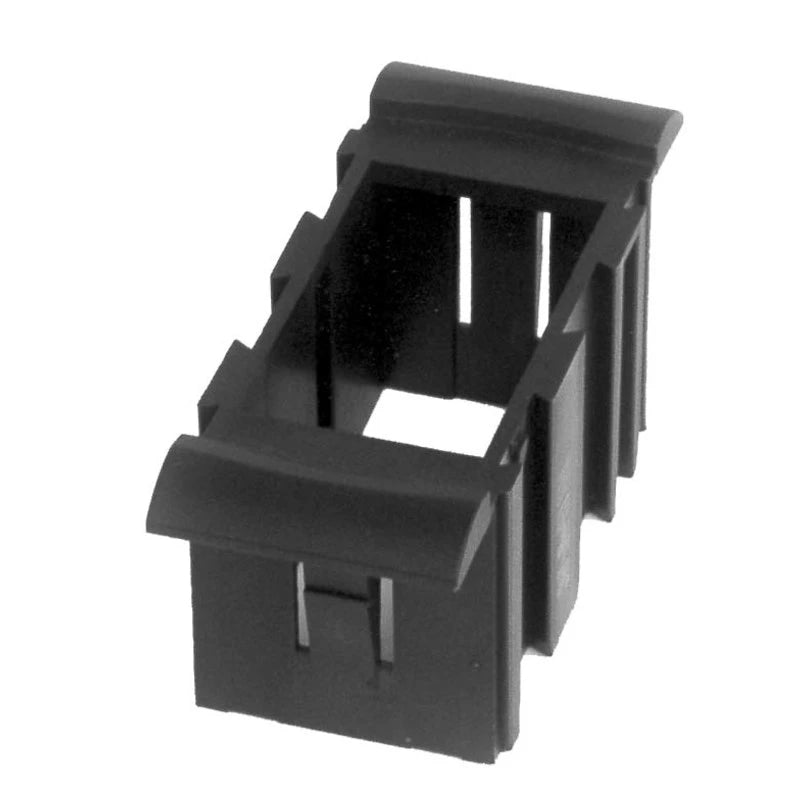

Philippi 3131-MRM Mounting Frame for Mid-Modules
Regular price
€4,66
Regular price
Sale price
€4,66
Unit price
per
Tax included.
Bring order to your switch panel: The Philippi 3131-MRM Mounting Frame Middle Module is the extension piece with which you can flexibly expand your ETA-3131 circuit breaker block with additional positions. Simply line up, snap in – done.
Tip: Plan the total width of your switch panel in advance – each middle module adds exactly 26.2 mm. For the left and right ends, you will also need the corresponding end modules from the Philippi 3131 series.
Couldn't load pickup availability
brand:
philippi
Availability:
Low stock
SKU:
OB-BB-130879101
Product group:
category:
electrical system
Regular price
€4,66
Regular price
Sale price
€4,66
- Stackable and permanently locking – modules connect securely and do not detach on their own
- Each center module widens the overall frame by 26.2 mm for an additional switch position
- Suitable for waterproof ETA 3131 circuit breakers in GRP design
- Snap-in range 3.2–9.5 mm for flexible mounting on different panel thicknesses
- Modular system: frame can be assembled to any desired width
| Type | Philippi 3131-MRM |
|---|---|
| Function | Attachable middle module for mounting frames |
| Suitable for | ETA-3131 circuit breakers in GRP design |
| Snap-in range | 3.2–9.5 mm |
| Width (per module) | 26.2 mm |
| Height | 68 mm |
| Connection type | Permanently snap-locking |
philippi
Gewicht (ca.): 0.03 kg
