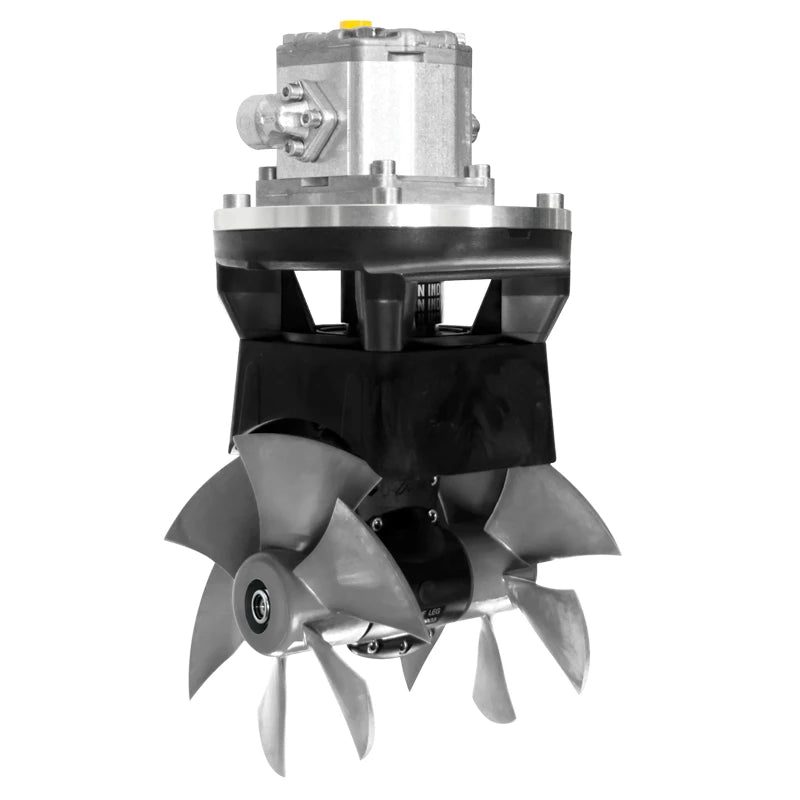

MAXPOWER Hydraulic Bow Thruster CT125 HYD Ø185

€1.755,84
€1.755,84
Tax included.

Precise maneuvering even in wind and current: The CT125 HYD is the most compact hydraulic tunnel thruster in the Maxpower CT-HYD series and delivers up to 125 kg of thrust to the bow. Thanks to its twin propellers and hydraulic drive, it provides powerful, consistent thrust – ideal for motor and sailing yachts with a deep hull.

Tip: When installing, make sure that the tunnel is completely below the waterline and that the hull thickness in the installation area corresponds to the specifications in the installation manual – the specified wall thickness range of 6–7 mm (dimension E) applies to the tunnel sleeve.
brand: Maxpower
Availability: Low stock
SKU: OB-BB-317588
Product group:
category:
Engine technology
MAXPOWER Hydr. Bugstrahlruder CT125 HYD Ø185
€1.755,84
€1.755,84

  • Hydraulic drive – independent of the onboard power supply, constant performance even with the engine running
  • Twin propeller made of composite material for efficient thrust with compact dimensions
  • Up to 125 kg / 275 lbs thrust – reliable support when mooring and maneuvering
  • Tunnel-Ø 185 mm: smallest hydraulic CT-HYD – can be retrofitted even in narrow hulls
  • Designed for motor and sailing yachts with deep keel from 35 to 57 feet
  • Lightweight design with a mere 12 kg dead weight facilitates installation

Model CT125 HYD
Drive Type Hydraulic
Power 13.5 kW
Thrust (max.) 125 kg / 275 lbs
Thrust (rated) 140 kg / 308 lbs
Propeller Twin Propeller
Material Composite
Tunnel Diameter (Dimension D) 185 mm
Dimension A 210 mm
Dimension B 210 mm
Dimension C 215 mm
Dimension E (Hull Thickness) 6–7 mm
Weight 12 kg
Suitable for Motor and sailing yachts with deep foot, 35–57 feet

Maxpower

Gewicht (ca.): 12.0 kg
