By Johnson Pump

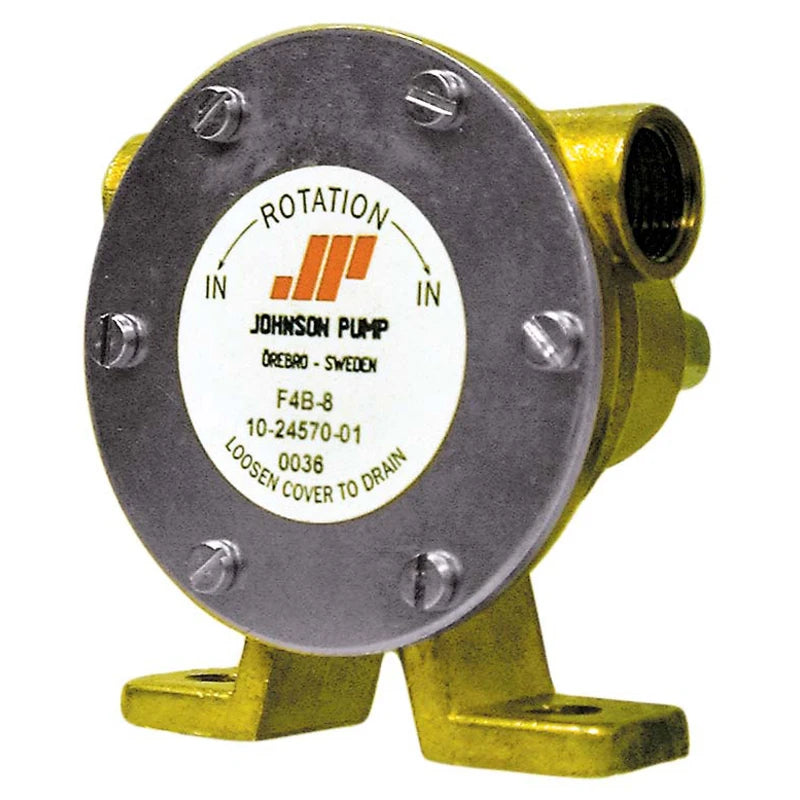

Johnson Impeller Pump F4B-8 with mechanical seal

€311,74
€311,74
Tax included.

Versatile, self-priming, and seawater resistant: the Johnson Pump F4B-8 is a compact bronze pump for heavy-duty use on board. Whether for engine cooling water, bilge, deck washing, or tank filling – this pump works reliably under the toughest conditions at sea.

Tip: Service Kit part number 09-46841 is available, the matching Impeller Kit has part number 09-810B-1. The pump is also available with a nitrile impeller upon request – ideal for media that could damage a standard impeller.
brand: Johnson Pump
Availability: Low stock
SKU: OB-BB-10-24570-01
Product group:
category:
equipment
Johnson Impellerpumpe F4B-8 mit mech. Dichtg.
€311,74
€311,74

  • Bronze pump housing – permanently seawater resistant and corrosion-proof
  • Mechanical seal for low-maintenance, long-life operation
  • Stainless steel drive shaft with permanently lubricated double ball bearings
  • Self-priming under all conditions – reliable start-up without pre-filling
  • Versatile applications: cooling water, bilge, deck wash, refueling, tank management
  • Compact, lightweight design weighing only 0.8 kg

Pump body Bronze
Shaft Stainless Steel
Bearings Permanently lubricated sealed double ball bearings
Seal Mechanical seal
Cam Full or half cam
Port Type BSP or NPT
Port size ¾″ BSP
Drive shaft Ø 12 mm
Impeller (standard) 09-108B-1 (09-810B-9)
Impeller (option) Nitrile impeller on request
Length 111 mm
Height 80 mm
Width 50 mm
Weight 0.8 kg
Service kit 09-46841
Impeller kit 09-810B-1

Johnson Pump

Gewicht (ca.): 1.01 kg
