By Johnson Pump

Johnson CM90P7Pump 12V / 38 mm connection

€537,50
€537,50
Tax included.

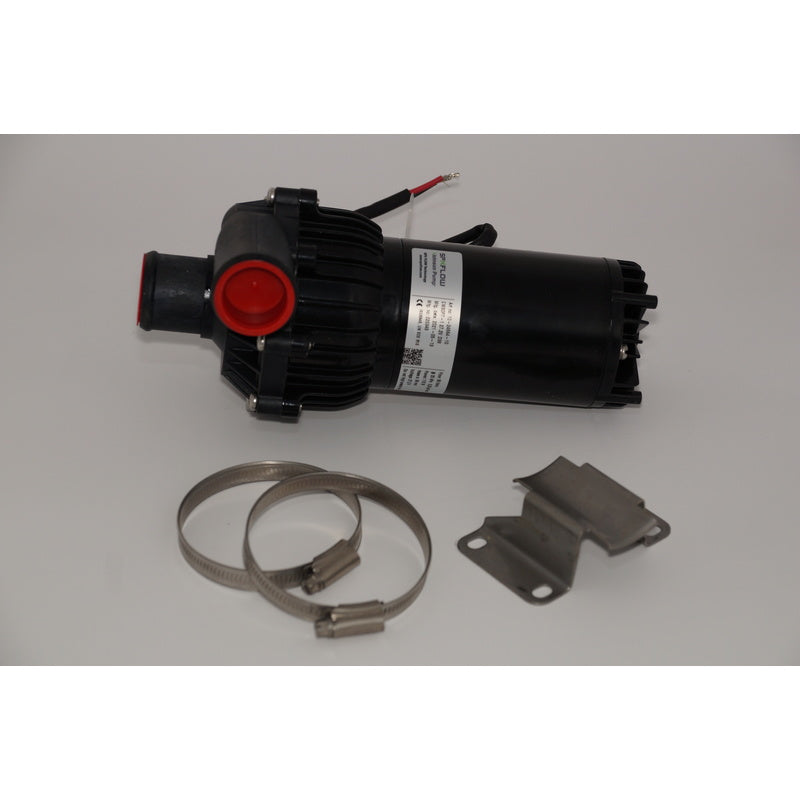

When reliability is essential on board, the Johnson Pump CM90 makes no compromises. The robust centrifugal pump is designed for continuous operation and pumps fresh water as well as water-glycol mixtures – from arctic sub-zero temperatures up to the 100°C limit. Thanks to the sealed, ball-bearing permanent magnet motor and IP67 protection, it operates reliably even under demanding on-board conditions.

Tip: For glycol applications, always ensure that all connected hoses and fittings are also suitable for glycol mixtures. Before final installation, align the universal bracket so that the pump remains easily accessible – this simplifies later maintenance.
brand: Johnson Pump
Availability: Low stock
SKU: OB-BB-10-24664-09
Product group:
category:
equipment
Johnson CM90P7Pumpe 12V / 38 mm Anschluss
€537,50
€537,50

  • Continuous-duty design with ball-bearing permanent magnet motor – runs for hours without overheating
  • IP67 protection – dustproof and protected against temporary immersion
  • Wide temperature range from −40 °C to +100 °C – suitable for fresh water and water-glycol mixtures up to 60% glycol
  • Max. system pressure 2.5 bar – powerful for long or branched pipe systems
  • Dry-running protection up to 30 minutes – protects the pump during brief periods of dry operation

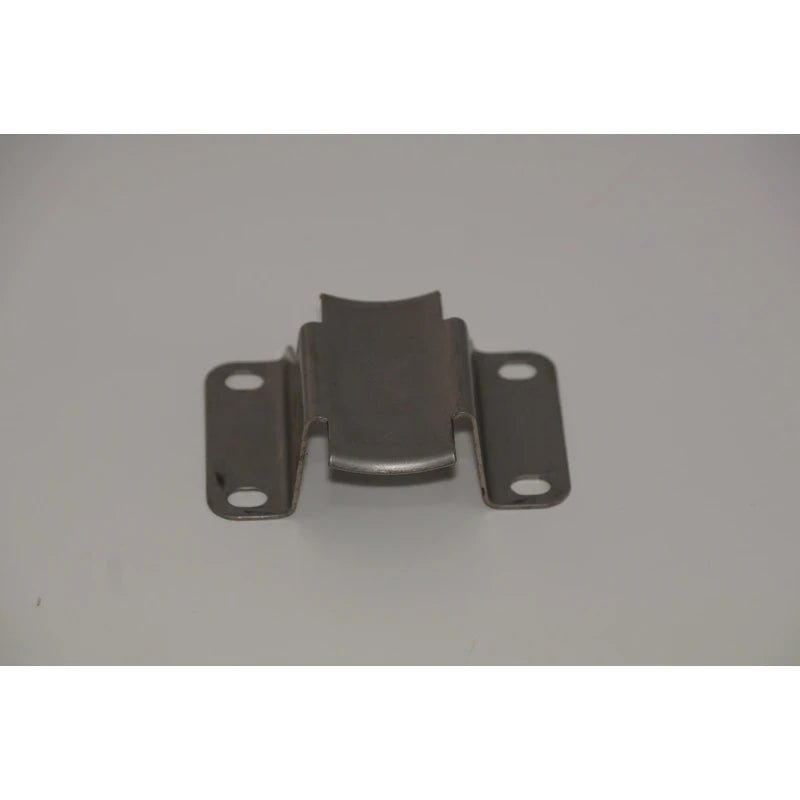

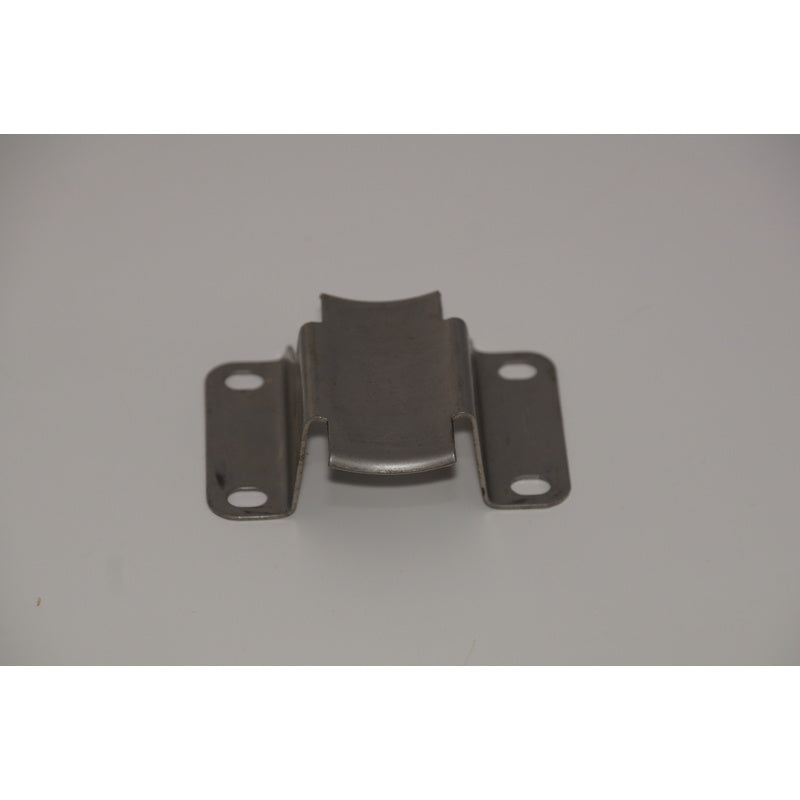

  • Universal bracket with flat mounting included – flexible installation options at no extra cost

Pump Housing PPA Thermoplastic
Impeller PA12 Thermoplastic
Shaft Stainless Steel
Motor Type Permanent magnet, ball bearing, continuous operation
Voltage 12/24 V DC
Protection Class IP67
Hose Connection Ø 38 mm (1¼")
Fluid Medium Fresh water, water-glycol mixture (max. 60% glycol)
Fluid Temperature −40 °C to +100 °C
Max. System Pressure 2.5 bar
Max. Dry Run 30 minutes
Power Consumption max. 125 W
Length 253 mm
Width 120 mm
Height 149.5 mm
Weight 3.9 kg

Johnson Pump

Gewicht (ca.): 3.04 kg
