By Johnson Pump

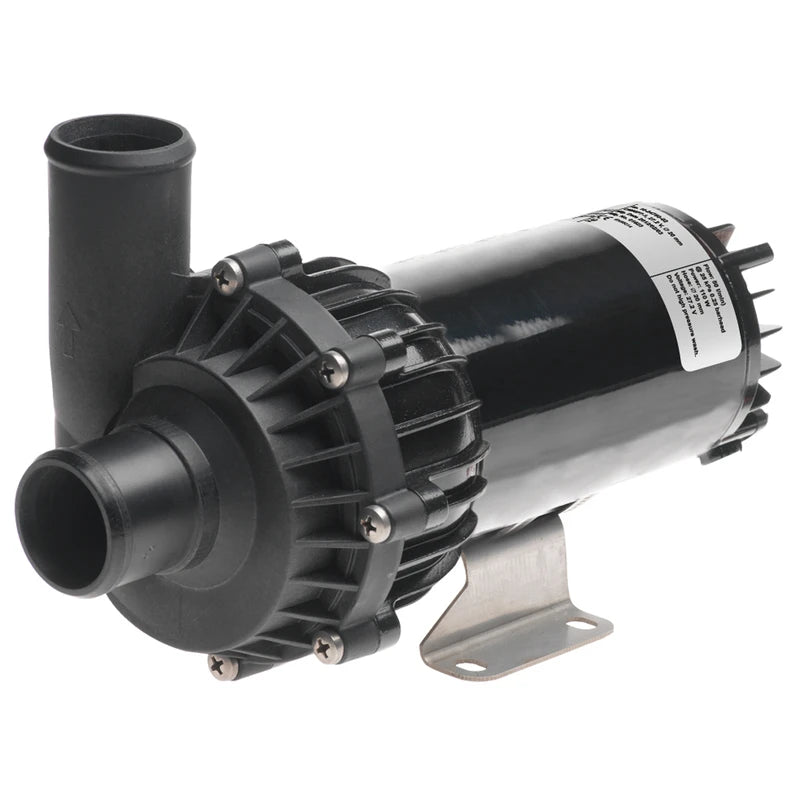

Johnson CM90P7-1 12V Circ. with bracket Dia 20

€535,79
€535,79
Tax included.

When reliability counts on board, the Johnson Pump CM90 makes a good impression: This compact centrifugal pump is designed for continuous operation and handles both fresh water and glycol-water mixtures up to 60% – ideal for cooling and heating circuits on yachts. The ball-bearing permanent magnet motor and the robust thermoplastic housing ensure that the pump will reliably perform its duties even under harsh onboard conditions.

Tip: In case of dry running, the pump may operate for a maximum of 30 minutes without liquid – make sure that the system is completely filled and bled before commissioning.
brand: Johnson Pump
Availability: Low stock
SKU: OB-BB-10-24750-09
Product group:
category:
equipment

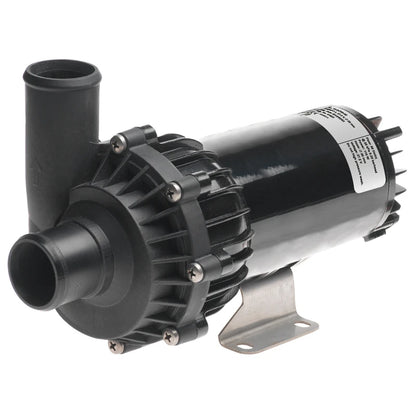

Johnson CM90P7-1 12V Circ.w bracket Dia 20
€535,79
€535,79

  • Suitable for continuous operation thanks to ball-bearing permanent magnet motor – no frequent replacement necessary
  • Suitable for water and glycol mixtures up to 60% – flexible for use in cooling and heating circuits
  • Wide temperature range from −40 °C to +100 °C – reliable in winter and tropical operation
  • Protection class IP67 – safe against dust and temporary submersion
  • Ø 20 mm hose connection (¾") for uncomplicated integration into existing systems
  • Universal bracket and flat mounting included – ready for immediate use

Voltage 12 V DC
Power Consumption Max. 125 W
Protection Class IP67
Motor Type Permanent magnet, ball bearing, suitable for continuous operation
Pump Housing PPA, Thermoplastic
Impeller PA12, Thermoplastic
Shaft Stainless steel
Pumped Medium Water / glycol mixture up to max. 60% glycol, pure fresh water
Liquid Temperature Min. −40 °C / Max. +100 °C
System Pressure Max. 2.5 bar
Hose Connection Ø 20 mm (¾")
Dry Running Max. 30 minutes
Length 255 mm
Width 120 mm
Height 140.5 mm
Weight 3 kg

Johnson Pump

Gewicht (ca.): 0.27 kg
