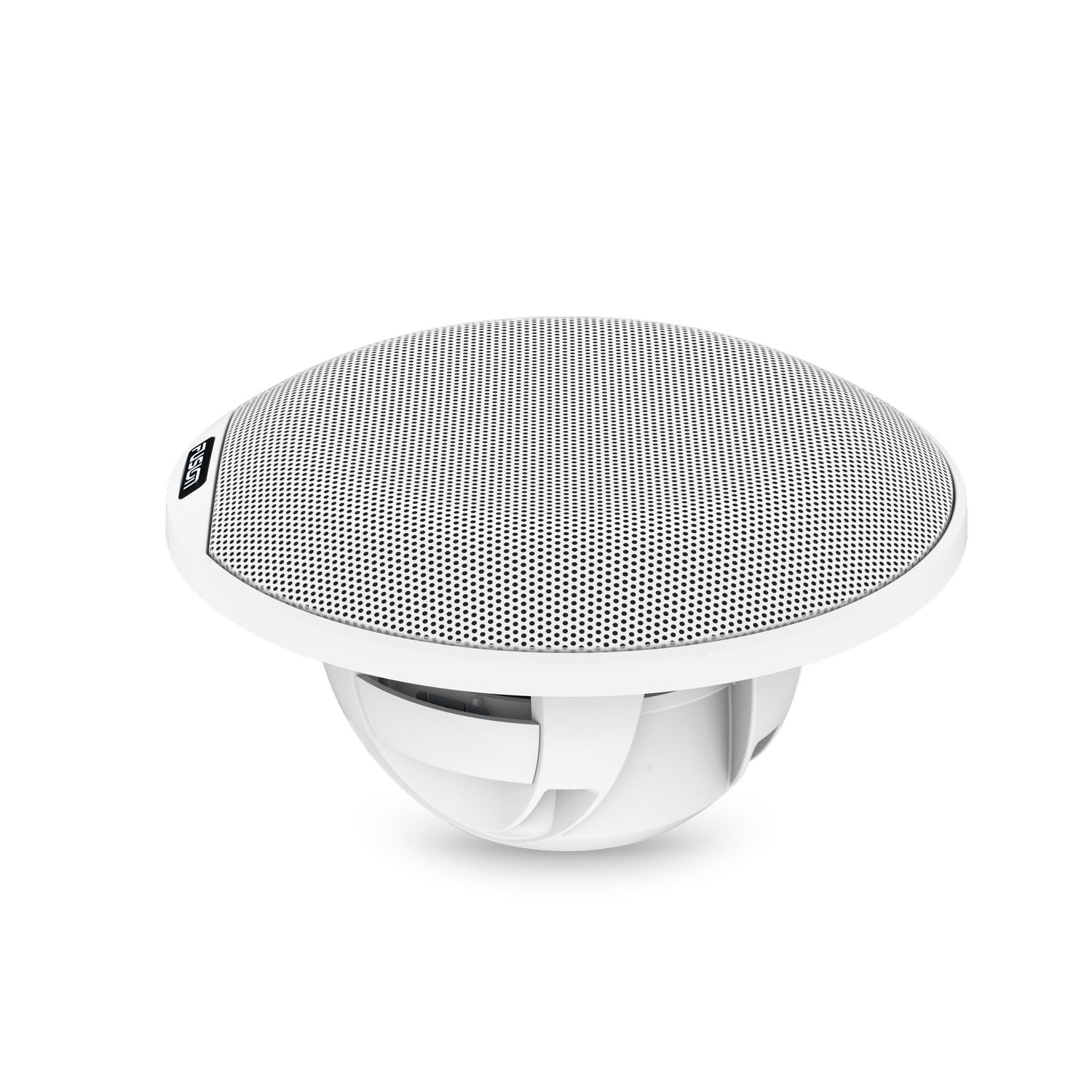

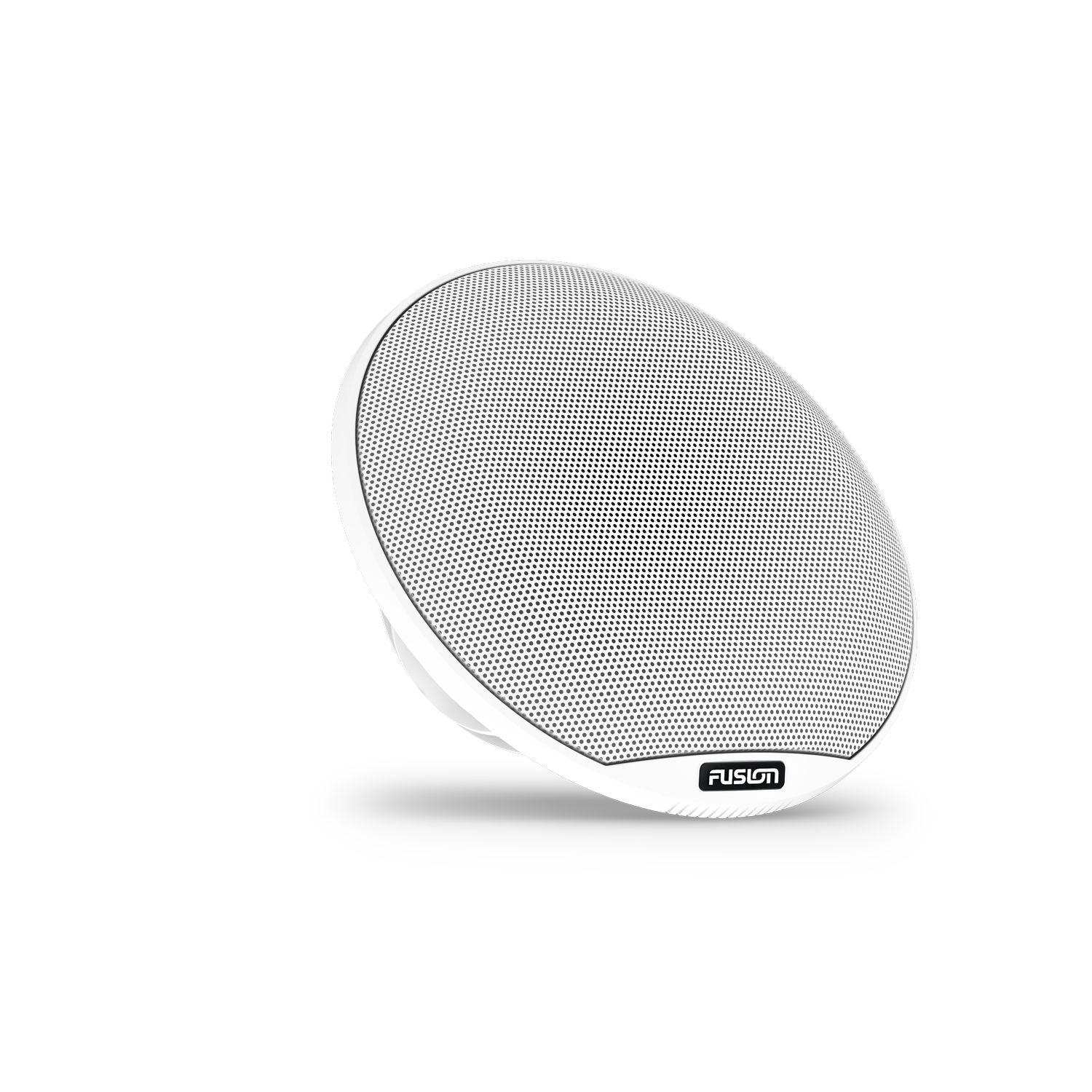

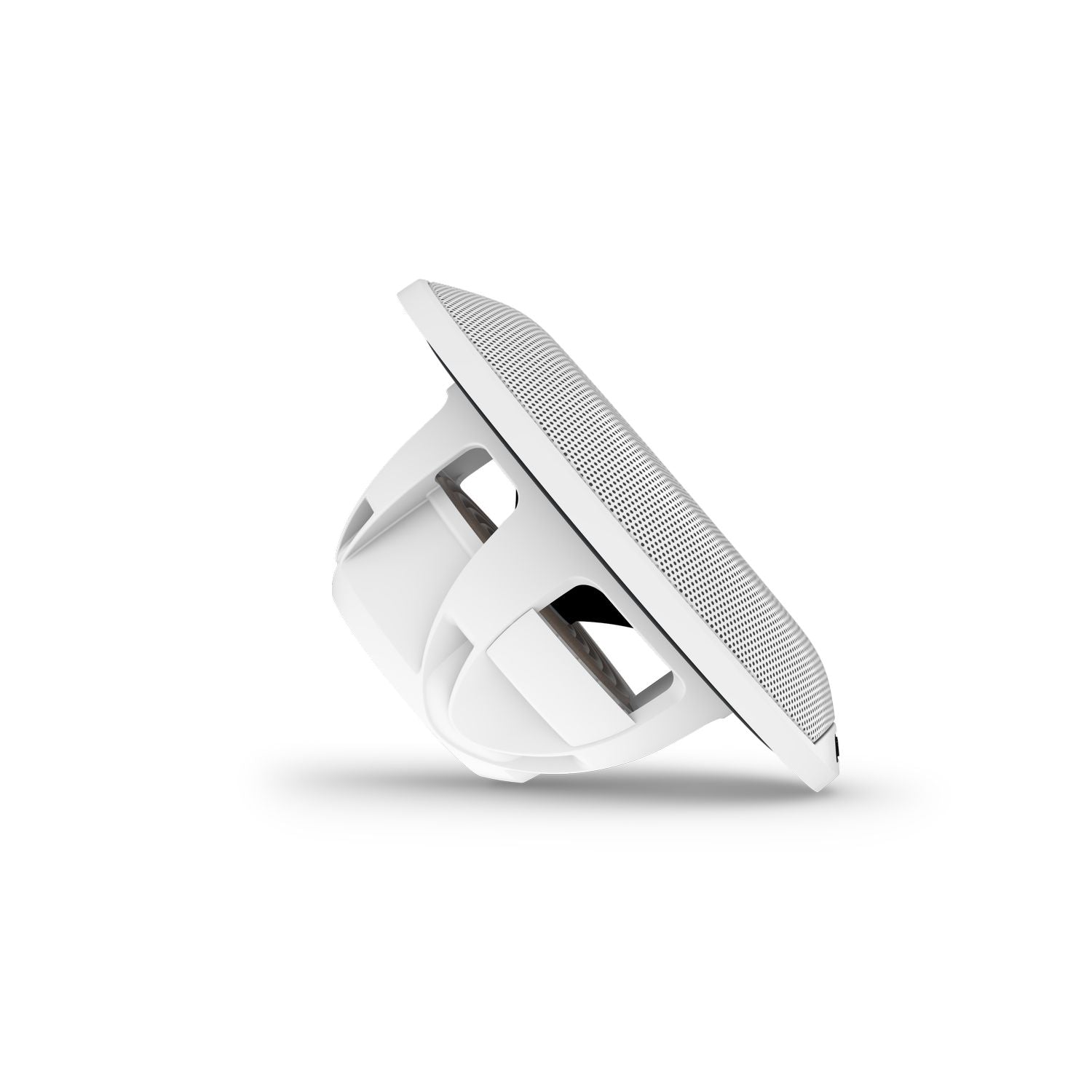

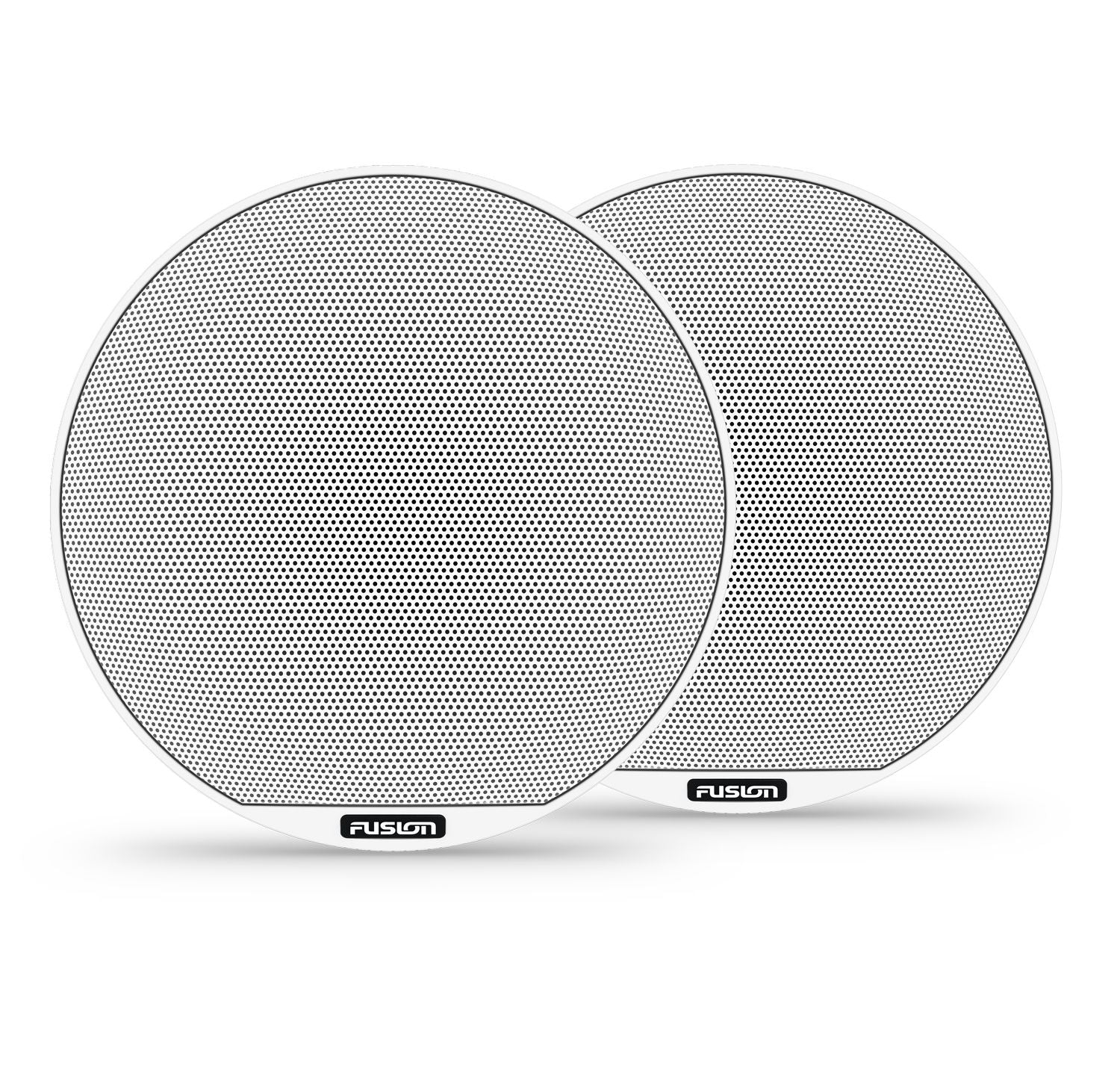

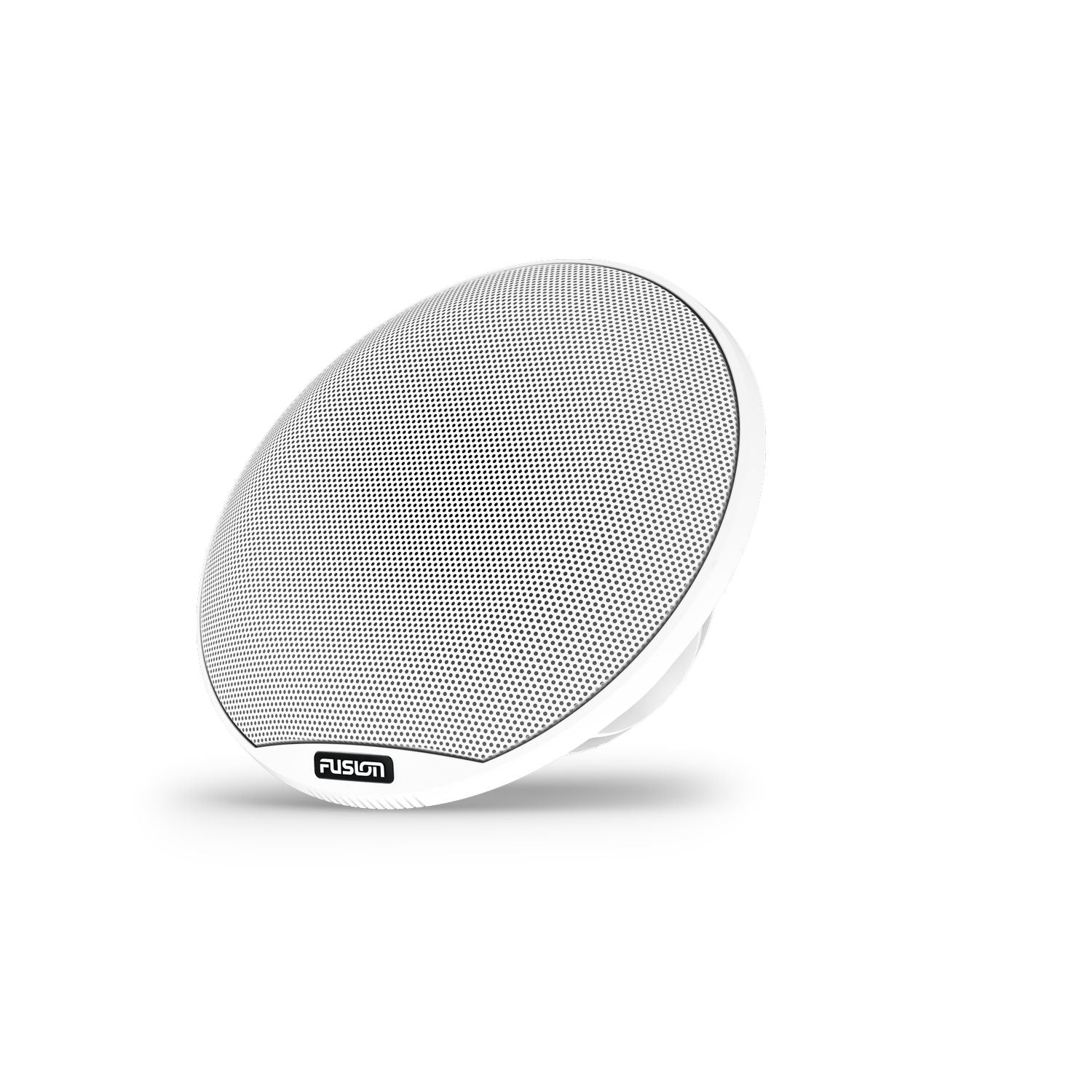

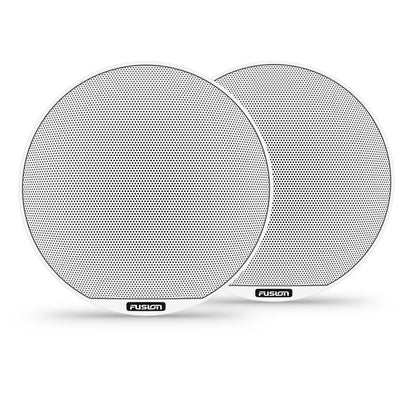

Fusion Signature i3 Classic Speakers – CURV Cone with Silk Dome Tweeter
€349,90 - €468,90
Tax included.
Crystal-clear sound on the water: The Fusion Signature i3 Classic combines advanced CURV composite cone technology with a fine silk dome tweeter – for sound quality you've never heard on board before. The fully sealed enclosure with integrated crossover ensures an acoustically tuned, ready-to-use unit.
Tip: When installing, make sure there is sufficient mounting depth behind the mounting surface – this varies between 79 and 86 mm depending on the size. Waterproofing the mounting screws prevents spray water from entering the interior of the boat.
Regular price
€349,90
Regular price
€349,90
Sale price
€349,90
Unit price
per
Couldn't load pickup availability
brand:
Fusion
Availability:
Low stock
SKU:
68-010-02771-00
Product group:
category:
Navigation & Audio > Audio > Speakers & Subwoofers
Regular price
€349,90
Regular price
€349,90
Sale price
€349,90
- CURV composite cone technology delivers distortion-free low-frequency and defined, powerful bass
- Silk dome tweeter for smooth upper-frequency response and increased efficiency
- Fully sealed crossover components – providing a full-range sound specifically tuned for marine use
- High-efficiency 90-91 dB sensitivity for powerful sound even with low amplifier power
- Selectable in three sizes (6.5 / 7.7 / 8.8 inches) for flexible installation options on board
- Marine-optimized design in white – perfect for the cockpit and saloon
| Model 6.5 inch | SG-F653W |
|---|---|
| Model 7.7 inch | SG-F773W |
| Model 8.8 inch | SG-F883W |
| Peak Power | 230 W (6.5) / 280 W (7.7) / 330 W (8.8) |
| Rated RMS Power | 75 W (6.5) / 100 W (7.7) / 130 W (8.8) |
| Efficiency (1 W/1 m) | 90 dB (6.5) / 91 dB (7.7) / 91 dB (8.8) |
| Frequency Range | 70 Hz – 22 kHz (6.5) / 60 Hz – 22 kHz (7.7) / 50 Hz – 20 kHz (8.8) |
| Impedance | 4 Ohm |
| Tweeter Type | Silk Dome |
| Cone Material | CURV (Composite Cone) |
| Voice Coil Diameter | 1.2 (6.5) / 1.4 (7.7) / 1.5 (8.8) |
| Mounting Ø / Outer Ø | 136 / 200 mm (6.5) / 156 / 220 mm (7.7) / 188 / 247 mm (8.8) |
| Mounting Depth | 79 mm (6.5) / 86 mm (7.7) / 79 mm (8.8) |
| Color | White |
| Enclosure | Fully sealed, with integrated crossover |
Fusion
Gewicht (ca.): 3.9 kg
