By Digital Yacht

Digital Yacht NMEA 2000 3-meter Backbone Cable

€40,70
€40,70
Tax included.

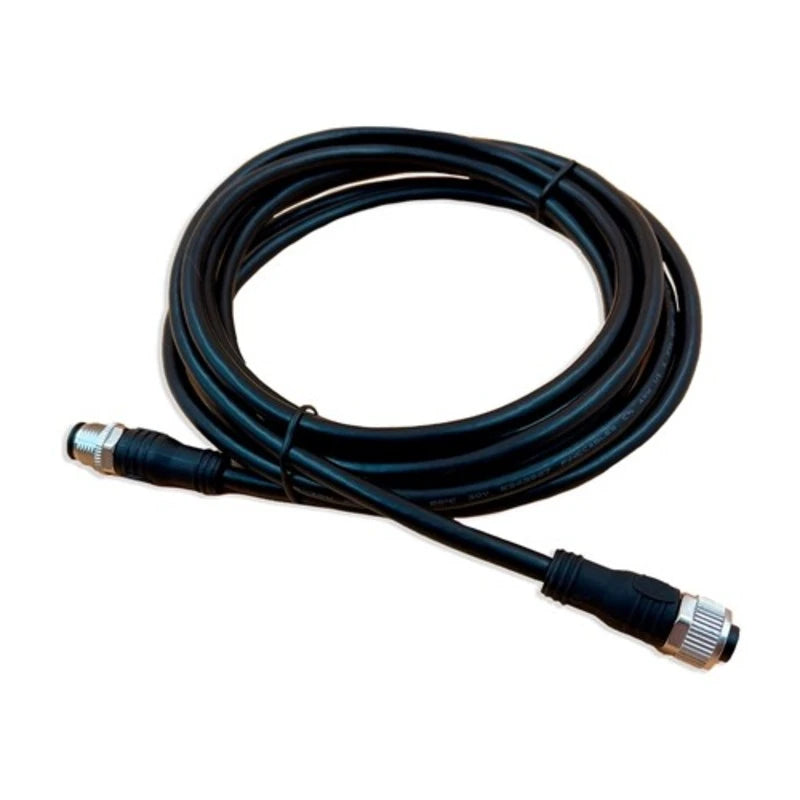

Reliable connections in an NMEA 2000 network start with the right cable. This 3-meter drop cable from Digital Yacht connects devices and instruments on board to the NMEA 2000 backbone – permanently corrosion-proof and waterproof to IP68 thanks to gold-plated metal connectors.

Tip: You can daisy-chain several of these drop cables directly to achieve the desired backbone length. Pay attention to the network rules: A single connection cable may not exceed 6 m in length, and the sum of all drop cables must remain below 76 m.
brand: Digital Yacht
Availability: Low stock
SKU: OB-BB-ZDIGN23M
Product group:
category:
Navigation & Audio
Digital Yacht NMEA 2000 3 Meter-Verbindungskabel
€40,70
€40,70

  • Metal plug instead of plastic – higher contact reliability and long service life in saltwater environments
  • Waterproof to IP68 – resists splashes and temporary submersion
  • Standard Micro-C connectors – universally compatible with NMEA 2000 devices from all common manufacturers
  • Flexible to use – can be used as a drop cable or a backbone segment
  • Multiple cables can be combined – up to 76 m total backbone length and up to 50 devices possible in the network

Cable length 3 m
Max. length per connection cable 6 m
Max. total length of all connection cables < 76 m
Max. number of devices in the network 50
Connector NMEA 2000 Micro-C (on both sides)
Connector material Metal
Protection class IP68
Application Drop cable and backbone cable
Compatibility Universal with NMEA 2000 devices from common manufacturers

Digital Yacht

Gewicht (ca.): 0.18 kg
