By Digital Yacht

Digital Yacht NMEA 2000 Transducer

€559,60
€559,60
Tax included.

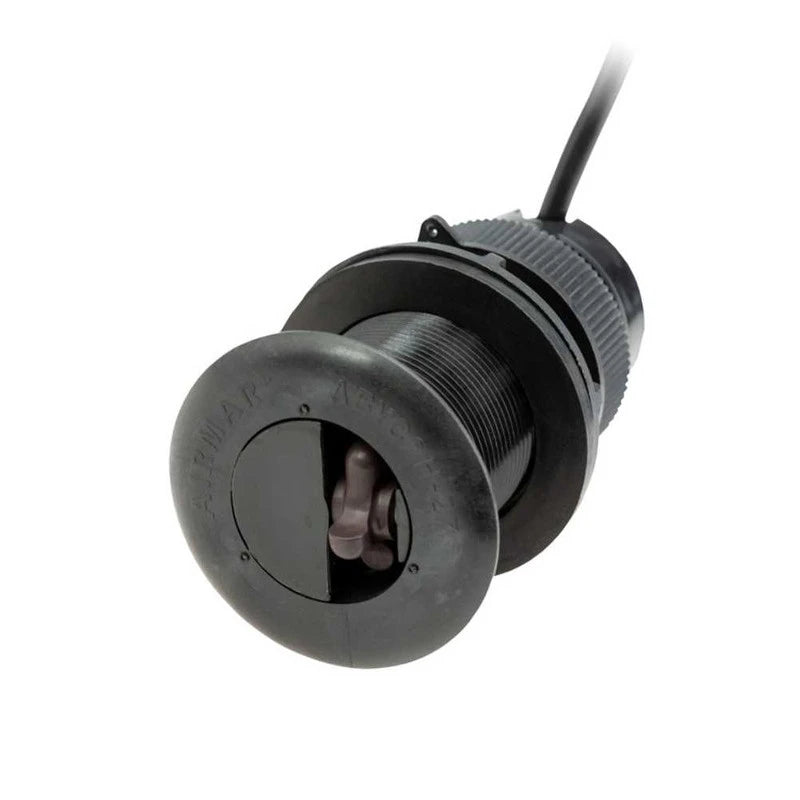

Three measurements, one sensor, one plug: The DST810 provides you with water depth, speed through water, and water temperature via NMEA 2000 – simply by plugging it into your existing bus as a T-connector. Additionally, it features a built-in attitude sensor for heel and trim, as well as Bluetooth for precise calibration via an app.

Tip: Calibrate the transducer after installation with the Digital Yacht app while sailing on a known course and in calm waters – the heel compensation ensures particularly accurate speed readings. The stored calibration then applies simultaneously to all NMEA 2000 instruments on the network.
brand: Digital Yacht
Availability: Low stock
SKU: OB-BB-ZDIGDST810
Product group:
category:
Navigation & Audio
Digital Yacht Geber NEMA 2000
€559,60
€559,60

  • 5 measurements in one sensor – depth, speed, water temperature, heel and trim
  • NMEA 2000 direct connection – simply plug into the bus via a drop cable (included), no additional interface required
  • Fast 5 Hz speed updates and 10 Hz updates for heel and trim – ideal for racing and speed trimming
  • Bluetooth calibration via app (iOS & Android) with heel compensation – calibration data permanently stored in the sensor
  • Temperature sensor with ±0.2 °C accuracy for precise water temperature readings
  • 235 kHz frequency avoids interference with other sonar systems on board

Manufacturer / Model Digital Yacht DST810
Measurements Depth, Speed, Water Temperature, Heel, Trim
Interface NMEA 2000
Echo Sounder Frequency 235 kHz
Depth Range 0.5 – 100 m
Speed – Update Rate 5 Hz
Heel / Trim – Update Rate 10 Hz
Temperature Accuracy ±0.2 °C (±0.1 °F)
Housing Material Plastic
Hull Dead Rise up to 22°
Calibration Bluetooth, App for iOS and Android
Cable Included NMEA 2000 Drop Cable included

Digital Yacht

Gewicht (ca.): 0.9 kg
