By Crosseven

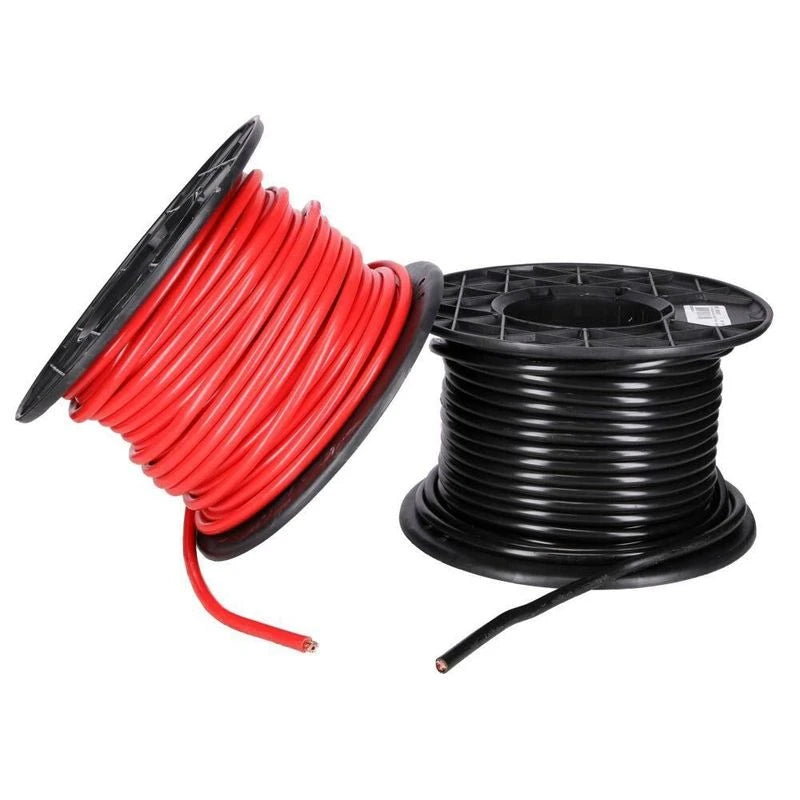

Crosseven Flexible Battery Cable - 16 mm² - red

€6,42
€6,42
Tax included.

When flexibility and reliability matter, you'll be well-equipped with this battery cable from Crosseven. The highly flexible single-core cable with a 16 mm² cross-section is ideal for use on board – whether for battery connections, ground lines, or other power supply tasks. You order exactly the length you need – by the meter, up to a maximum of 100 meters.

Tip: Before ordering, calculate the exact cable requirements, including reserve length for repair loops. Always adhere to the minimum bending radius (fixed 7 × d, moving 15 × d) to protect the insulation's lifespan.
brand: Crosseven
Availability: Low stock
SKU: OB-BB-P201984
Product group:
category:
electrical system
Crosseven Flexibles Batteriekabel - 16 mm² - rot
€6,42
€6,42

  • Highly flexible - easy to lay and bend even in tight spaces
  • Sold by the meter up to 100 m - you order exactly the length you need, no waste
  • Rated voltage 300/300 V, test voltage 1,500 V - safely dimensioned for onboard applications
  • Non-flame propagating according to NF C 32-070/C2 and IEC 60332-11 - increased safety on board
  • Wide temperature range up to +70 °C - reliable even with heat in the engine room
  • High insulation resistance (min. 20 MΩ × km) - reliable electrical isolation

Cross-section 16 mm²
Color Black
Version Highly flexible single core cable, sold by the meter
Max. order length 100 m
Rated voltage Uo/U 300/300 V
Test voltage 1,500 V
Conductor resistance Complies with IEC 60228
Insulation resistance Min. 20 MΩ × km
Minimum bending radius fixed 7 × d
Minimum bending radius in motion 15 × d
Operating temperature fixed −30 °C / +70 °C
Operating temperature in motion −5 °C / +70 °C
Fire behavior Non-flame propagating according to NF C 32-070/C2 and IEC 60332-11

Crosseven

Gewicht (ca.): 20.0 kg
