By Crosseven

Crosseven Alinpomp/F - Ø 20 mm

€9,67
€9,67
Tax included.

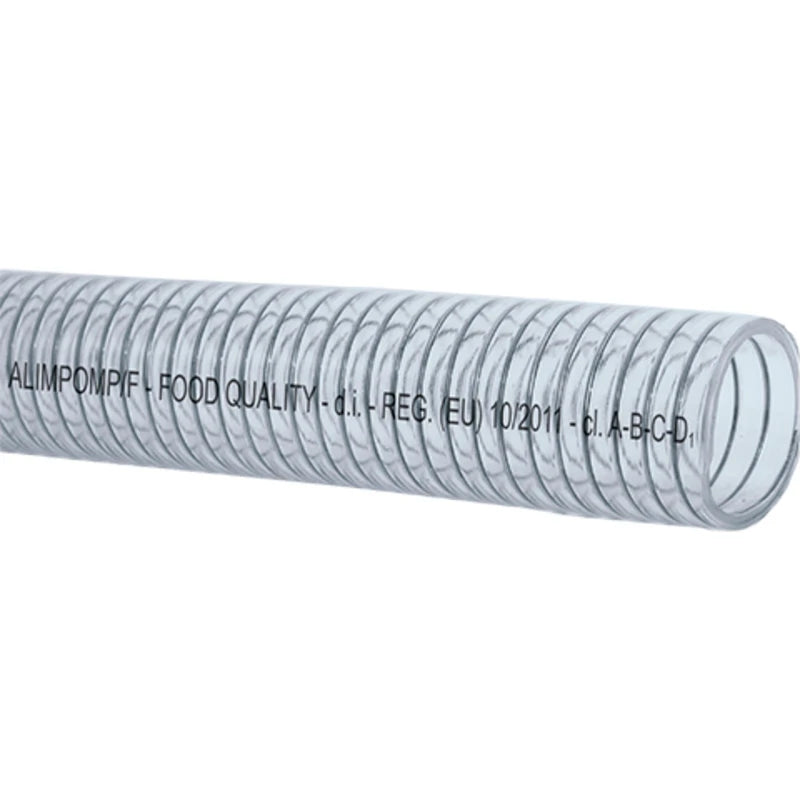

Clean, safe and at a glance: The Crosseven Alinpomp/F is a crystal-clear PVC hose with an embedded steel spiral – you immediately see what is flowing through, and the hose remains dimensionally stable. Thanks to FDA approval, it is ideal onboard wherever food, drinking water or beverages are transported.

Tip: When laying, pay attention to a tight bending radius – the minimum bending radius is 50 mm. Tighten hose clamps evenly to avoid damaging the soft PVC casing.
brand: Crosseven
Availability: In stock
SKU: OB-BB-TPSAL0880200260060HTTTFI1
Product group:
category:
Engine technology
Crosseven Alinpomp/F - Ø 20 mm
€9,67
€9,67

  • Crystal clear – flow visible at all times, contaminants immediately recognisable
  • Steel spiral prevents kinking and collapsing even under suction
  • Food-safe according to FDA – safe for drinking water and foodstuffs
  • Up to 5 bar operating pressure for demanding pumping and pressure applications
  • Temperature range -10 to +60 °C for year-round use
  • Sold by the metre up to 60 m in one piece – you order exactly the length you need

Inner Ø 20 mm
Outer Ø 27 mm
Wall thickness 3.5 mm
Insert Steel spiral
Material PVC, crystal clear
Food grade FDA compliant
Operating pressure (OP) 5 bar
Bending radius (BR) 50 mm
Temperature range –10 to +60 °C
Sales unit Per meter (price per meter)
Max. continuous length 60 m

Crosseven
