By BEP

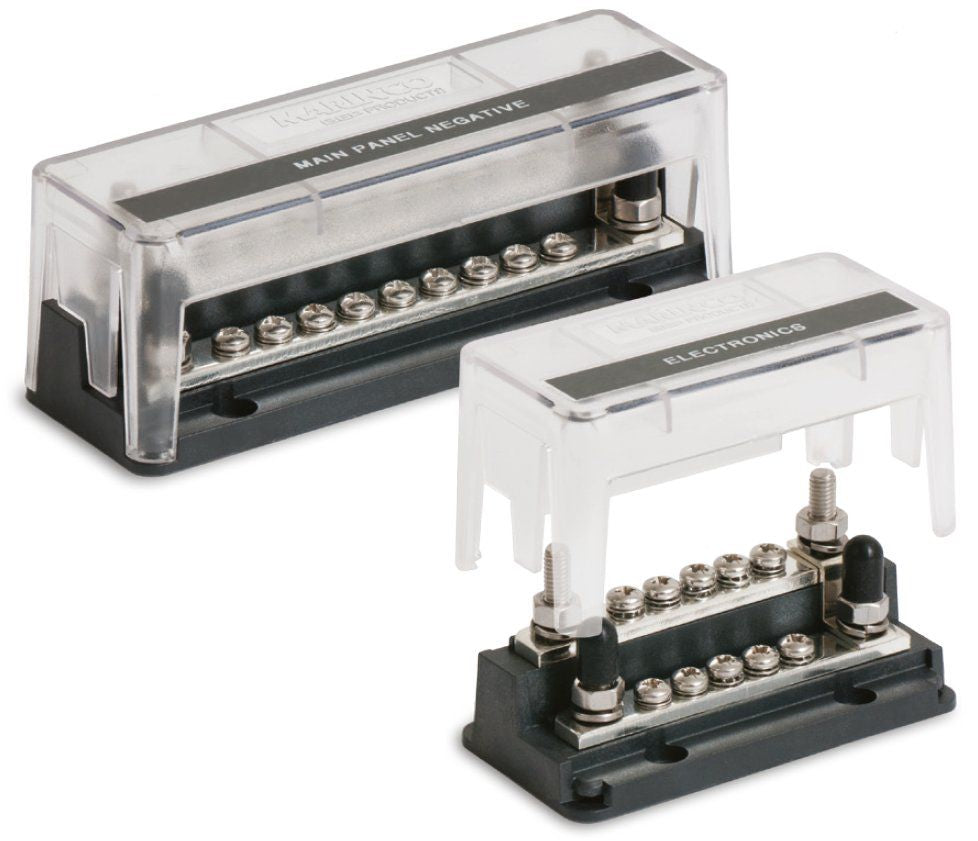

BEP Pro Installer Busbar Type Z – double row, 10 or 18 way

€36,80 - €57,40
Tax included.

Order in the switch cabinet begins with the right distribution: The BEP Pro Installer Bus Bar Type Z combines all onboard power circuits compactly on a two-row, two-level rail. With up to 18 connections and a maximum continuous current of 200 A per rail, it brings power and clarity to every electrical installation on board.

Tip: Make sure to distribute the main supply lines evenly across both rails to avoid exceeding the maximum current of 200 A per rail. Label each output directly during installation – this considerably simplifies troubleshooting later.

€36,80
€36,90 €36,80
-€0,10
brand: BEP
Availability: Low stock
SKU: MV-777-Z10W-200
Product group:
category:
Electrical systems > On-board power supply technology > Distribution and busbars
BEP Pro Installer Sammelschiene Typ Z – zweireihig
€36,80
€36,90 €36,80

  • Double-row, two-level design saves valuable space in the switch cabinet
  • 10 or 18 terminals – selectable depending on the number of onboard circuits
  • Suitable for powerful onboard electrical systems with up to 200 A per rail
  • 4 × M6 stainless steel connection threads for corrosion-resistant main cable connections
  • Self-locking washers on the 4 mm terminals prevent loose connections due to vibrations

Versions 10-way / 18-way
Design Two-row, two-stage
Connection thread 4 × M6, stainless steel
Connections 10 or 18 × 4 mm with self-locking washers
Max. continuous current 200 A per rail
Max. voltage 50 V DC

BEP

Gewicht (ca.): 0.2 kg
