By BEP

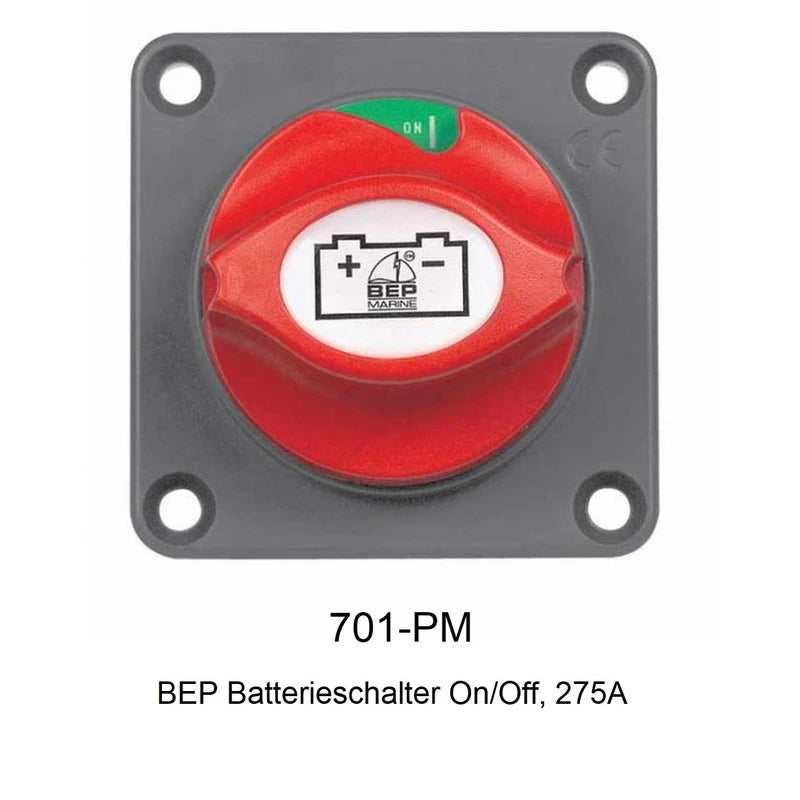

BEP, Battery Switch Panel, 275A

€42,62
€42,62
Tax included.

Full control over your onboard power supply – flush-mounted in the switch panel. The BEP Battery Switch Panel is specially designed for direct installation in instrument panels and reliably disconnects your battery with a continuous current of 275 A. Thanks to its compact design and standardized cutout, it seamlessly integrates into any existing panel.

Tip: Before installation, check whether there is sufficient installation depth behind the panel for cables and connections. The captive inserts for 4.8 mm nuts enable a secure cable connection – use suitable cable lugs for a corrosion-free contact.
brand: BEP
Availability: In stock
SKU: OB-BB-701-PM-BEP
Product group:
category:
electrical system
BEP
€42,62
€42,62

  • 275 A continuous current – sufficient for demanding on-board systems
  • Standard 52 mm cutout (standard instrument hole) for easy installation without special tools
  • Compact panel-mount design – ideal for space-saving control panels
  • Integrated captive inserts for 4.8 mm nuts allow for secure, strain-free cable connection
  • Clear internal cable path for uncomplicated, neat cable access

Continuous Current 275 A
Mounting Style Panel-Mount (Surface Mount)
Cutout Diameter 52 mm (2-1/16″), Standard Instrument Cutout
Nut Size (Internal) 4.8 mm (3/16″), Captive Inserts
Brand BEP

BEP

Gewicht (ca.): 0.12 kg
