By BEP

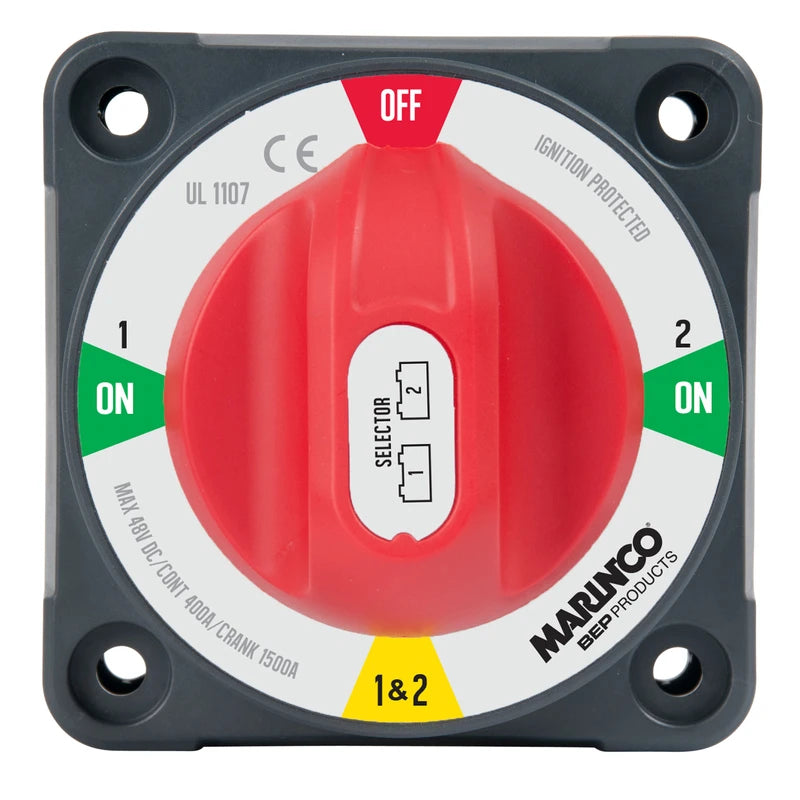

BEP Battery Switch 1/2/Both/Off, 400A

€119,41
€119,41
Tax included.

When the power requirements on board grow, you need a switch that can keep up. The BEP Pro Installer Battery Switch allows you to flexibly manage two battery banks – individually, in parallel, or completely disconnected. With 400 A continuous current and up to 1,500 A cranking current, it is designed for demanding onboard electrical systems up to 48 V.

Important: Selector switches of this design do not disconnect electronics from harmful voltage spikes during engine starting. Sensitive devices should therefore be protected by separate fuses or protective circuits. Note: Model 771-S replaces the previous model 721.
brand: BEP
Availability: Low stock
SKU: OB-BB-771-S-BEP
Product group:
category:
electrical system
BEP Batterieschalter 1/2/Both/Off
€119,41
€119,41

  • 400 A continuous rating and 1500 A cranking current – for high power requirements on board
  • Function 1–2–Both–Off: both battery banks can be switched individually or in parallel
  • Suitable for twin cables and standard mounting (Guest, Perko, Blue Sea) – easy installation
  • Connections for 2 x 10 mm cable lugs – secure, low-loss contact
  • Designed for up to 48 V DC – future-proof for modern onboard electrical systems

Series Pro Installer
Function 1 – 2 – Both – Off
Continuous Rating 400 A DC
Intermittent Rating 600 A DC
Cranking Rating 1,500 A DC
Voltage max. 48 V DC
Terminals 2 × 10 mm

BEP

Gewicht (ca.): 3.8 kg
