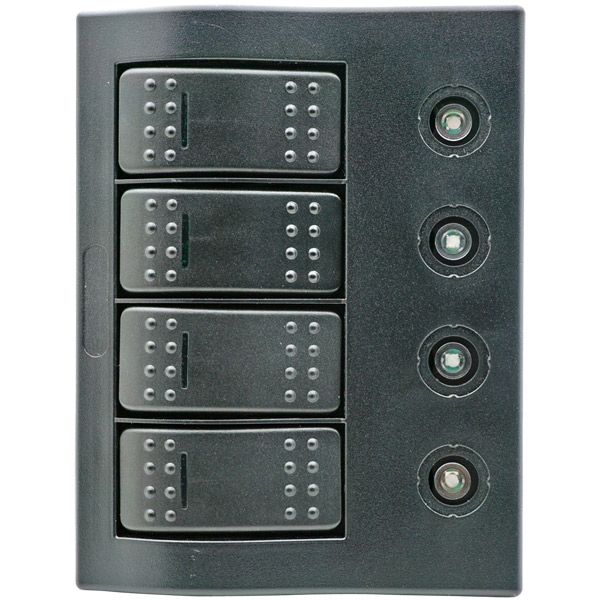

1852 Electrical panel with LED indicator lights, 3 automatic fuses and main switch
Order in the onboard power system in a minimal space: This compact switch panel from 1852 combines three fused toggle switches and one spring-return on/off switch in a ready-to-install housing. Thanks to built-in LED indicator lights, you can see at a glance which consumers are active – red light means out of operation, green light means in operation. With IP65 protection, the panel is splash-proof and therefore suitable for installation in the cockpit or in damp onboard areas.
Tip: When installing, make sure that the sealing lip rests cleanly on the cutout so that the IP65 protection is fully maintained. The supplied fuse values (5 A / 5 A / 10 A / 15 A) can be adjusted to other values in the range of 2–15 A if required.
Couldn't load pickup availability
- Two-color LED per switch - red/green indicator shows immediately if a circuit is active
- 3 rocker switches with integrated automatic fuses (2-15 A) - no separate fuse holder necessary
- Spring-return (On)/Off switch ideal for horn or other momentary functions
- Splash-proof according to IP65 - also suitable for cockpit installation
- Compact dimensions facilitate installation even in confined spaces
| Protection class | IP65 |
|---|---|
| Number of toggle switches | 3 |
| Additional switch | 1 × (On)/Off with return spring |
| Automatic fuses | 3 × built-in, 2–15 A each |
| LED indicator | Red = out of operation, Green = in operation |
| Width | 100 mm |
| Height | 128 mm |
| Hole spacing width | 82 mm |
| Hole spacing height | 107 mm |
1852
Gewicht (ca.): 0.57 kg
