By WhisperPower

WhisperPower - WP Modular Battery Remote Switch,

€344,80
€344,80
Tax included.

Reliably separate your battery banks – from wherever you want. The WP Modular Remote Battery Switch is a magnetic high-current latching contactor for continuous direct currents up to 500 A, which can be conveniently operated via a small switch on the control panel or automatically via a battery monitor. This way, the heavy technology stays in the engine room, and the operation comes to you.

Tip: For lithium batteries, connect the control input directly to the BMS output – this way, the system takes over protection fully automatically, without additional relays or fuse logic.
brand: WhisperPower
Availability: Low stock
SKU: OB-BB-50214734
Product group:
category:
electrical system
PSSPSS O-ring kit for 1 1/2" shaft
PSS O-Ring Kit für 1 1/2' Welle

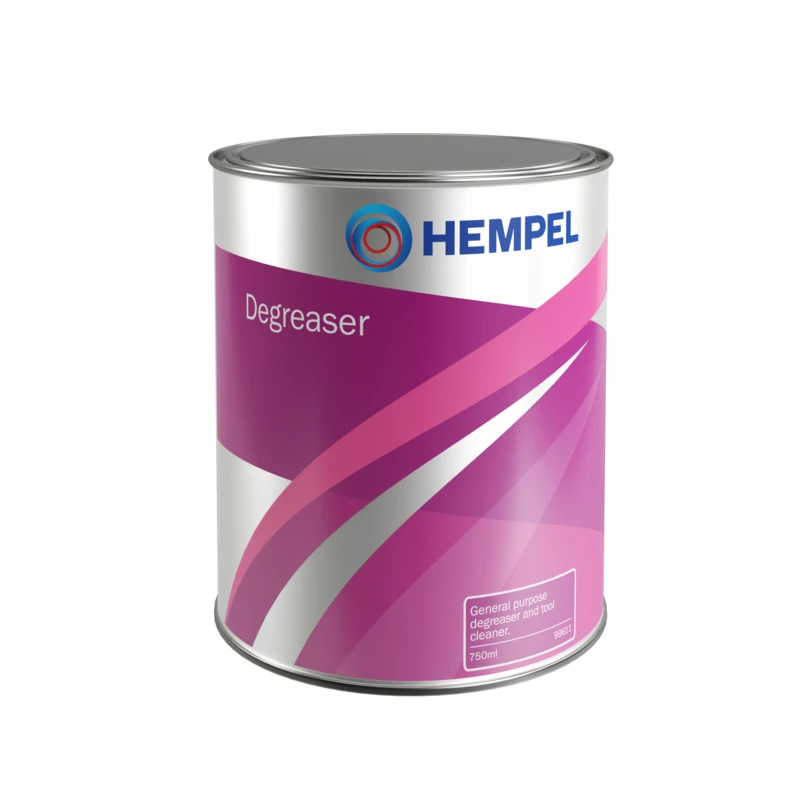

Hempel's Degreaser 0
HempelHempel's Degreaser 0.75
WhisperPower - WP-Modularer Batterie-Fernschalter
€344,80
€344,80

  • Processes continuous DC currents up to 500 A at 24 V – designed for high onboard power loads
  • Magnetic latching contactor: maintains switch position without continuous power consumption
  • Remote control via small panel switch – main switch no longer needs to be in the battery compartment
  • Automatable: can be directly controlled by a battery monitor or a lithium battery as discharge and overcharge protection
  • Modular design allows flexible installation in the engine room or battery compartment

Type Modular DC Battery Remote Switch
Switching Principle Magnetic high-current latching contactor
Rated Current 500 A (continuous)
Rated Voltage 24 V DC
Control External switch (e.g., control panel), battery monitor, or lithium BMS
Installation Location Engine room or battery compartment
Application Battery main switch, discharge/overcharge protection

WhisperPower
